Step 3 - Next, with the provided two wire nuts, splice the included 9.5” power
cable and the power cable that the RV Manufacturer installed. Connect
the black wire to the ground wire from the RV, and the red wire to the power
wire from the RV. Ensure that the cables are secure to the wire nuts before
continuing. If the power switch was already installed from the OEM discard the
included wall plate and power switch and continue to Step 13.
Step 4 - Choose a location to install the supplied
Wall Plate with Power On/ Off switch. When
selecting a location, remember that a +12VDC
power cable will need to be run from the
Gateway to the switch.
Step 5 - For a wall or panel mount, drill or use
a hole saw to create a 1¼” hole. Pull the power
cable from the Gateway and the RV’s power
wires through the wall or panel.

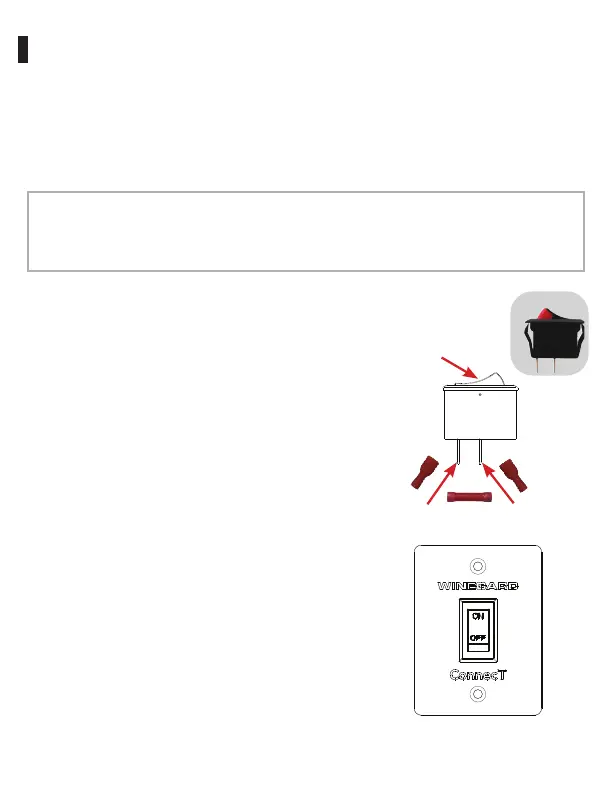

Step 6 - Be sure the switch is in the OFF (O)
position before continuing. Slide the power
switch into the wall plate.
Step 7 - Connect the +12V power wire from the
vehicle to a small red terminal insulator. Crimp
the connector.
Step 8 - Connect this small red terminal
insulator to the isolated spade of the power
switch.
Step 9 - Connect the red wire from the Gateway
to the other small red terminal insulator. Crimp
the connector.
Step 10 - Connect this small red terminal
insulator to the middle spade on the switch.
Installation (continued)
Note: If the power wire was not installed, you will need to install your own power
wire. It is recommended to use 18-guage wire, no longer than 50 feet with a
dedicated 12VDC circuit and a 3A fuse. See Air360 Plus installation manual for
more information.
On/Off rocker
switch (shown in
OFF Position)
+12V
from
vehicle
+12V to
Gateway
Barrel crimp splice
ON
Power switch into
wall plate
5
