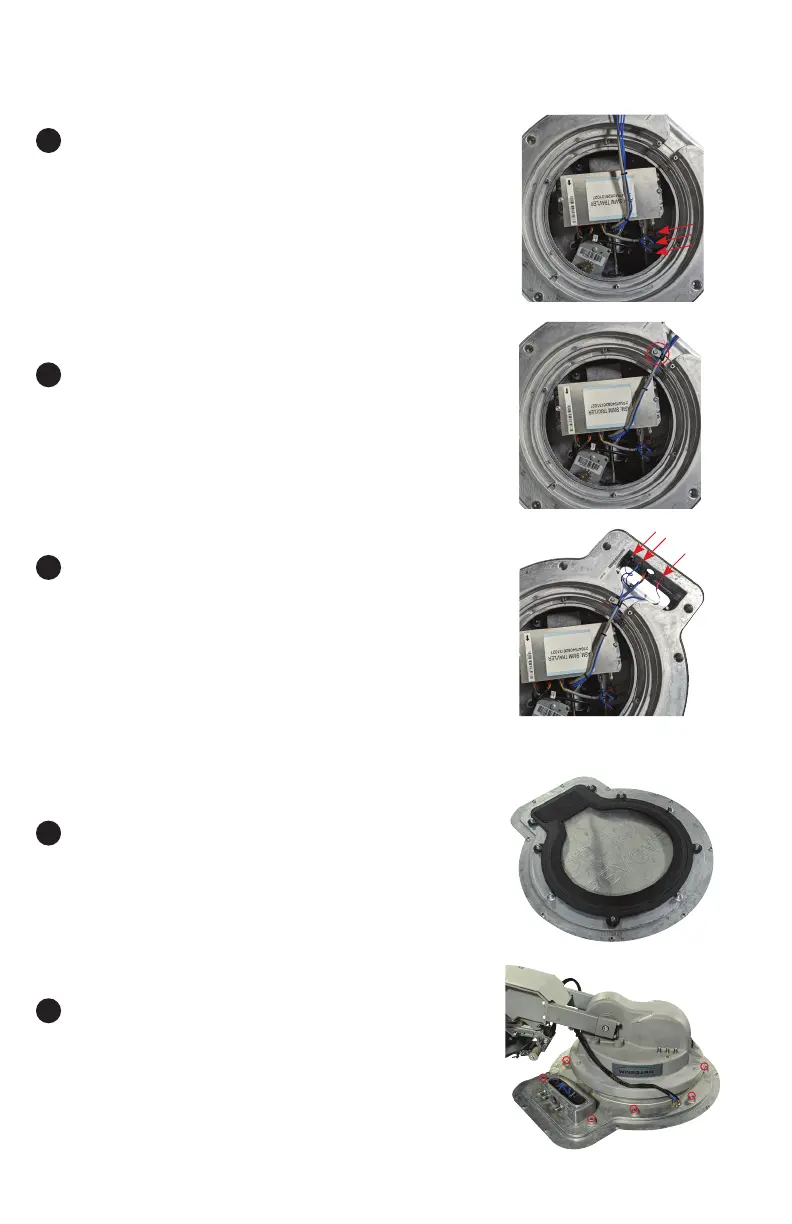

Securing Wrap Cable
Seat coax ports in the following order from top to
bottom.
• Black/Red
• Blue/Blue
• Blue/Black
Secure Ports in place using the nuts removed in
“Removing the Turret” section step 4.
Secure p-clip to turret.
Seat coax ports at base in the following order from
left to right.
• Blue/Black
• Blue/Blue
• Blue/Red
Secure ports in place using the nuts removed in
“Removing the Turret” section step 4.
Reinstalling the Turret
Ensure gasket and moisture barrier are aligned
properly on transition plate.
Place turret back on transition plate and secure
using the 9 screws
1
3
1
2
2
