Winegard WB-2000 - Appendix A Winegard HDTV Wiring Diagram; A.1 Dish Network - 1 or 2 HD or Standard Receivers

33
SAT.
ANTENNA
IN
SAT.
RECEIVER
OUT
FACTORY
USE
ONLY
HD
CTRL 1
HD
CTRL 2
COMM. OUT 1
TO SAT.
ANTENNA
DC IN
DC OUT
TO SAT
ANTENNA
BLK/RED

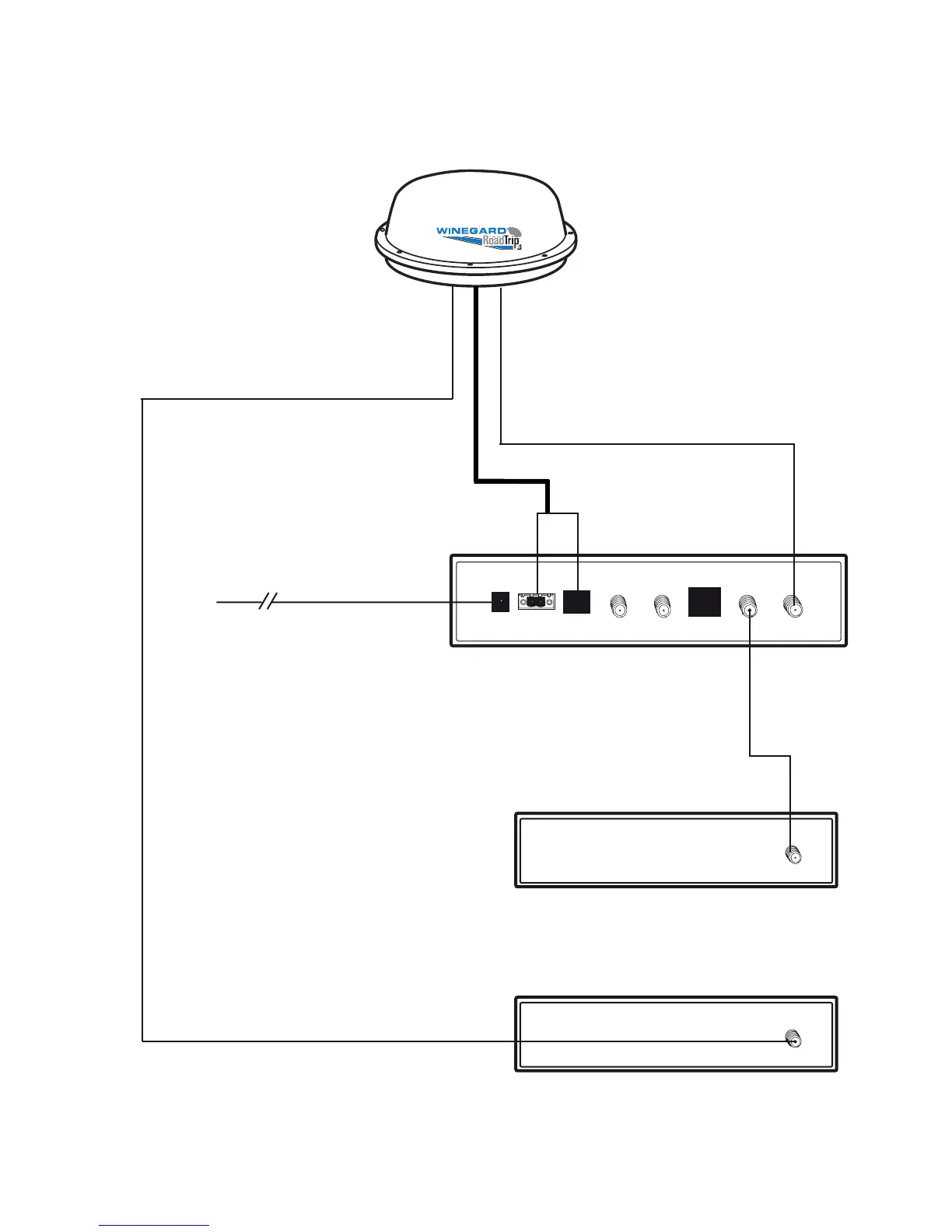

Appendix A Winegard HDTV Wiring Diagram
A.1 Dish Network - 1 or 2 HD or Standard Receivers
RoadTrip or Movin’ View Antenna
Primary Coax Cable Out
Data / Power
Cable Bundle
Modular Data Cable
12VDC Power Cable
(Black / Red)
SATELLITE IN
Winegard HD Satellite Interface
Coax Out to
Primary Receiver
Primary Dish Network HD Receiver
Note: Refer to your receiver’s manual for television
connection instructions.
Secondary Coax Cable Out
SATELLITE IN
Secondary Dish Network Receiver (optional)
110 V Power
Note: May be standard or High Definition Receiver
