3. Mechanical connection
Danger
DANGER! Risk of fatal injury due to live components.
Disconnect the machine from the mains and check that machine is de-energised.
 Turn off the on-site mains power switch and secure it against being switched back on
unintentionally.

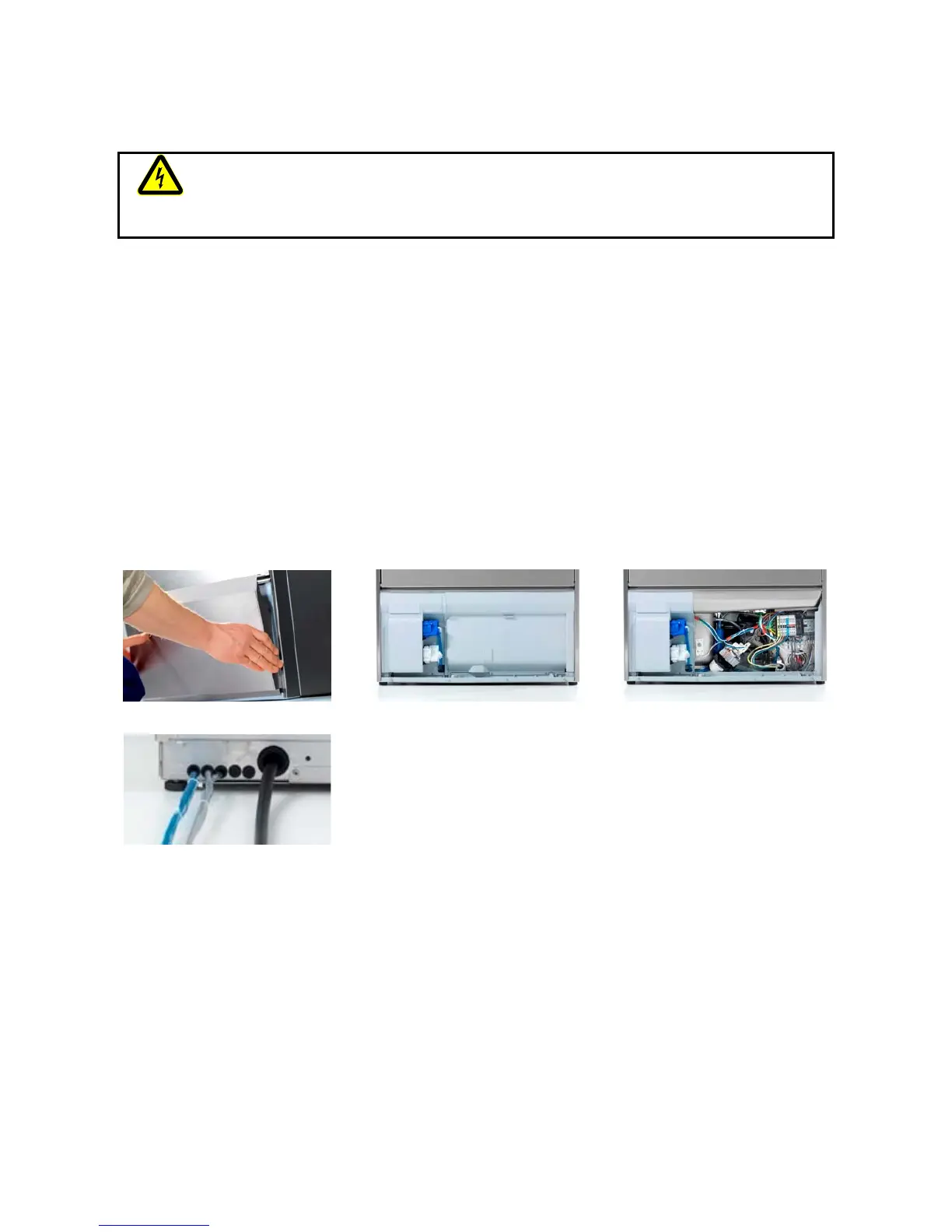

 Remove the front panel from the machine's base frame. Remove the separation wall for the electrical
installation space (Figures 1-3)
 If there is a Winterhalter dosing unit fitted, remove it and isolate the electrical connections.
 Install the competitor's dosing unit. Any fixtures, mounting equipment etc. must be provided by the
customer.
 Dosing nipples in the Winterhalter machine are clearly indicated and identified later in these
instructions.
 On the rear of the machine's base frame, there are places for routing tubes from the external
competitor's dosing unit to the machine's dosing nipple, together with the electrical control cables for
the competitor's dosing unit (Figure 4).
Figure 1 Figure 2 Figure 3
Figure 4
