Commissioning | 5 | English
Operating instructions UC-Serie | 89014383; Version 2 | 29

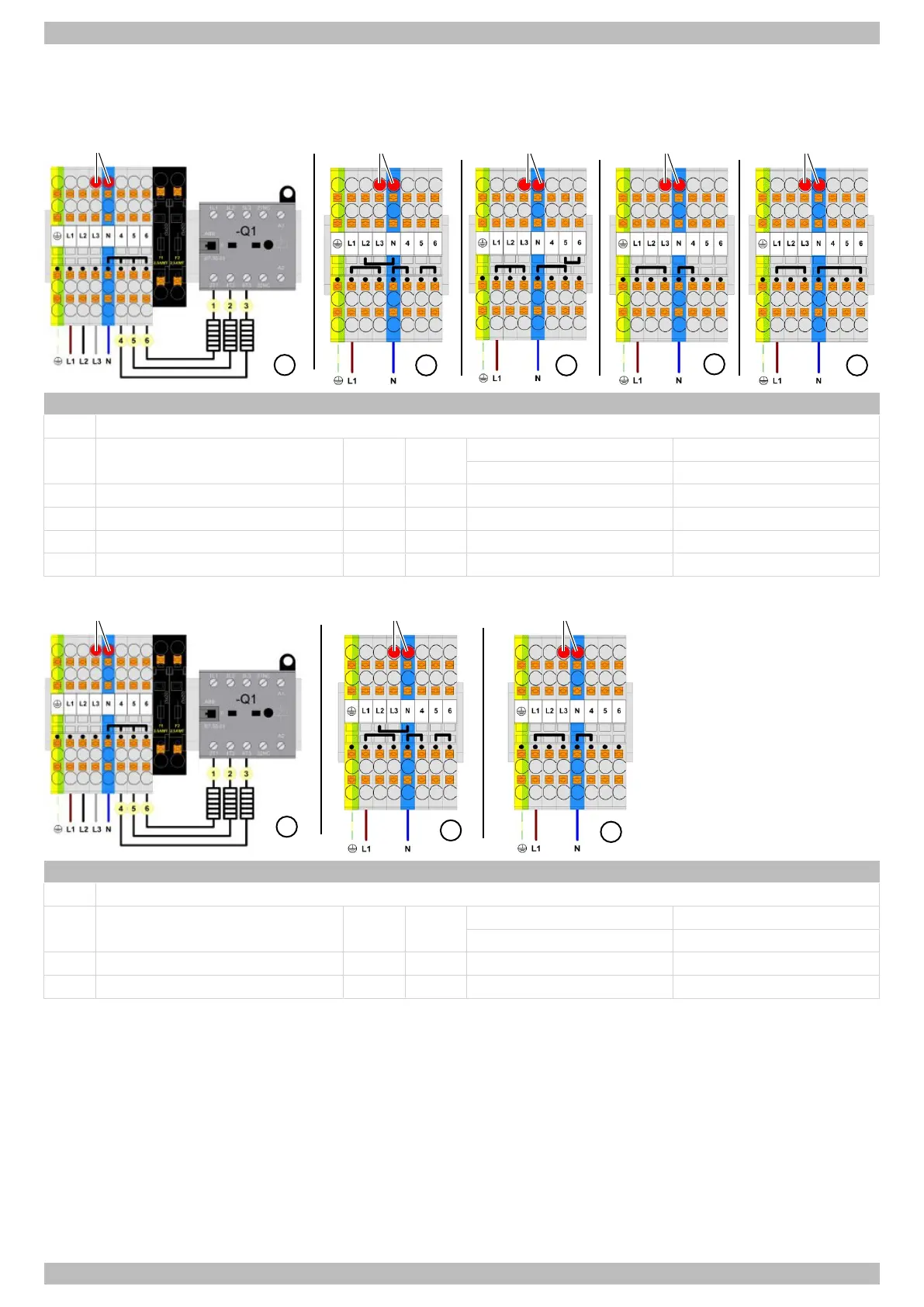

Connection diagram
Note:P545 (interlock) is configured by the service technician during menu-guided set-up.
Mains cable with star circuits
1
1 1 1 1
2
3 4
5
6
Item Voltage Parameter (P545) Fuse (A)
1 Tank heating element connection
2 380 V - 415 V 3N~ PE 0 16
1 10
3 220 V - 240 V N~ PE 1 16
4 220 V - 240 V N~ PE 1 20
5 220 V - 240 V N~ PE 1 13
6 220 V - 230 V N~ PE 2 10
Mains cable for Australia
1
1
1
2
3
4
Item Voltage Parameter (P545) Fuse (A)
1 Tank heating element connection
2 380 V - 415 V 3N~ PE 0 20
1 15
3 220 V - 240 V N~ PE 1 20
4 220 V - 240 V N~ PE 1 15
