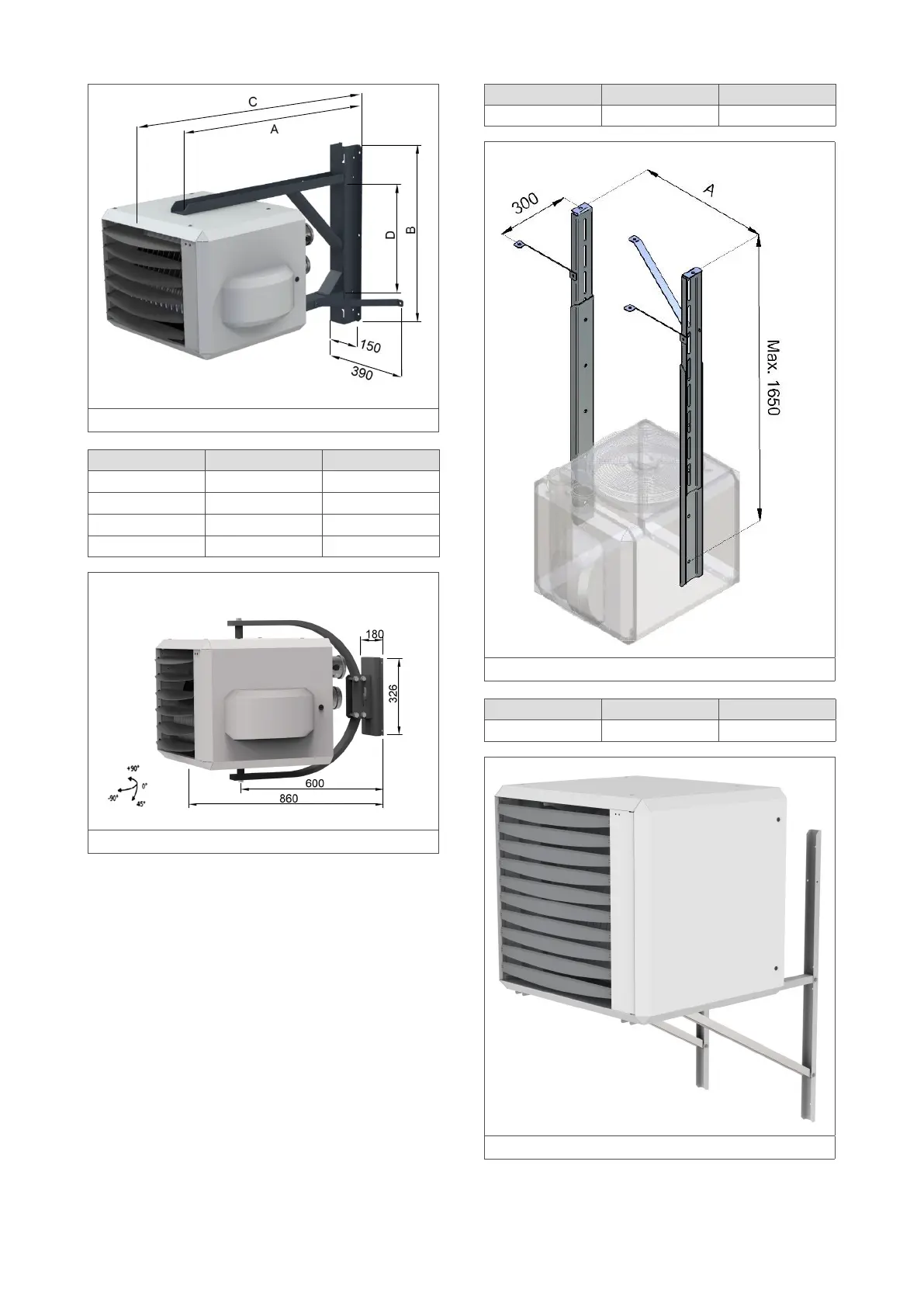

9INSTALLATION MANUAL AIR HEATER TYPE XR+
Figure 6 - Wall support (standard)
Dimension XR10+ - XR30+ XR40+ - XR60+
A (mm) 550 665
B (mm) 640 815
C (mm) 830 990
D (mm) 540 720
Figure 7 - Wall support (turnable)
*can be rotated horizontally or forward.
Model(s) Wall support Art. Nr.
XR10+ - XR60+ Vertical suspension kit GA8645
Figure 8 - Vertical suspension kit
Dimension XR10+ - XR30+ XR40+ - XR60+
A (mm) 540 720
Figure 9 - Suspension adapter GA8622
