Wire wizard TORCH WIZARD - Electrical Schematic (9-Pin)

12
TORCH WIZARD INSTALLATION & OPERATION MANUAL

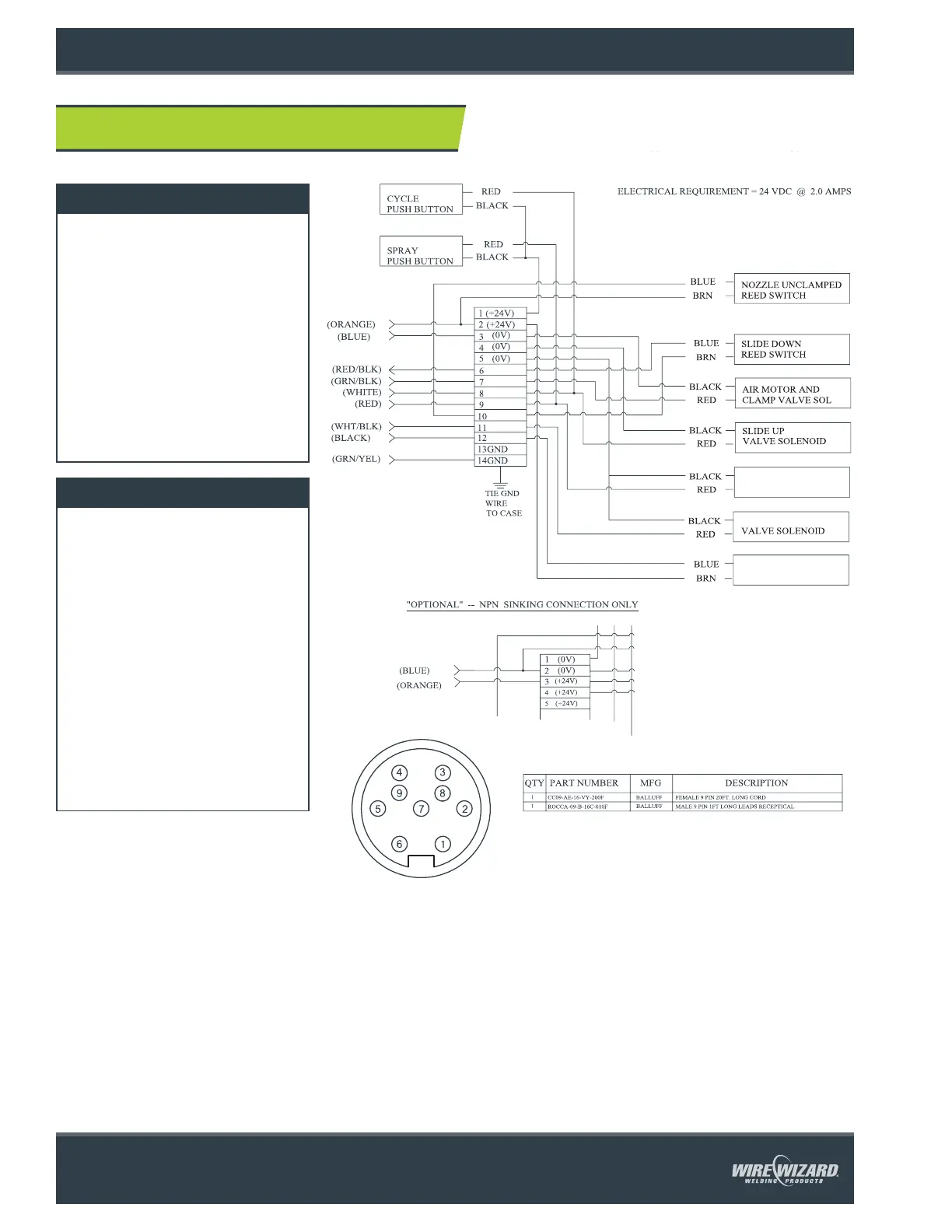

5.0 ELECTRICAL SCHEMATIC (9-PIN)
SEQUENCE OF OPERATIONS*
Model EL-NCS-20 (without wire cutter)
1. Verify signal at pin #3 is On (Home)
2. Move torch to Cleaner Position
3. Energize pin #4 - Motor and Clamp On
4. Verify signal at in #3 is O - Clamped
5. Short Delay
6. Energize pin #5 - Vert Slide Up
7. Short dwell for torch clean
8. De-energize pin #5 - Vert Slide Down
9. Short Delay
10. De-energize pin #4 - Unclamp and Motor O
11. Verify signal at pin #3 is On (Home)
12. Cycle Complete
SEQUENCE OF OPERATIONS*
Model EL-NCS-C-20 (with wire cutter)
1. Verify signal at pin #3 is On (Home)
2. Energize pin #8 - Wire Cutter Advance
3. Short Dwell
4. De-energize pin #8 - Wire Cutter Retract
5. Move torch to Cleaner Position
6. Energize pin #4 - Motor and Clamp On
7. Verify signal at in #3 is O - Clamped
8. Short Delay
9. Energize pin #5 - Vert Slide Up
10. Short dwell for torch clean
11. De-energize pin #5 - Vert Slide Down
12. Short Delay
13. De-energize pin #4 - Unclamp and Motor O
14. Verify signal at pin #3 is On (Home)
15. Cycle Complete
1. (ORANGE) - +24 VDC
2. (BLUE) -  VDC
3. (RED/BLK) - NOZZLE
UNCLAMPED/SLIDE DOWN
4. (GRN/BLK) - AIR MOTOR/CLAMP,
ACTIVATION OF PIN #9
5. (WHITE) - SLIDE UP
. (RED) - NOT USED
. (GRN/YEL) - GROUND
. (WHT/BLK) - WIRE CUTTER ADVANCE (IF APPLICABLE)
. (BLACK) - NOT USED
NOT USED
WIRE CUTTER (OPT.)
NOT USED
