TORCH WIZARD INSTALLATION & OPERATION MANUAL
wire-wizard.com
Evacuation
Chute
EL-NCS-EC
Replaces catch pan
Double Flute
Reamer Blades
Single Flute
Reamer Blades
TITANIUM NITRIDE
TiN Coated for
Maximum Durability
Stand for Tool
Center Point
EL-NCS-TCP-F-S
Excludes touch
plate and point
Tool Center
Point
Adapter Mount
EL-NCS-TCP-F-R
Excludes touch
plate and point
Testing and
Diagnostic Box
EL-NCS-TB
29.5" (749 mm)
Stand for
Torch Wizard®
EL-NCS-STAND
Order EL-NCSP-STAND
for AP Model unit and
wire cutter

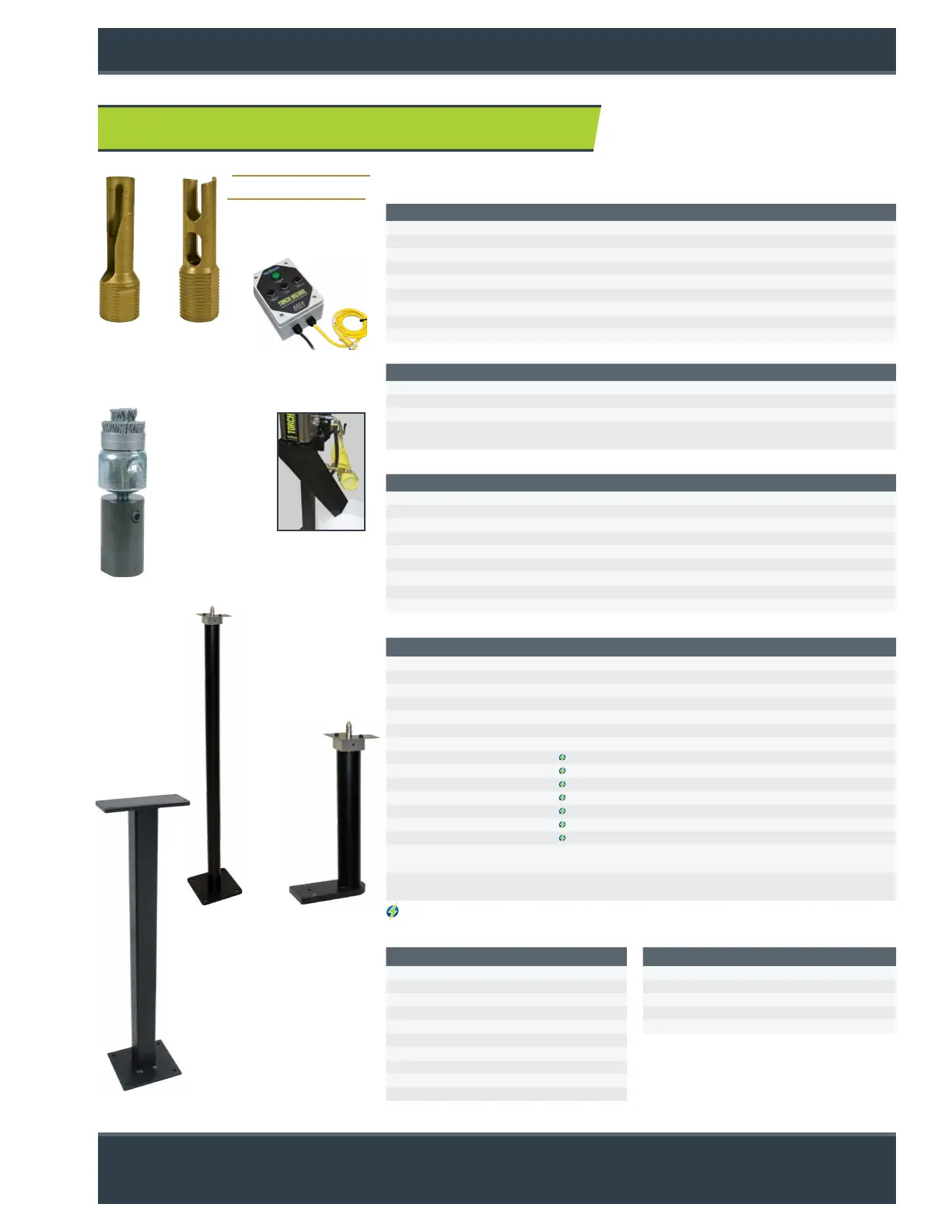

7.0 OPTIONAL COMPONENTS & ACCESSORIES
Nozzle Brush
EL-NCS-BRUSH
For aluminum
welding
applications
Mandrel for
Nozzle Brush
EL-NCS-BRUSH-M
20 . (7.6 m) power/control cable included. The
reamer bit required is based on the I.D. of the gas
nozzle being used.
BLUE MAGIC®
ANTI-SPATTER
Part No. Description
EAS1000-C32 32 oz Spray Bottle
EAS1000-C1 1 gal Bottle
EAS1000-C5 5 gal Container
EAS1000-C 55 gal Drum
EAS1000-CT 275 gal Bulk Tote
EAS1000-C-CON-1L 1 l (33 oz) Concentrate
EAS1000-C-CON-5 5 gal Concentrate
EAS1000-C-CON 55 gal Concentrate
EAS1000-DP Manual Drum Pump (55 gal)
EAS1000-DW Drum Wrench (55 gal)
BLUE CHILL®
ANTI-SPATTER
Part No. Description
EAS1000-BC32 32 oz Spray Bottle
EAS1000-BC1 1 gal Bottle
EAS1000-BC5 5 gal Container
EAS1000-BC 55 gal Drum
EAS1000-BCT 275 gal Bulk Tote
TORCH WIZARD® OPTIONAL ACCESSORIES
EL-NCS-STAND 29.5" (749 mm) Stand (custom heights available) for EL-NCS models
EL-NCS-FRL-14 Filter/Regulator/Lubricator
EL-NCS-TB-ADR-16 Testing and Diagnostic Box for 20 and 20-SC models (9-pin)
EL-NCS-TCP-F-S Stand for Tool Center Point — 44.9" H (1,141 mm) from base to point
EL-NCS-TCP-F-R Tool Center Point Mount (attaches to reaming station stand)
EL-NCS-WCS-12 Integrated Wire Cutter (included on AC models)
EL-NCS-WCS-SA-12 Stand Alone Wire Cutter
EL-NCS-EC Evacuation Chute for High Volume Applications
EL-NCS-CC9-20-3 9 Pin, 20 Power/Control Cable
MODELS WITH INTEGRATED ETHERNET
EL-NCS-AE-20 Reaming Station with Ethernet and integrated anti-spatter spray
EL-NCS-ACE-20 Reaming Station with Ethernet, integrated anti-spatter spray and wire cutter
EL-NCS-AE-20-SC Reaming Station with Ethernet, self-cleaning air blast, integrated anti-spatter spray
EL-NCS-ACE-20-SC
Reaming Station with Ethernet, self-cleaning air blast, integrated anti-spatter spray and
wire cutter
TORCH WIZARD® ROBOTIC NOZZLE CLEANING STATIONS
STANDARD MODELS
EL-NCS-A-20 Reaming Station with integrated anti-spatter spray
EL-NCS-AC-20 Reaming Station with integrated anti-spatter spray and wire cutter
EL-NCS-A-20-SC Reaming Station with self-cleaning air blast and integrated anti-spatter spray
EL-NCS-AC-20-SC Reaming Station with self-cleaning air blast, integrated anti-spatter spray and wire cutter
EL-NCS-A-TA-20 Reaming Station for tandem arc torches with integrated anti-spatter spray
EL-NCS-20 Reaming station without anti-spatter for aluminum; no wire cutter
EL-NCS-C-20 Reaming station without anti-spatter for aluminum; with wire cutter
EL-NCS-20-SC Reaming station with self-cleaning air blast for aluminum; no wire cutter
EL-NCS-C-20-SC Reaming station with self-cleaning air blast for aluminum; with wire cutter
Blades compatible with PowerBall® Torch Consumables
TORCH WIZARD® REAMER BLADES
Part No. Description Diameter Flutes Thread Height
EL-NCS-13MM Reamer Blade 13 mm 2 Female 2.558"
EL-NCS-TL-13MMF Reamer Blade 13 mm 1 Female 2.687"
EL-NCS-TS-13MMF Reamer Blade 13 mm 1 Female 2.433"
EL-NCS-15MM Reamer Blade 15 mm 2 Female 2.558"
EL-NCS-17MM-L Reamer Blade (ID: .402") 17 mm 2 Female 3.564"
EL-NCS-17MM-1-L Reamer Blade (ID: .329") 17 mm 2 Female 3.564"
EL-NCS-17MM-A Reamer Blade (ID: .467") 17 mm 2 Female 2.634"
EL-NCS-500 Reamer Blade 1/2" 2 Female 2.558"
EL-NCS-TL-50F Reamer Blade 1/2" 1 Female 2.687"
EL-NCS-TS-50F Reamer Blade 1/2" 1 Female 2.433"
EL-NCS-625 Reamer Blade 5/8" 2 Female 2.558"
EL-NCS-TL-62F Reamer Blade 5/8" 1 Female 2.687"
EL-NCS-TS-62F Reamer Blade 5/8" 1 Female 2.433"
EL-NCS-750 Reamer Blade 3/4" 2 Female 2.558"
EL-NCS-BRUSH-M
Nozzle brush with mandrel for
aluminum welding applications
5/8" — Female —
EL-NCS-BRUSH
Replacement nozzle brush for
aluminum welding applications
5/8" — Female —
