TORCH WIZARD INSTALLATION & OPERATION MANUAL
2.2 PNEUMATIC CONNECTION
We recommend “Push-to Lock” style fittings on the Torch Wizard® for supplying air to
the unit. Use an air line with a 5/16" outside diameter to supply air to the Torch Wizard®.
There is just one location that supplies air to the unit (refer to Fig. 3).
Air Supply Requirements
Air must be filtered and regulated with a Filter/Regulator/Lubricator with auto-drain
functionality and lubricated.
Use an Air Supply Line with an inside diameter of 3/8", connect to the 1/4" N.P.T.
female inlet located on the side of the Reamer.
Minimum 80 psi recommended at 16 CFM (5.0 – 7.0 BAR at 450 LPM) at the
Reamer during operation.
Lubricator Adjustment: Set the lubricator to deliver one drop of pneumatic oil
for every two minutes of operation. Do not over-lubricate.
2.3 ELECTRICAL CONNECTION
The complete sequence of the Torch Wizard® Nozzle Cleaning Station must be started and controlled by a robot controller,
programmable logic controller (PLC), or other superior control system.
Electrical Draw: 0.5 Amps
See Electrical Schematic on page 12 for detailed wiring information

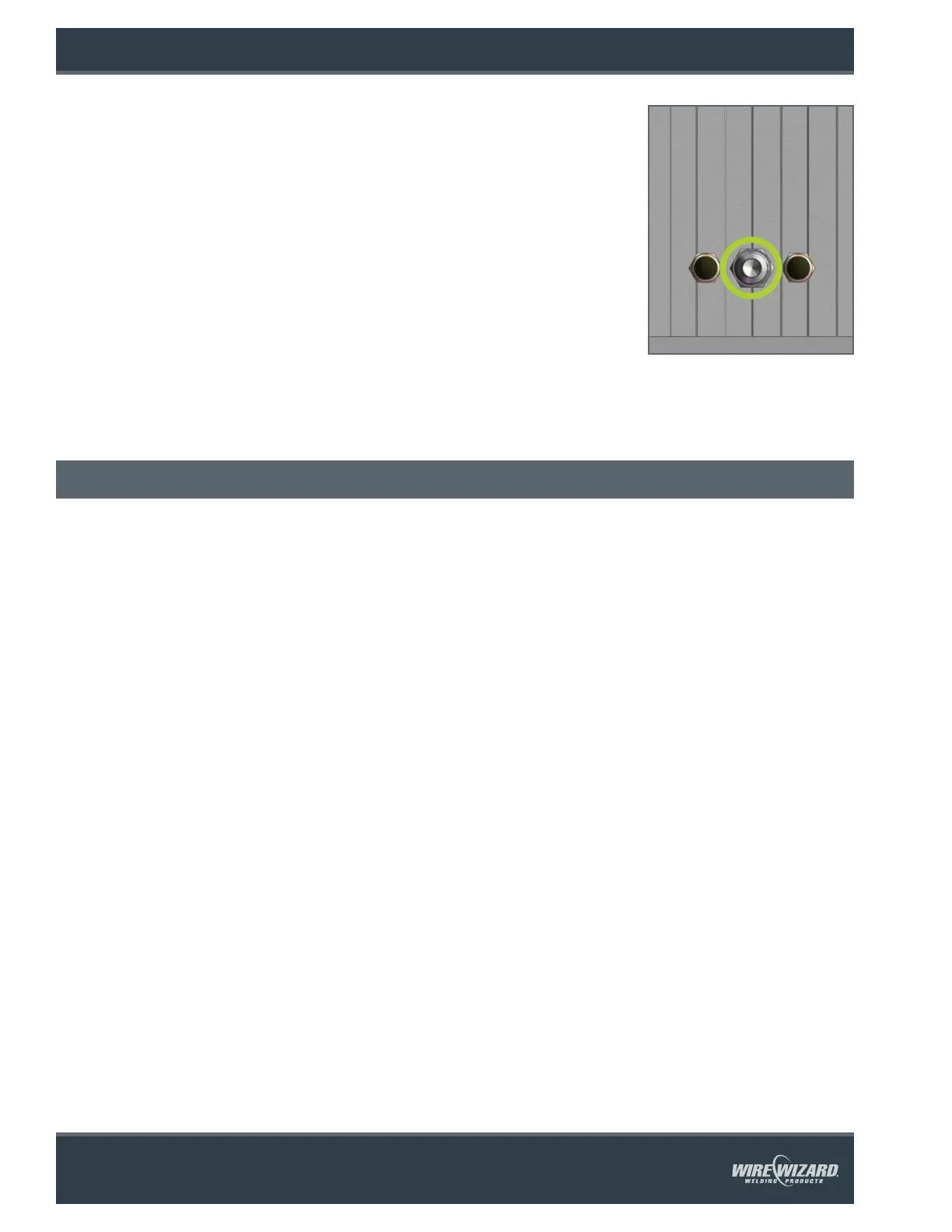

Figure 3
Use of unfiltered, dirty air may result in damage to the unit and will void the warranty.
