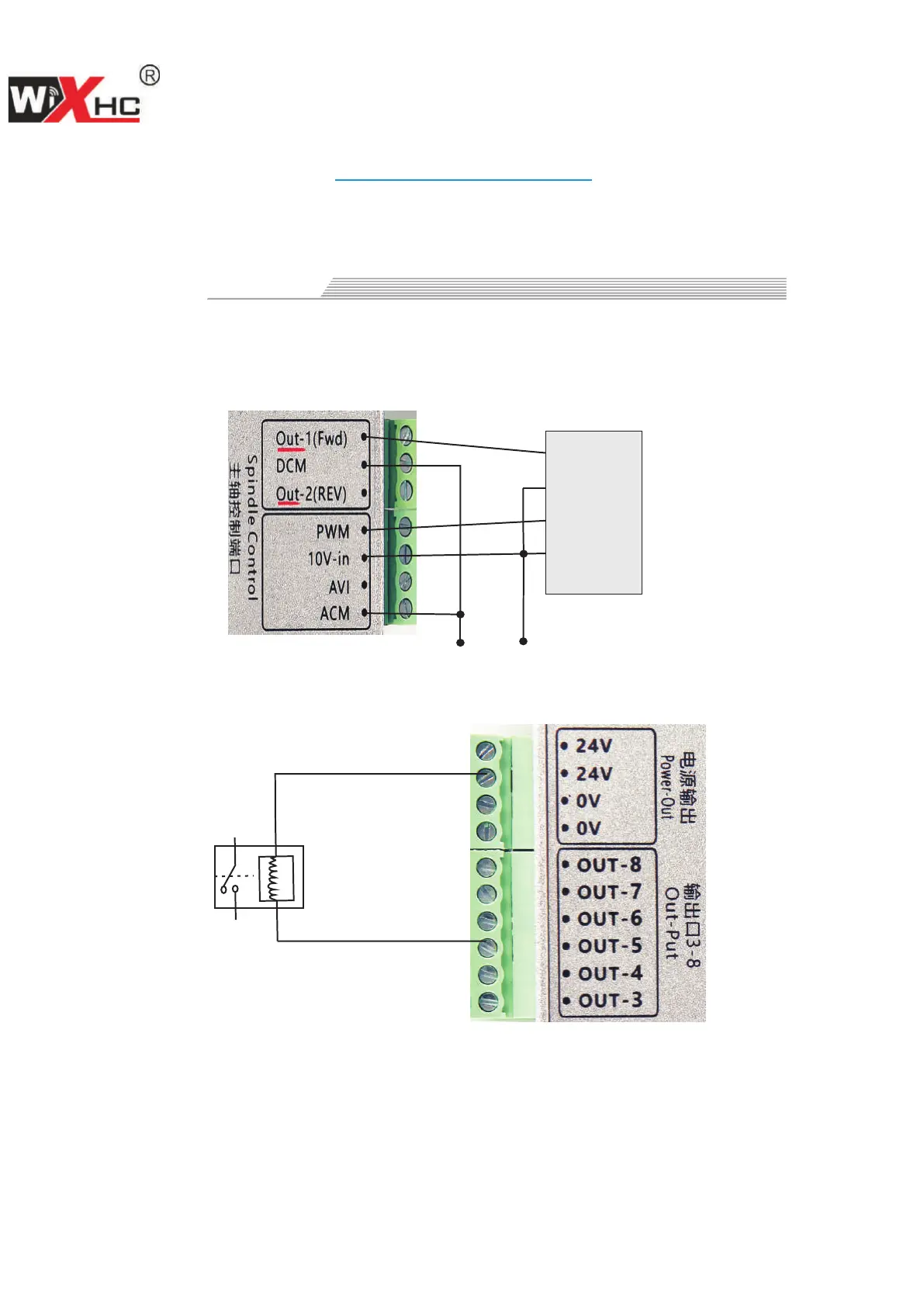

Wiring
Spindle Control:Stepper/Servo Drive
stepper or servo drives
PUL+
PUL-
DIR+
DIR-
0V
NO.4：
Relay
Output active low,24v/50 mA
Output Relay Interface：OUT3 to OUT8 Relay Interface
5V5V
ChengDu XinHeCheng Technology Co.,Ltd
www.cdxhctech.com
5V and 0V please connect
to our breakout board 5V and
0V
<14>
