WiXHC MACH3 MK-V Series User Manual

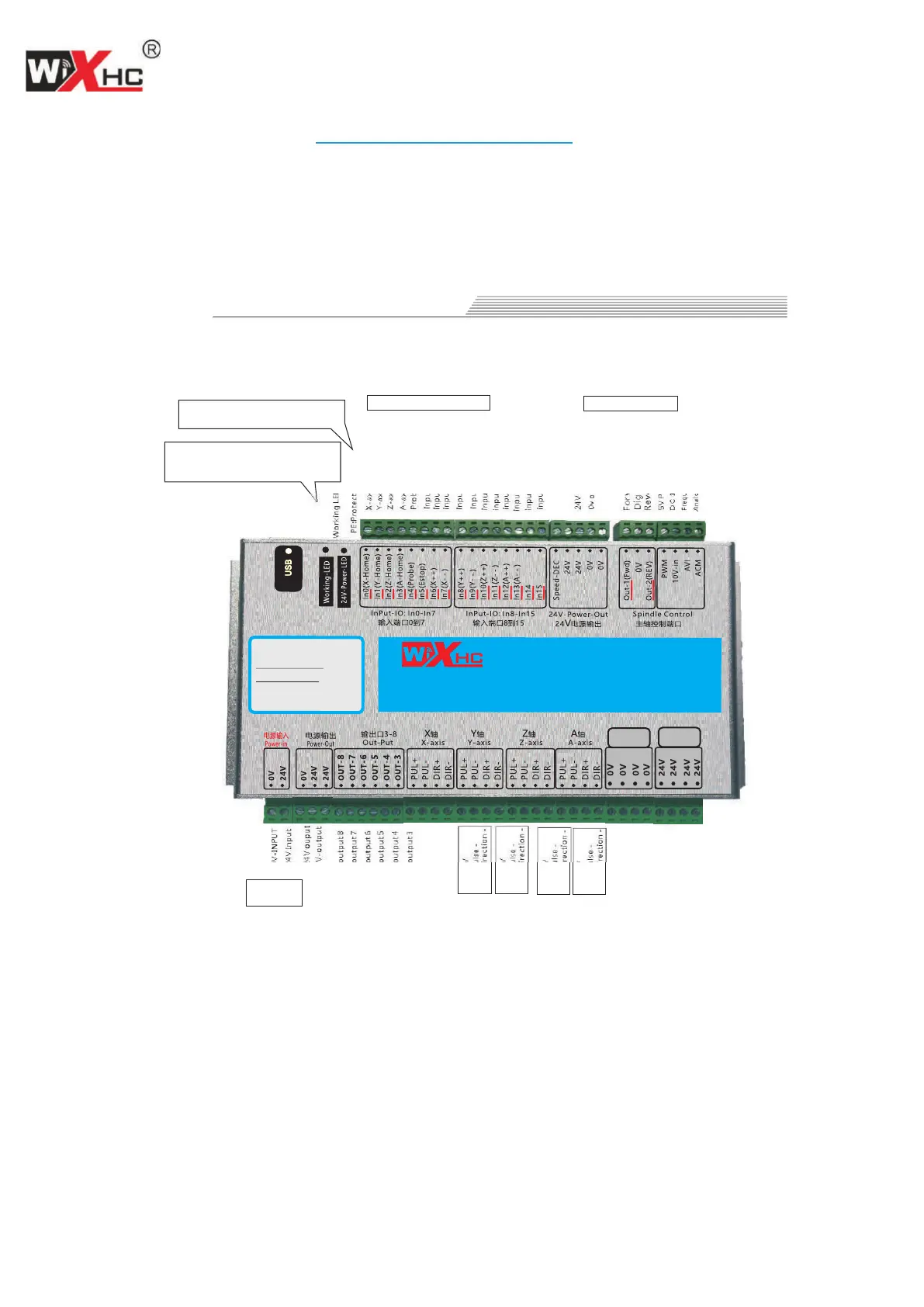

Signal Description
0V-INPUT
power In
24V Input
output 8
Direction -
Pulse -
5V
Y-axis
0V-output
output 7 output 6 output 5 output 4 output 3
output 1
Direction -
Pulse -
5V
Z-axis
Direction -
Pulse -
5V
A-axis
Direction -
Pulse -
5V
X-axis
Digital Ground
Forward:
16 Input port
X-axis home(input-#0)
Probe z(input-#4)
5V PWM output
Analog ground
DC 10V Input
Frequency Control Input：0-10V
input -#5
Working LED
0v ouput
24V ouput
Y-axis home(input-#1)
Z-axis home(input-#2)
A-axis home(input-#3)
input -#6
input -#7
input -#8
input -#9
input -#10
input -#11
input -#12
input -#13
input -#14
input -#15
Spindle control
PE:Protected GND
To increase the Anti-interference,
please contact the machine bed PE
Flash: that is working properly,
Slow flash: driver is not installed properly
Off: The USB connection is not normal
output 2
Reversion:
24V ouput
US
B
M
O
T
IO
N C
A
RD
model:MK4-V
System:MACH3
QC:01
2016-9-13
USB 4-axis Card
电源0V
电源24V
ChengDu XinHeCheng Technology Co.,Ltd
www.cdxhctech.com
