Wolf 30 - Page 11

Pro Wall Hood Installation 11
wolfappliance.com/specs
DUCTWORK INSTALLATION
THROUGH ROOF
22" (559)
DEPTH OF HOOD
30" (762) TO 36" (914)
COUNTERTOP
TO BOTTOM OF
HOOD
10" (254)
HEIGHT OF HOOD
NOTE: 10" (254) ROUND TRANSITION SHOWN IN VERTICAL DISCHARGE APPLICATION
WITH IN-LINE OR REMOTE BLOWER. REFER TO INSTALLATION INSTRUCTIONS FOR
HORIZONTAL DISHCARGE.

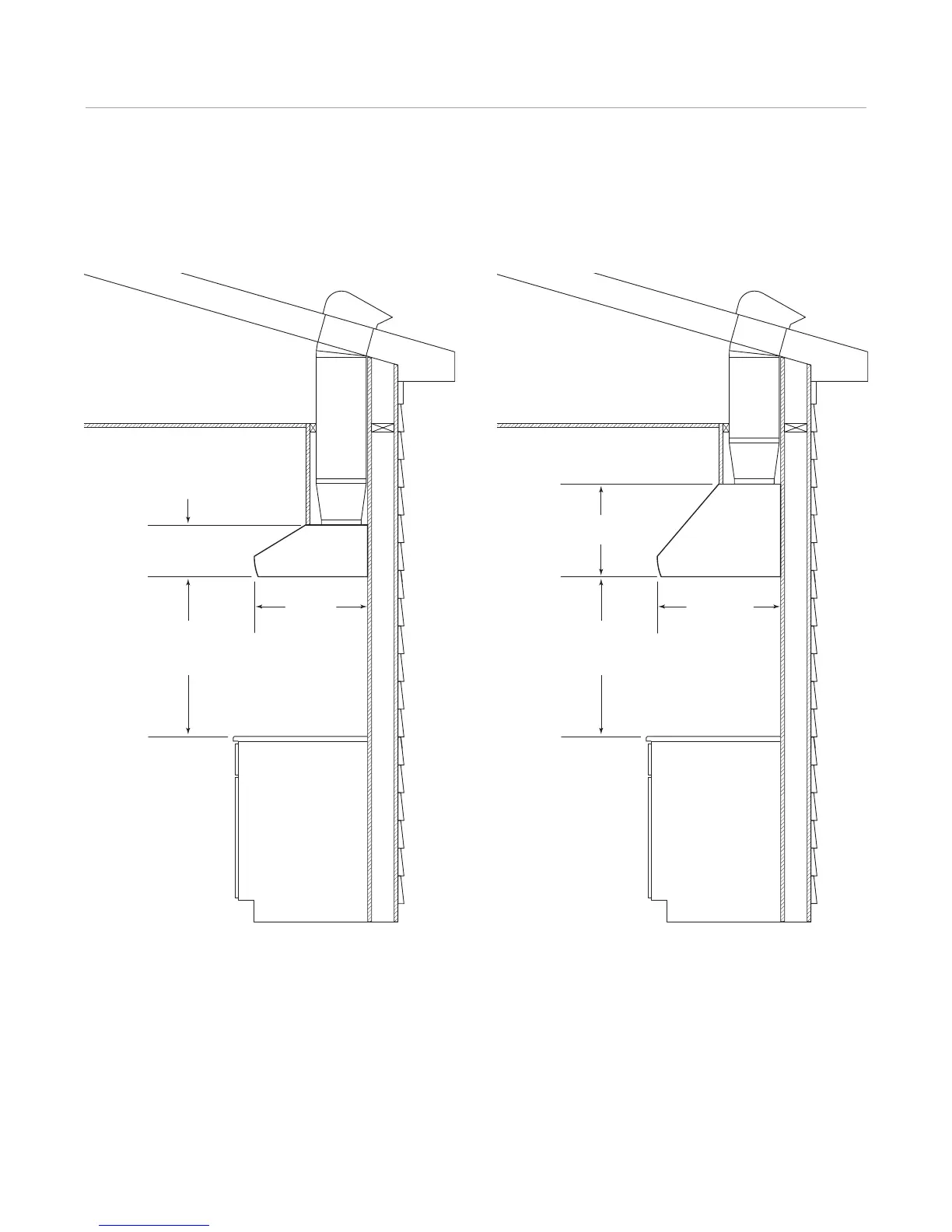

Install Ductwork
LOW-PROFILE WALL HOODS
24" (610) OR
27" (686)
DEPTH OF HOOD
NOTE: HORIZONTAL DISCHARGE REQUIRES AN ACCESSORY KIT.
18" (457)
HEIGHT OF HOOD
DUCTWORK INSTALLATION
THROUGH ROOF
30" (762) TO 36" (914)
COUNTERTOP
TO BOTTOM OF
HOOD
24" AND 27" DEEP WALL HOODS
