Component Access
CSO24 and CSO30 (SWS #13508346)
4-9
#9001333 - Revision A - August, 2014
Climate (Exhaust) Temperature Sensor Removal
To remove the climate temperature sensor, the top and
back panel will need to be removed first, then (See
Figure 4-19):
1. Disconnect sensor’s electrical leads from main con-
trol board at the back of appliance.
2. Extract sensor mounting screw from back of top
exhaust duct, then pull sensor from exhaust duct.
Slider and Valve Coupling Removal
To remove the slider and valve coupling, the top and
back panel, stepping motor and stepping motor retainer
will need to be removed first, then (See Figure 4-20):
1. Extract front right and center duct mounting screws.
2. Slide top exhaust toward the back of appliance until
all of retaining feet line up with their respective
notches in the top of the appliance, then lift up.
3. Pull slider from bottom square part of the coupling.
4. Spin coupling clockwise until it hits the leg support,
lining up the tab on the coupling with the notch in the
exhaust duct, then lift out of hole.
Top Exhaust Duct Removal
To remove the exhaust duct, the top and back panel will
need to be removed first, then (See Figure 4-19):
1. Disconnect electrical leads from the stepping motor.
NOTE: The stepping motor, retainer, slider and
valve coupling do not need to be removed in order to
remove the top exhaust duct.
2. Disconnect exhaust temperature sensor.
3. Pull reed switch (door magnet sensor) from pocket in
front left of top duct.
4. Extract screws under the control panel.
5. Extract front right and center duct mounting screws.
6. Slide top exhaust toward the back of appliance until
all of retaining feet line up with their respective
notches in the top of the appliance, then lift up.

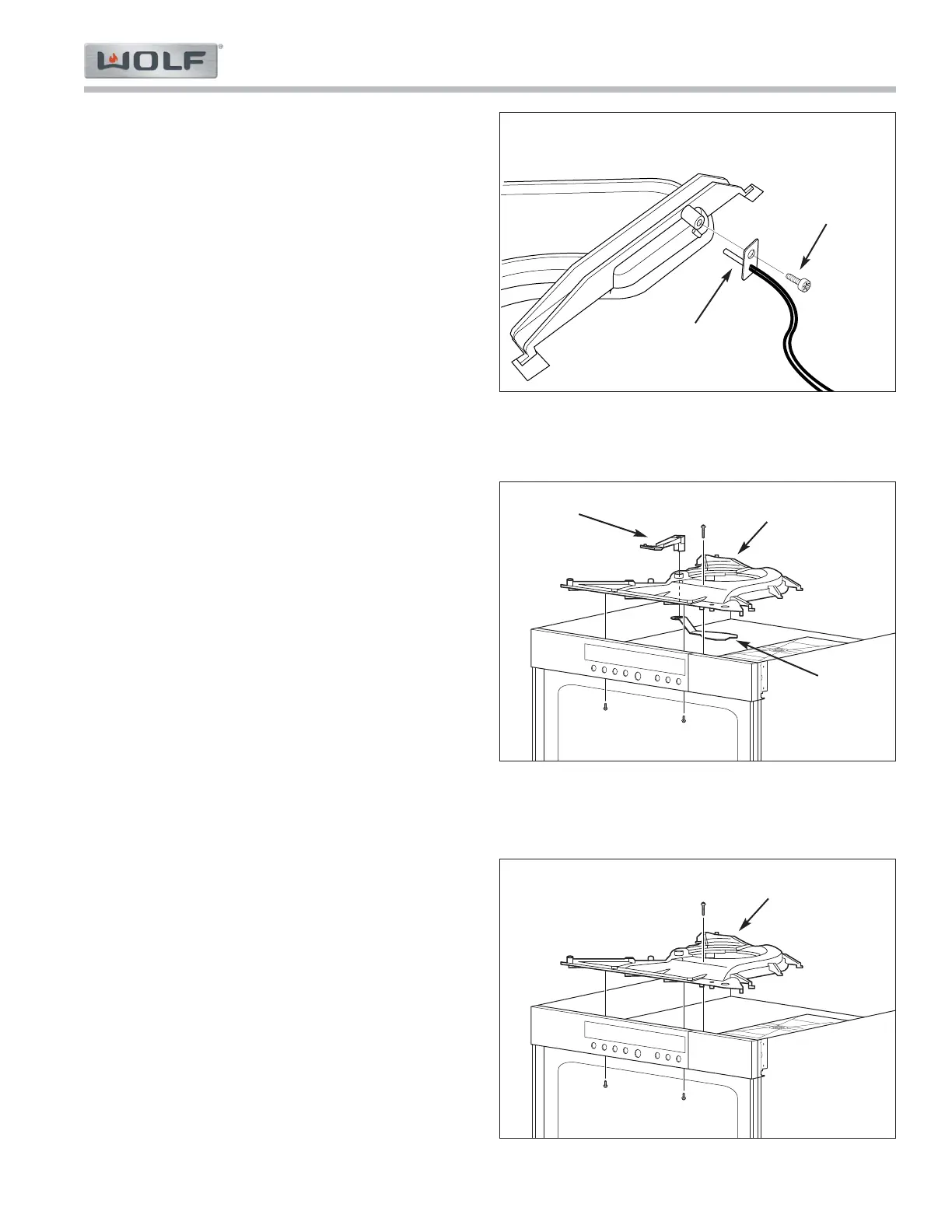

4-20. Slider & Valve Coupling Removal
4-19. Climate Temperature Sensor Removal
4-21. Top Exhaust Duct Removal
Sensor
Back End of
Exhaust Duct
Mounting
Screw
Top Exhaust Duct
Coupling
Slider
Top Exhaust Duct
To Next Page
