Wolf CSO30 - Exhaust Fan Assembly Removal

Page 29
CSO24 and CSO30 (SWS #13508346)
Component Removal
4-8
#9001333 - Revision A - August, 2014

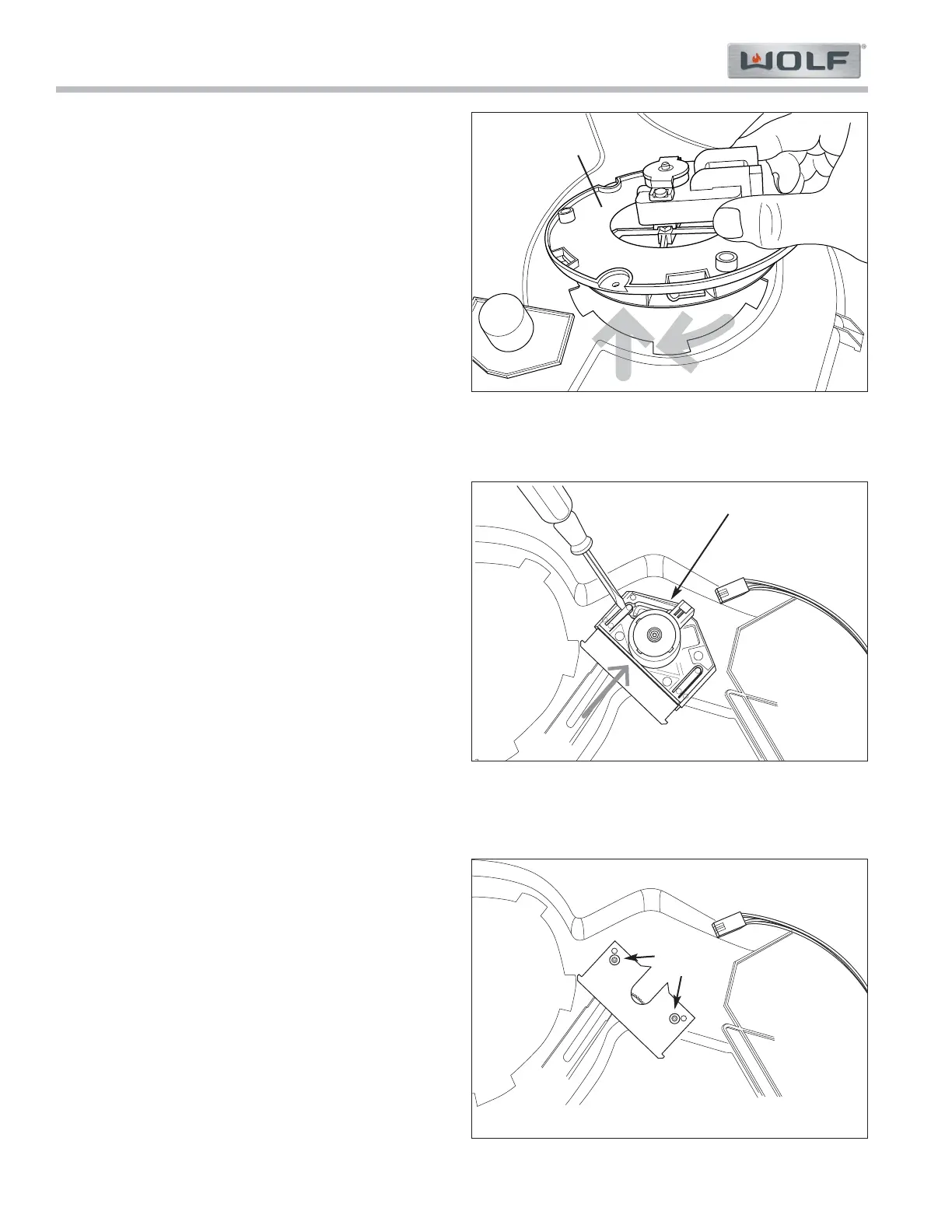

Exhaust Fan Assembly Removal
To remove the exhaust fan assembly, first remove the
top and back panel, then (See Figure 4-16):
1. Disconnect electrical leads from fan motor.
2. Grasp fan motor and spin assembly clockwise until it
stops, then lift assembly from hole in top of exhaust
duct.
Stepping Motor Removal
To remove the stepping motor, the top and back panel
will need to be removed first, then (See Figure 4-17):
1. Disconnect electrical leads from stepping motor.
2. Place the blade of a small flat bladed screwdriver
into the pockets beside the tabs on each side of
motor, then pry the tabs up while pulling motor
toward front of appliance.
Stepping Motor Retainer Removal
To remove the stepping motor retainer, first remove the
top and back panel and the stepping motor, then extract
the retainer mounting screws and lift the retainer from
the top of the exhaust duct (See Figure 4-18):
4-16. Exhaust Fan Removal
4-17. Stepping Motor Removal
4-18.
Fan Assembly
Stepping Motor
Motor Retainer
Mounting
Screws
