Component Access
CSO24 and CSO30 (SWS #13508346)
4-7
#9001333 - Revision A - August, 2014
Display Panel Control Board Removal
To remove the display control board, the top and back panel
will need to be removed first, then (See Figure 4-13):
1. Disconnect all electrical leads from display panel con-
trol board.
2. Pull control knob from control knob shaft.
3 At base of display panel control board bend retaining
tabs down so they are straight, not over the control
board, then pull the bottom of the board away from the
control panel and down.
Flap Actuator Assembly Removal
To remove the flap actuator assembly, first remove the top
and back panel, then (See Figure 4-14):
1. Disconnect flap actuator electrical leads.
2. Dismount the display panel control board.
NOTE: It is not necessary to disconnect the wire leads
from the display control board when removing it from
the control panel for this procedure.
3. Extract flap actuator assembly mounting screw.
4. From front of appliance slide assembly to the left, dis-
engaging actuator’s gear from door’s gear teeth and
spring’s hollow mounting stud from metal hinge post.
NOTES:
• When reinstalling flap actuator, the spring arm must
be tucked up behind the spring retainer flange.
When reinstalled the spring will automatically
release from the retainer flange during use.
• Reinstall flap actuator with flap/door closed.
Control Panel and Water Tank Housing Assembly
To remove the control panel and water tank housing assem-
bly, the top and back panel, will need to be removed first,
and the flap actuator and water valve will need to be dis-
connected, then (See Figure 4-15):
1. Extract screws under the control panel.
2 Extract screws passing through right side panel into
standoffs in the water tank housing.
3. Extract screws from both flanges of L-brackets attached
to the back side of panel at each end.
4. Dismount the display panel control board.
NOTE: It is not necessary to disconnect the wire leads
from the display control board when removing it from
the control panel for this procedure.
5. Pull control panel and water tank housing assembly
straight forward and off the top of appliance.
NOTE: On CSO30TE, CSO30TM, CSO30PE, and
CSO30PM if the control panel, or water tank trim are
damaged, or if the water tank door is damaged the
entire Control Panel and Water Tank Housing Assembly
will have to be replaced.

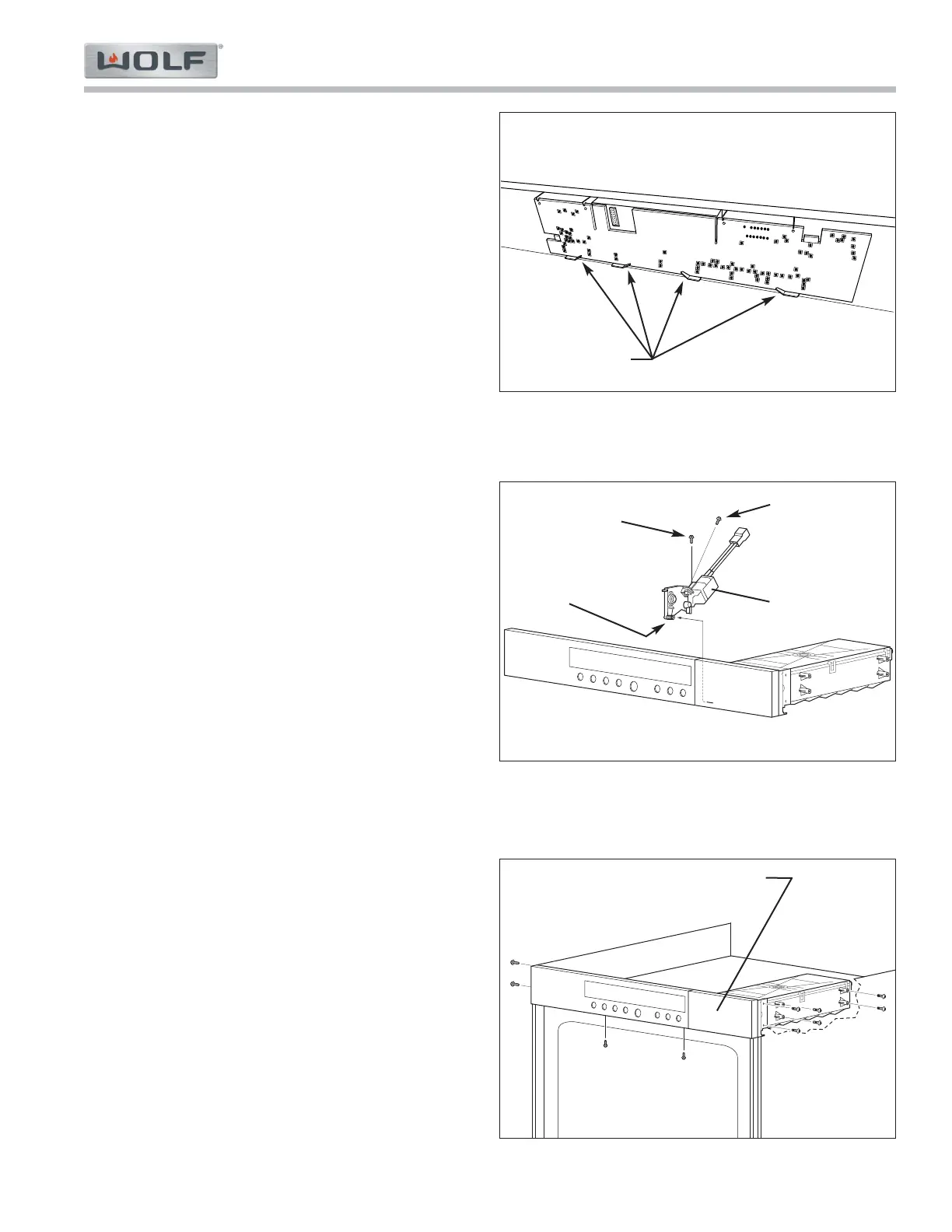

4-13. Display Panel Control Board Removal
4-14. Flap Actuator Assembly Removal
4-15. Control Panel / Water Tank Housing Assy
(REAR VIEW)
Display
Board
Retaining Tabs
Control Panel/Water Tank Housing Assy.
Flap Actuator
Mounting Screw
Flap (door)
Adjusting Screw
Spring
