CSO24 and CSO30 (SWS #13508346)
Component Removal
4-6
#9001333 - Revision A - August, 2014
Hot Air (Convection) Heating Element Removal
To remove the hot air heating element, first remove the
left and right side rack guides and the hot air cover, then
(See Figure 4-10):
1. Extract the screw and washer from the L-shaped ele-
ment hold-down bracket.
2. Extract the cap nuts from the studs of the thermo cir-
cuit breakers.
3. Pull heater forward into steam oven cavity and dis-
connect all electrical leads from the heater terminals.
NOTE: If the stud of a thermo circuit breaker is
pushed back through its entry hole, the unit will need
to be pulled from its installation and the appliance
cover will need to be removed to access the thermo
circuit breaker.
Top and Back Cover Panel Removal
To remove the top and back cover panel the appliance
will need to be removed from its installation, then (See
Figure 4-11):
1. Extract the screws along the edges of the top and
back of the panel.
2. Pull the panel back approximately 1/2” (13mm), then
lift it up off of the convection steam oven.
Water Valve Assembly Removal
To remove the water valve assembly, first remove the top
and back panel, then (See Figure 4-12):
1. Disconnect all electrical leads from water valve
assembly.
2. Extract screws that hold water valve to water tank
housing.
3. Slide assembly back and lift up to access bottom,
then disconnect hose from bottom of valve.

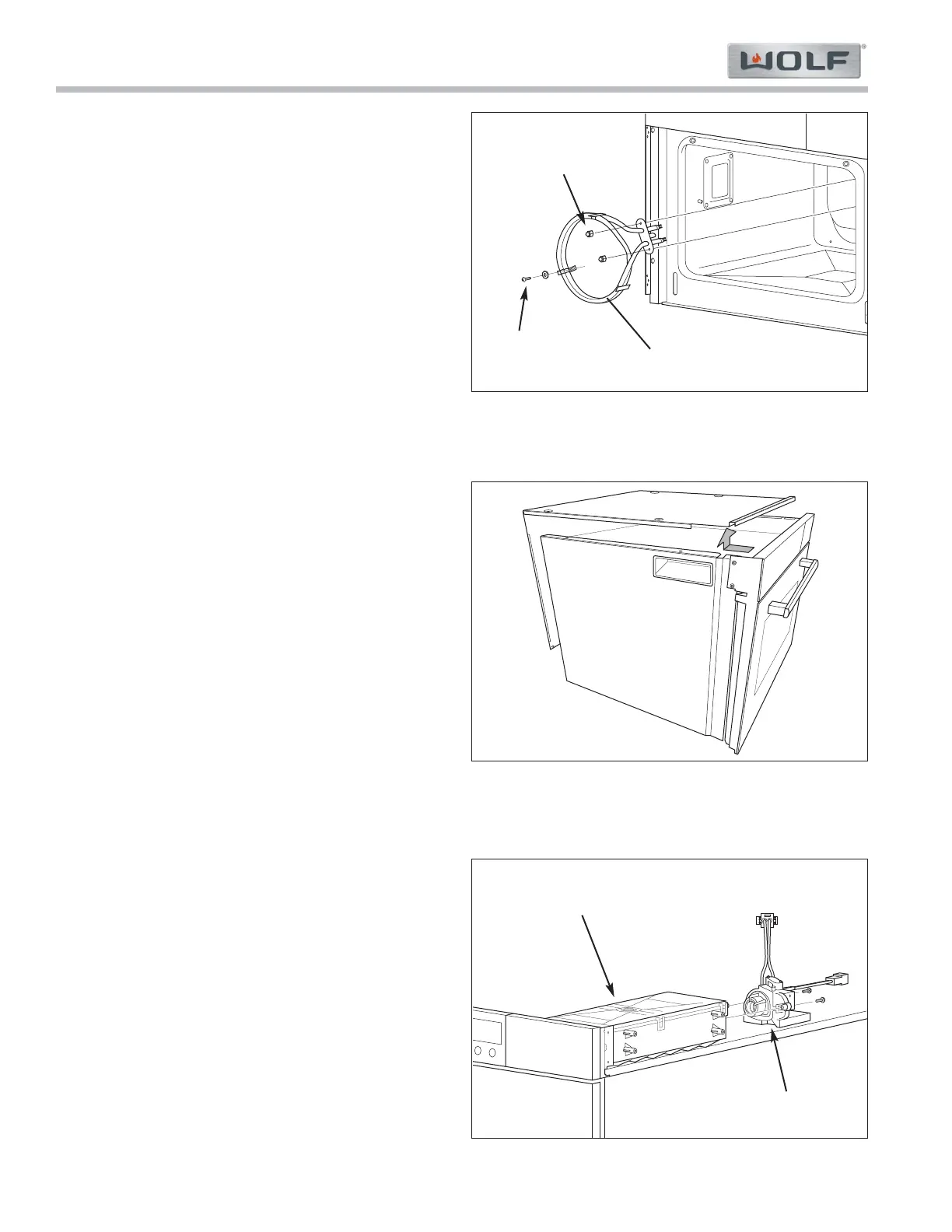

4-10. Hot Air Heating Element Removal
4-11. Top and Back Cover Panel Removal
4-12. Water Valve Assembly Removal
Element
Cap Nuts
Screw &
Washer
Top & Back Cover
Water Valve Assy
Water Tank Housing
To Next Page
