Wolf DF30 - Page 100

Wiring Diagrams
DDuuaall FFuueell RRaannggee
7-20
POWER INPUT
AMP
CONNECTOR
N
L1
RIGHT
REAR
RIGHT
FRONT
CHAR-
BROILER
MIDDLE
REAR
MIDDLE
FRONT
LEFT
REAR
LEFT
FRONT
RIGHT
FRONT
SWITCH
RIGHT
REAR
SWITCH
RIGHT
CHARBROILER
SWITCH
FRONT
MIDDLE
SWITCH
REAR
MIDDLE
SWITCH
LEFT
FRONT
SWITCH
LEFT
REAR
SWITCH
1
111213151719
8
2
3
5
9
22
23
24
6
4
21
20
18
16

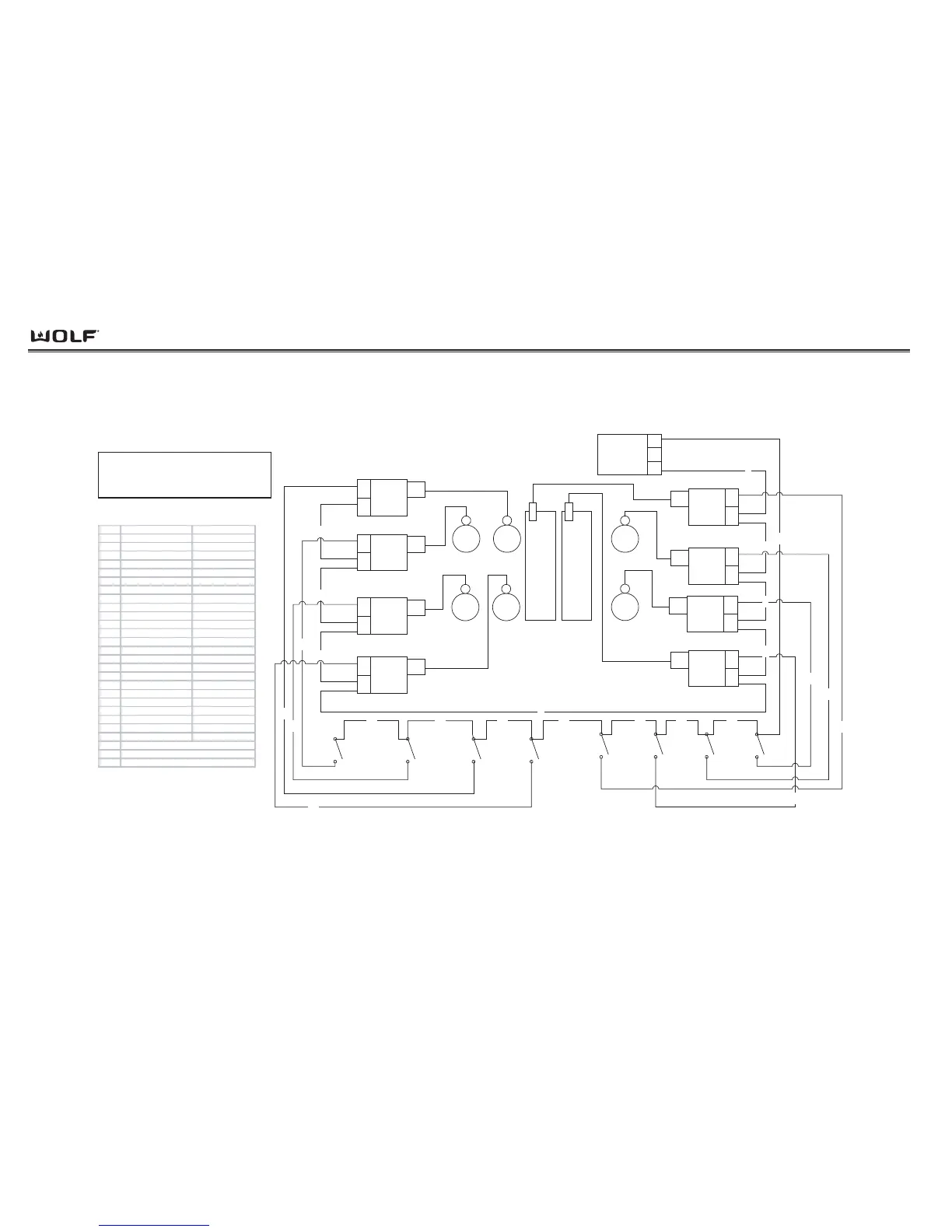

Dual Fuel Rangetop Harness
Model DF606DC
WIRE WIRE COLOR INFO
1BLACK L1 IN
2 WHITE N IN
3 WHITE N JUMPER
4 BLACK/GREEN SST R. CHARBROILER
5 WHITE N JUMPER
6 BLACK/YELLOW SST RIGHT REAR
7 WHITE N JUMPER
8 BLACK/RED SST RIGHT FRONT
9 WHITE N JUMPER
10 BLACK/ORANGE SST L. CHARBROILER
11 BLACK L1 JUMPER
12 BLACK L1 JUMPER
13 BLACK L1 JUMPER
14 BLACK L1 JUMPER
15 BLACK L1 JUMPER
16 BLACK/BLUE SST MIDDLE FRONT
17 BLACK L1 JUMPER
18 BLACK/PURPLE SST MIDDLE REAR
19 BLACK L1 JUMPER
20 BLACK/GRAY SST LEFT FRONT
21 BLACK/TAN SST LEFT REAR
22 WHITE N JUMPER
23 WHITE N JUMPER
24 WHITE N JUMPER
NOTE: SST: SINGLE STRIPE THE WIRE
HA: HASH ON THE WIRE
DST: DOUBLE STRIPE THE WIRE
CHAR-
BROILER
LEFT
CHARBROILER
SWITCH
10
7
14
FRONT
MIDDLE
SPARK
MODULE
L1
N
spark
lead
LEFT
FRONT
SPARK
MODULE
L1
N
spark
lead
LEFT
REAR
SPARK
MODULE
L1
N
spark
lead
REAR
MIDDLE
SPARK
MODULE
L1
N
spark
lead
RIGHT
CHAR-
BROILER
SPARK
MODULE
L1
N
spark
lead
RIGHT
FRONT
SPARK
MODULE
L1
N
spark
lead
RIGHT
REAR
SPARK
MODULE
L1
N
spark
lead
LEFT
CHAR-
BROILER
SPARK
MODULE
L1
N
spark
lead
