Component Access & Removal
4-14
Components Behind the Bull Nose
Valve Switch, Burner Valve, Charbroiler Valve,
Griddle Shut Off Valve, Manifold, Control Board,
Relay Board, Motorized Door Latch, Transformer
and Regulator
Valve Switch Removal
To remove the valve switch, first disconnect the wire
leads from the switch. Then, extract the mounting
screws and pull the switch from the valve. (See Figure
4-28)
Burner Valve, Charbroiler Valve, and Griddle Shut
Off Valve Removal
Disconnect the flexible gas lines, disconnect any wire
leads. Then, extract the screw from underneath the
manifold that secures the valve or shut off.
(See Figures 4-28, 4-29 and 4-30)
Manifold Removal
First remove all the valves and shut offs. Then, extract
the screw in the front of the manifold that secures it to
the manifold gas supply line. Now, extract the screws
that secure the manifold to the unit and lift out. (See
Figures 4-28, 4-29 and 4-30)

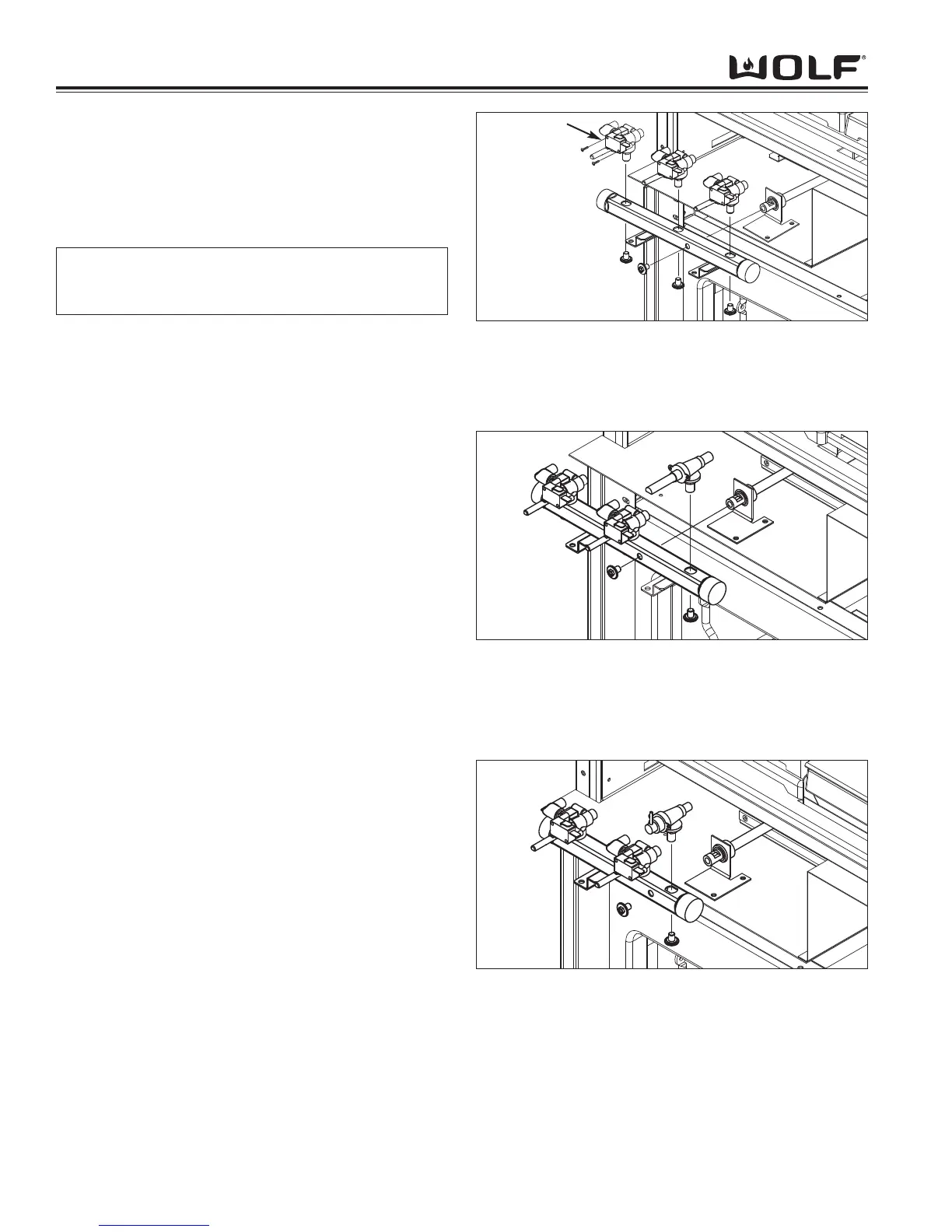

Figure 4-28. Burner Valve Removal
Figure 4-29. Charbroiler Valve Removal
Figure 4-30. Griddle Shut Off Removal
Valve Switch
NOTE:
To remove the following components, the bull nose
will need to be removed.
