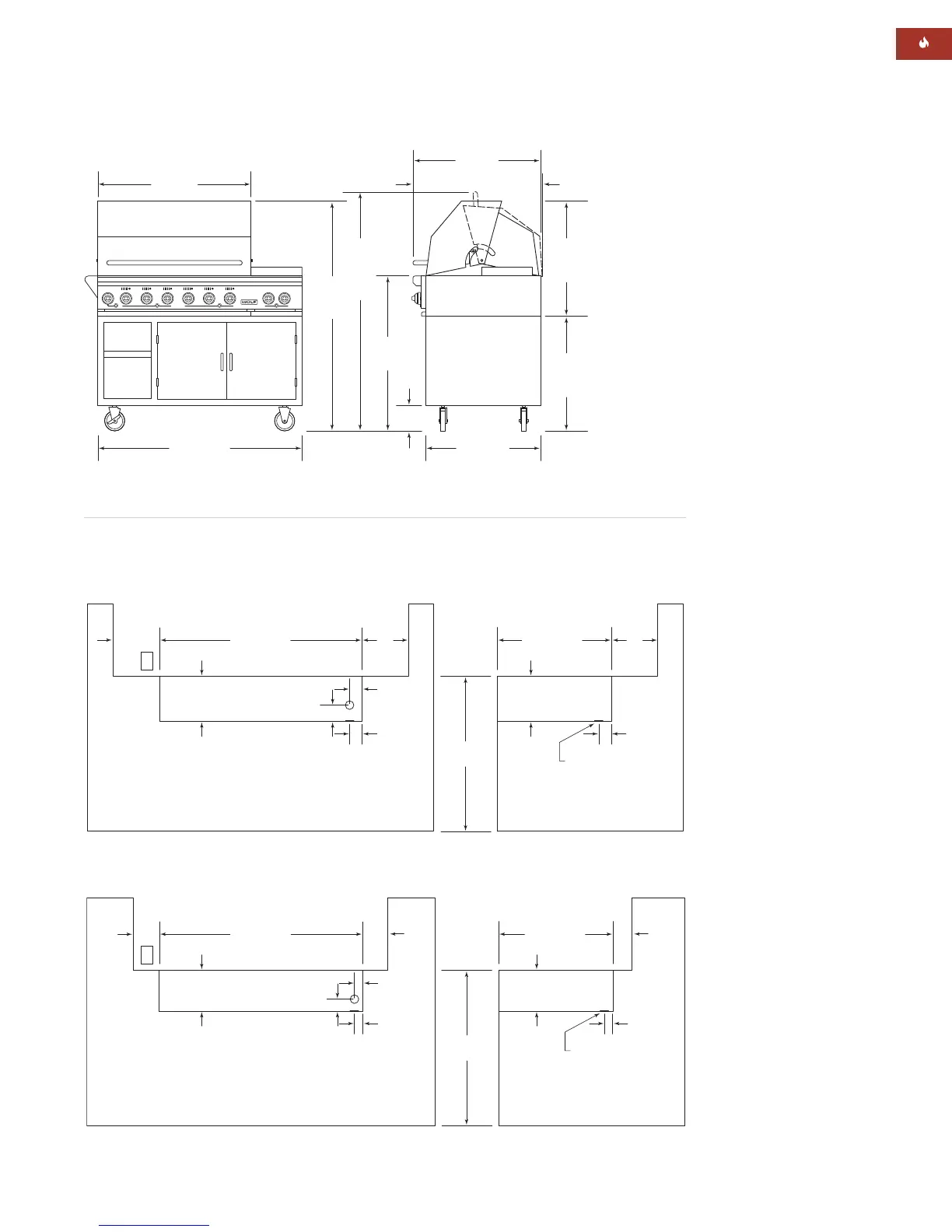

INSTALLATION SPECIFICATIONS
48" (1219) Outdoor Grills – Built-In (BI) Models
Combustible Enclosure
OVERALL DIMENSIONS
48" (1219) Outdoor Grills
Model BBQ362C shown
SPECIFICATIONS
48" (1219) Outdoor Grills
Overall Width 48" (1219)
Overall Height
(BI) Models 26" (660)
(C) Models 52
3
/4" (1340)
Overall Depth 30" (762)
Combustible Enclosure
Opening Width 50
1
/4" (1276)
Opening Depth 27
3
/4" (705)
Non-Combustible Enclosure
Opening Width 48
1
/4" (1226)
Opening Depth 26
3
/4" (679)
Electrical Supply 110/120 V AC, 60 Hz
15 amp circuit
Power Cord 9' (2.7 m) 3-prong
Shipping Weight 525–560 lbs
(238–254 kg)
MODEL OPTIONS
48" (1219) Outdoor Grills
Built-In Models
with Side Burners BBQ362BI
w/o Side Burners BBQ48BI
Freestanding Cart Models
with Side Burners BBQ362C
w/o Side Burners BBQ48C
Natural gas models listed;
for LP gas add (-LP) to the
model number.
36
1
/2"max
(927)
48
1
/4" (1226)
ROUGH OPENING WIDTH
NON-COMBUSTIBLE ENCLOSURE
26
3
/4" (680)
ROUGH OPENING
DEPTH
9
1
/2" (242)
ROUGH
OPENING HEIGHT
6"
(152)
min
6"
(152)
min
9
1
/2" (242)
ROUGH
OPENING HEIGHT
2
1
/8"
(54)
2
1
/8"
(54)
2
3
/4"
(70)
LOCATE
ELECTRICAL
OUTLET FOR
ROTISSERIE
ON LEFT SIDE
1
7
/8"
(48)
E
ALLOW OPENING
FOR ACCESS
DOOR
2" (51) DIAMETER OPENING
FOR GAS SUPPLY CONNECTION
(BACK WALL LOCATION OR
BOTTOM LOCATION)
2" (51) DIAMETER OPENING
FOR GAS SUPPLY CONNECTION
(BOTTOM LOCATION)
C
L
C
L
3"
(76)
min
Non-Combustible Enclosure
Unit dimensions may vary to ±
1
/ 8 " (3).
Refer to installation
instructions shipped
with each Wolf
product for detailed
specifications.
