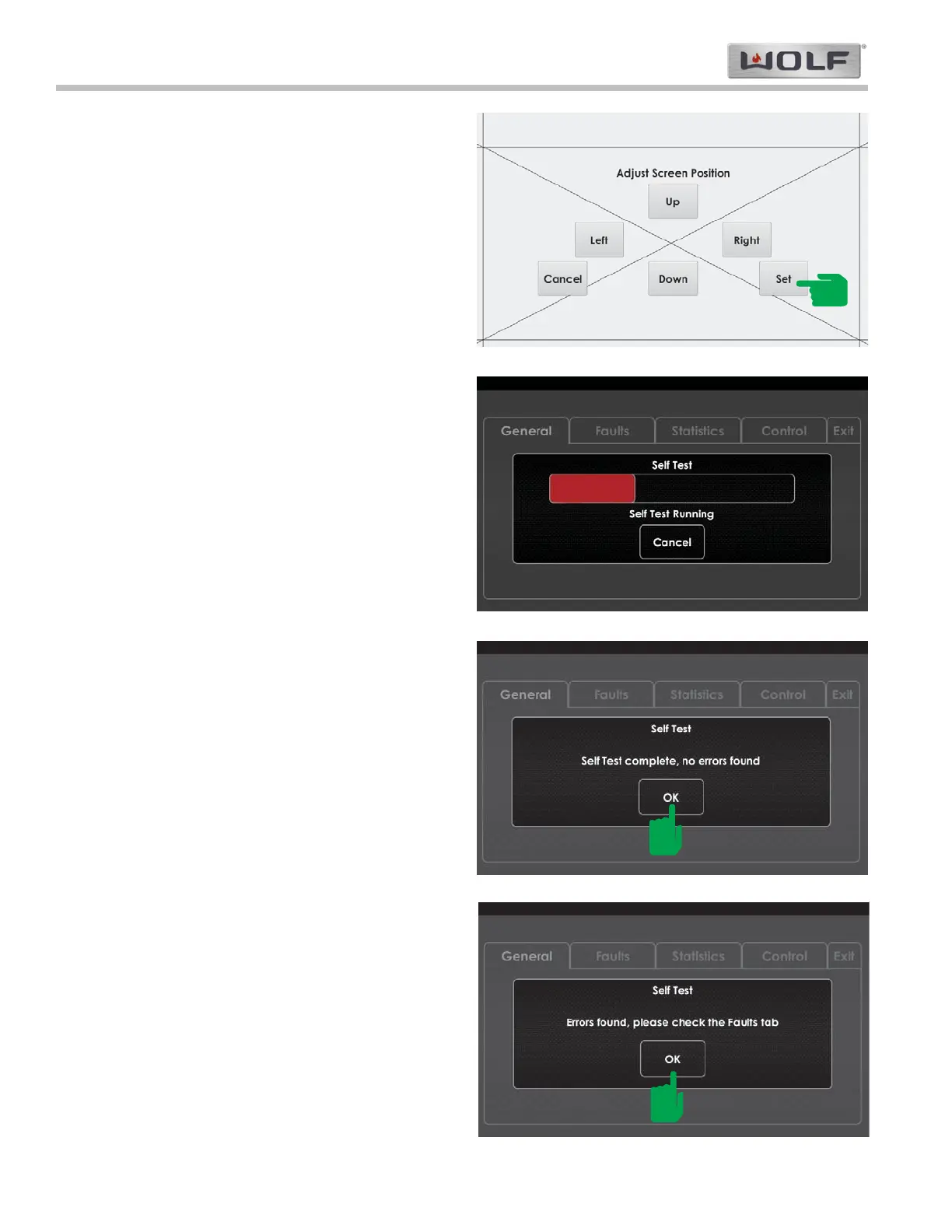

Figure 4-7 Self Test In Progress
Figure 4-8 Self Test Complete - No Faults
Figure 4-6 Reposition Screen
Reposition Screen
From the general diagnostics screen touch Reposition
Screen. A grid will appear on the GUI (See Figure 4-6).
1. Move the pad of your finger along the grid to
reposition the display.
2. Touch Set to exit reposition screen and save any
changes.
Self Test
Self test checks relays, triacs, and double line break
relays (DLB) on the relay board. Self Test takes about
two and half minutes on a double oven. Self Test uses
a progress bar to show progress and will report findings
after completion (See Figure 4-7).
1. Close the oven door(s).
2. Touch Self Test.
3. If no faults are found touch OK. Returns to general
diagnostic screen (See Figure 4-8).
4. If faults are found touch OK, and return to the gen-
eral diagnostics screen then touch Faults tab (See
Figure 4-9).
Figure 4-9 Self Test Complete - Faults Found
To Next Page
