2 Pull the trim upward to remove it from the unit.

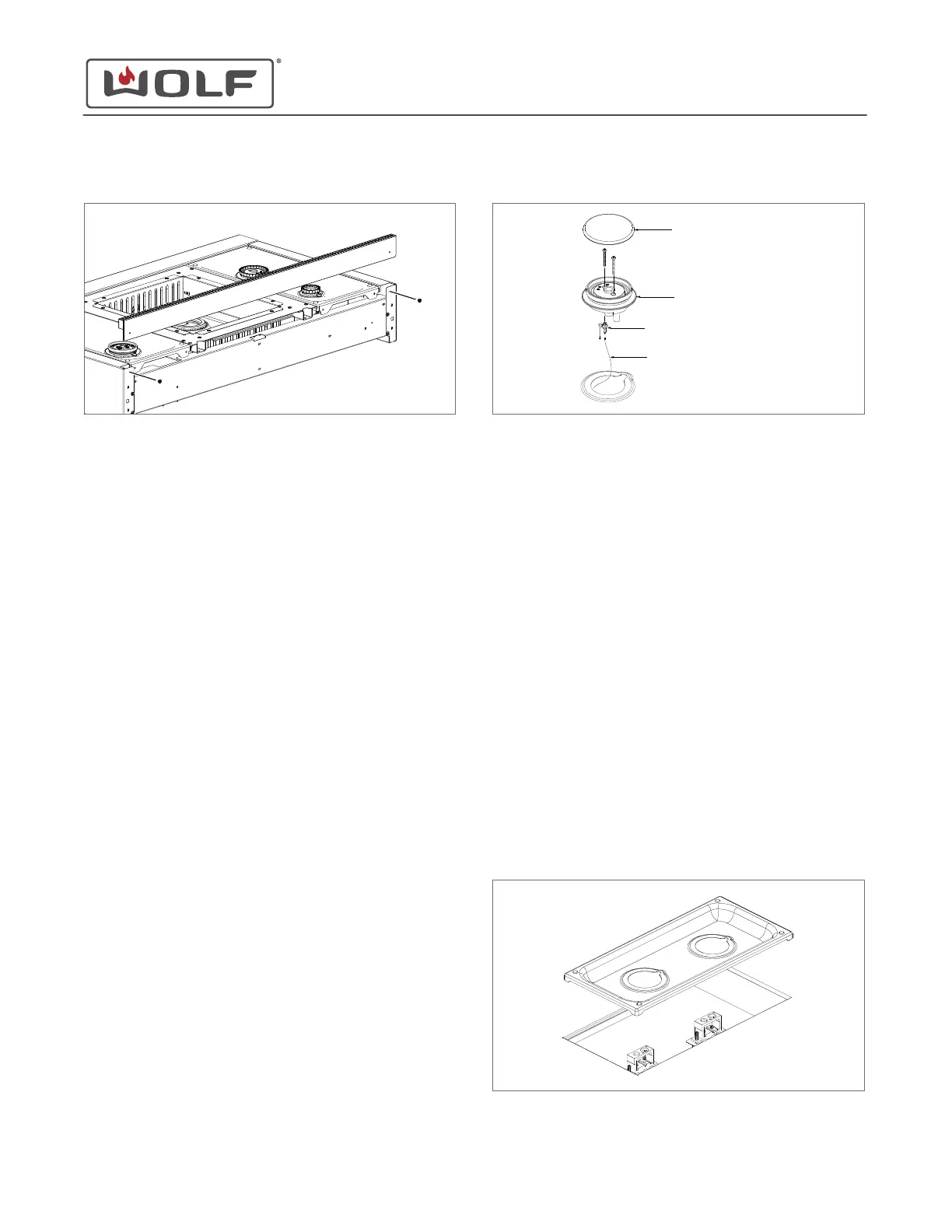

ISLAND TRIM INSTALLATION
Install the Island Trim
1 Slide the island trim down into the openings at the back of
the unit's side panels.
2 Use a Phillips screwdriver to install the screws into the
island trim.
BURNER ASSEMBLY REMOVAL
To remove the burner assembly, first remove:
1
Burner grate
2
Both burner caps
Remove the Burner Assembly
1 Use a T-15 Torx bit to remove the two screws holding the
burner assembly to the orifice holder.
2 Lift the burner assembly from the burner pan.
3
Disconnect the electrode wire from the ignitor.
Burner Cap
Burner Assembly
Ignitor
Electrode Wire
BURNER ASSEMBLY INSTALLATION
Install the Burner Assembly
1 Attach the electrode wire to the ignitor.
2 Place the burner assembly into the burner pan.
3 Use a T-15 Torx bit to install the screws holding the burner
assembly to the orifice holder, torqued to 24 in lb.
BURNER PAN REMOVAL
To remove the burner pan, first remove:
1
Burner grate
2
Both burner caps
3
Both burner assemblies
Remove the Burner Pan(s)
Lift the burner pan(s) from the unit.
Sealed Burner Rangetop with Wok Service Manual
Component Removal and Installation
REMOVE THE ISLAND TRIM (continued)
service.subzero.com
828990 REV. A
12
