Wolf Rangetop - Solenoid Handling; Wok Burner Assembly Handling

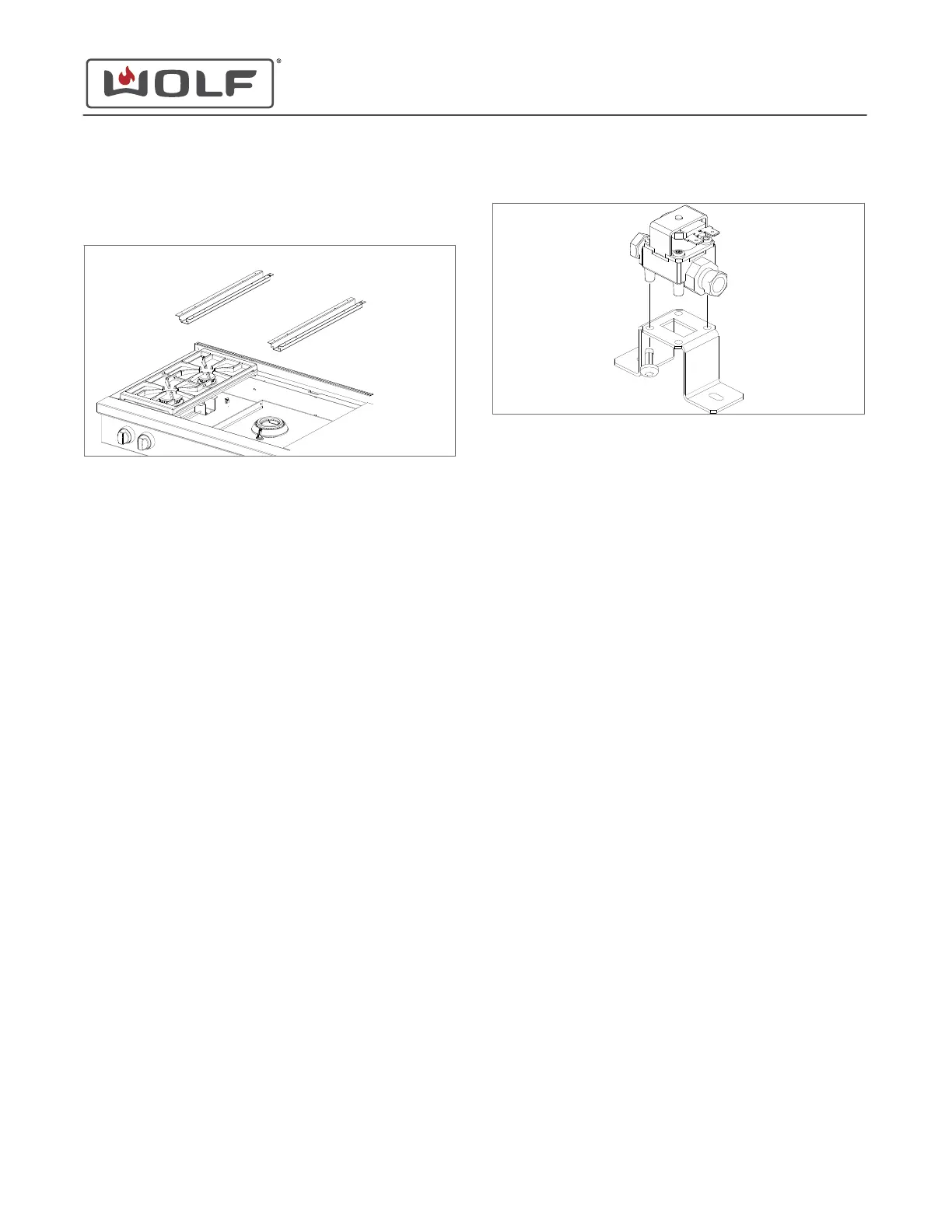

Remove the Wok Spacer Rail
Lift the wok spacer rail directly upward from the supports in
the burner box.
WOK SPACER RAIL INSTALLATION
Install the Wok Spacer Rail
Set the wok spacer rail onto the supports in the burner box,
positioned so that its screw holes will align with the screw
holes in the wok frame.
SOLENOID REMOVAL
To remove the solenoid, first remove:
1
Flat wok grate
2 Wok grate
3 Wok top plate
4 Wok frame assembly
Remove the Solenoid
1 Disconnect the solenoid wire connectors.
2 Use a
5
/
8
" combination wrench to disconnect the solenoid
inlet line.
3 Use a
5
/
8
" combination wrench to disconnect the solenoid
outlet line.
4
Remove the solenoid from the unit.
SOLENOID INSTALLATION
After installing the solenoid, install:
Install the Solenoid
1 Place the solenoid into the unit.
2 Use a
5
/
8
" combination wrench to connect the solenoid
outlet line.
3 Use a
5
/
8
" combination wrench to connect the solenoid inlet
line.
4 Connect the solenoid wire connectors.
WOK BURNER ASSEMBLY REMOVAL
To remove the wok burner assembly, first remove:
1
Flat wok grate
2 Wok grate
3 Wok top plate
Remove the Wok Burner Assembly
1 Lift the wok burner assembly directly upward from the tray.
Sealed Burner Rangetop with Wok Service Manual
Component Removal and Installation
Remove the Wok Spacer Rail (continued)
service.subzero.com
828990 REV. A
6
