Wolf Rangetop - Wok Mounting Bracket Handling; Bottom Panel Handling

2 Remove the wok tray from the unit.

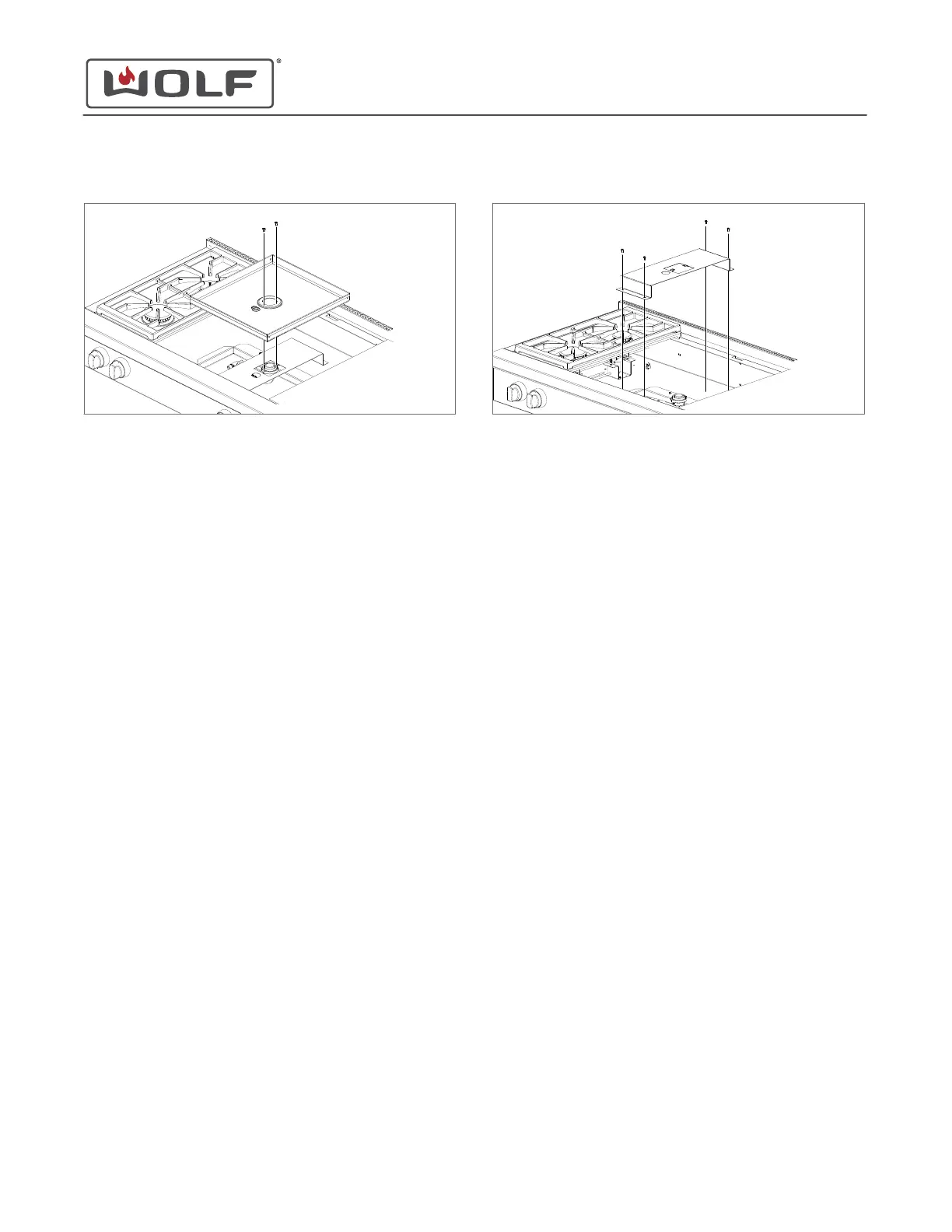

WOK TRAY INSTALLATION
Install the Wok Tray
1 Set the wok tray into the bottom of the wok enclosure.
2 Use a T-25 Torx bit to install the screws holding the wok gas
elbow to the wok tray.
WOK MOUNTING BRACKET REMOVAL
To remove the wok mounting bracket, first remove:
1
Flat wok grate
2 Wok grate
3 Wok top plate
4 Wok frame assembly
5 Wok burner assembly
6 Wok ignitor
7 Wok tray
Remove the Wok Mounting Bracket
1 Use a
1
/
4
" socket to remove the wok mounting bracket
screws.
2
Remove the wok mounting bracket from the unit.
WOK MOUNTING BRACKET INSTALLATION
Install the Wok Mounting Bracket
1 Install the wok mounting bracket into the unit.
2 Use a
1
/
4
" socket to install the wok mounting bracket
screws.
BOTTOM PANEL REMOVAL
To remove the bottom panel, first remove:
1
Flat wok grate
2 Wok grate
3 Wok top plate
4 Wok frame assembly
5 Wok burner assembly
6 Wok ignitor
7 Wok tray
8 Wok mounting bracket
Remove the Bottom Panel
1 Move the wok orifice assembly and elbow out of the way.
2 Use a
1
/
4
" hex bit to remove the bottom panel mounting
screws.
Sealed Burner Rangetop with Wok Service
Manual
Component Removal and Installation
REMOVE THE WOK TRAY (continued)
service.subzero.com
828990 REV. A
9
