4
Wok burner assembly
Remove the Wok Ignitor
1 Use a
1
/
4
" socket to remove the wok ignitor mounting
screw.
2 Loosen the nut holding the wok ignitor to the tray.
3 Pull the wok ignitor up through the hole in the tray.
4 Disconnect the electrode wire from the wok ignitor.
5 Remove the wok ignitor from the unit.

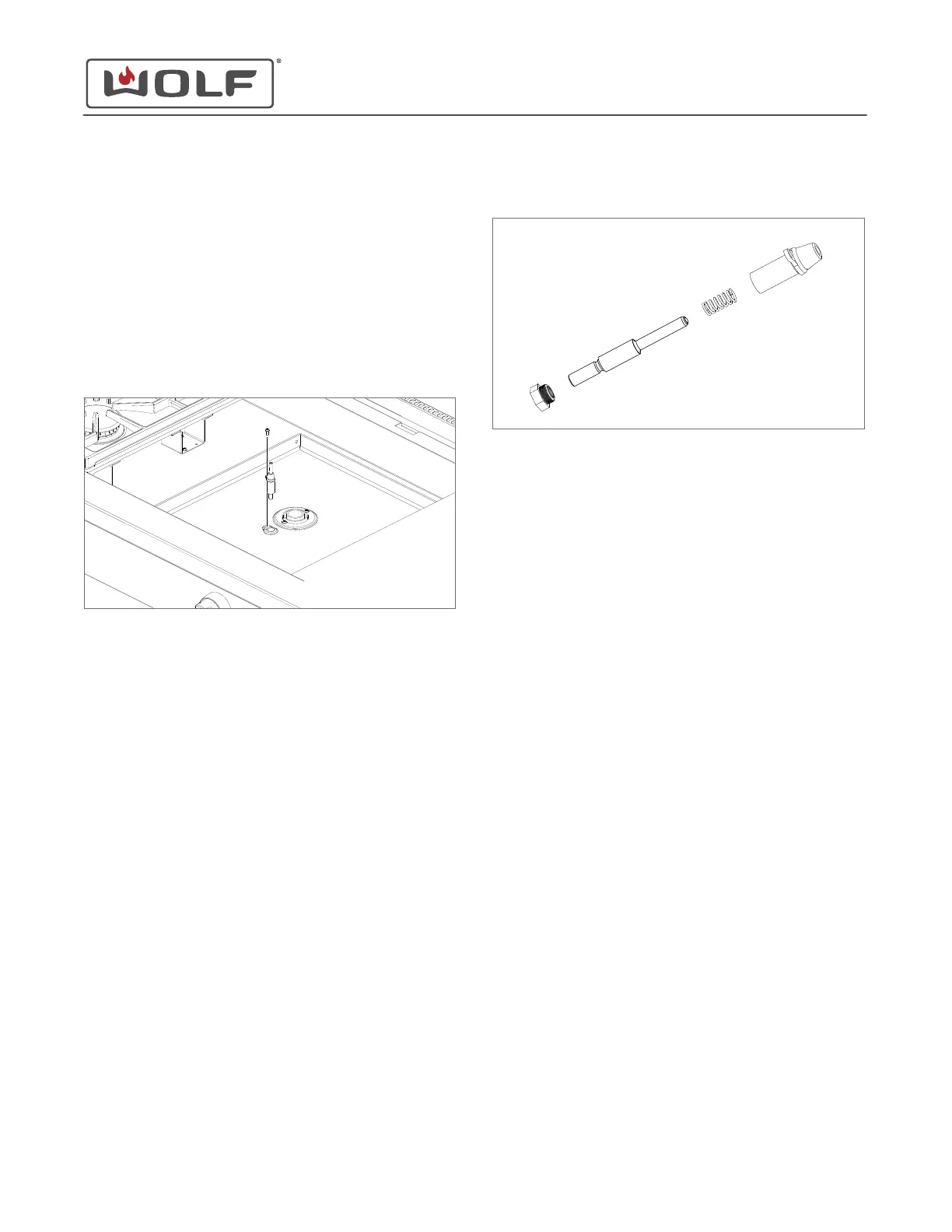

WOK IGNITOR INSTALLATION
Install the Wok Ignitor
1 Connect the electrode wire to the wok ignitor.
2 Install the wok ignitor into the hole in the tray.
3 Tighten the nut holding the wok ignitor to the tray.
4 Use a
1
/
4
" socket to install the wok ignitor mounting screw.
WOK IGNITOR ELECTRODE REMOVAL
To remove the wok ignitor electrode, first remove:
1
Flat wok grate
2
Wok grate
3
Wok top plate
4
Wok burner assembly
5
Wok ignitor
Remove the Wok Electrode from the Electrode Mount
1 Remove the retaining nut that holds the electrode into the
electrode mount.
2
Slide the electrode mount upward and away from the
electrode.
WOK IGNITOR ELECTRODE INSTALLATION
Install the Wok Electrode into the Electrode Mount
1 Replace the spring on the new electrode, and slide the
electrode mount onto the ignitor.
2 Install the retaining nut, and tighten it until it is finger-tight.
WOK TRAY REMOVAL
To remove the wok tray, first remove:
1
Flat wok grate
2
Wok grate
3
Wok top plate
4
Wok frame assembly
5
Wok burner assembly
6
Wok ignitor
Remove the Wok Tray
1 Use a T-25 Torx bit to remove the screws holding the wok
gas elbow to the wok tray.
Sealed Burner Rangetop with Wok Service Manual
Component Removal and Installation
service.subzero.com
828990 REV. A
8
