This document describes the Wolf Sealed Burner Rangetop with Wok Service Manual, providing comprehensive information for troubleshooting, diagnosing malfunctions, completing repairs, and returning the product to proper operating condition. It is intended for use by Factory Certified Service personnel.

Function Description

The Wolf Sealed Burner Rangetop is a household cooking appliance designed for various cooking tasks, including wok service. It features sealed burners for efficient and clean operation. The rangetop is equipped with a wok grate and a wok top plate, allowing for specialized wok cooking. The appliance integrates multiple burner assemblies, each with its own ignitor and control system, to provide precise heat control. A DSI (Direct Spark Ignition) board manages the ignition sequence for the burners. The unit also includes a regulator to manage gas pressure, ensuring safe and consistent flame performance.

Important Technical Specifications

The rangetop operates on an electrical rating of 120 Volts, 1 Amp, and 60 Hertz. It requires a 15 amp dedicated circuit for service.

Gas Specifications:

Natural Gas:
- Supply pressure to inlet regulator: 7" to 14" water column (wc)
- Outlet pressure of regulator: 5" +0.5" wc / -0.0" wc
- Maximum pressure drop (max flow to low flow): less than 0.5" wc
Liquid Propane (LP) Gas:
- Supply pressure to inlet regulator: 11" to 14" wc
- Outlet pressure of regulator: 10" +0.5" wc / -0.0" wc
- Maximum pressure drop (max flow to low flow): less than 0.5" wc

Burner Heat Ratings (in Btu):

Left Front Burner: 20,000 Btu
Other Front Burners: 18,000 Btu
Burner(s): 15,000 Btu
Wok: 35,000 Btu

Orifice Sizes (Natural Gas):

9.2K Orifice Holder: Main 140, Simmer 65
15K Orifice Holder: Main 180, Simmer 79
18K Orifice Holder: Main 205, Simmer 79
20K Orifice Holder: Main 208, Simmer 79
9.2K Valve: Main 54, Simmer 50
15K Valve: Main 67, Simmer 62
Wok Valve: Main 89

Orifice Sizes (LP Gas):

9.2K Orifice Holder: Main 93, Simmer 41
15K Orifice Holder: Main 117, Simmer 47
18K Orifice Holder: Main 125, Simmer 47
20K Orifice Holder: Main 132, Simmer 47
9.2K Valve: Main 34, Simmer 33
15K Valve: Main 43, Simmer 43
Wok Valve: Main 55

Solenoid:

Resistance: Approximately 208 Ω

Model Key:

ICB: International Designation
SRT: Sealed Burner Rangetop
30, 36, or 48: Size (in Inches)
4 or 6: Number of Burners
G: Infrared Griddle
DG: Infrared Dual Griddle
C: Infrared Charbroiler
F: French Top
W: Wok
-LP: Liquid Propane

Usage Features

The rangetop is designed for ease of use with clearly marked controls. Knobs are used to control the gas flow to each burner, including the specialized wok burner. The wok grate and wok top plate are removable for cleaning and maintenance. The unit's design allows for various cooking configurations depending on the model, including options for griddles, charbroilers, and French tops. Product use and care guides are available to assist owners with proper operation and maintenance.

Maintenance Features

The manual provides detailed instructions for component removal and installation, facilitating maintenance and repair. Key maintenance features include:

Component Removal and Installation:

Wok Grate and Top Plate: These components are removable for cleaning or replacement. A warning is issued regarding the heavy weight of the wok grate, recommending two people for removal to prevent injury or damage.
Wok Frame Assembly: Instructions are provided for removing the wok frame, which involves detaching mounting screws and lifting the assembly from the burner box.
Wok Spacer Rail: The spacer rail can be removed by lifting it directly upward from its supports.
Solenoid: The solenoid, which controls gas flow, can be removed by disconnecting wire connectors and gas lines.
Wok Burner Assembly: The entire wok burner assembly, including the surface burner, gas burner, and ignitor, can be lifted directly from the tray for service.
Wok Ignitor and Electrode: Detailed steps are provided for removing and installing the ignitor and its electrode, including disconnecting wires and loosening retaining nuts.
Wok Tray: The wok tray can be removed after detaching the wok gas elbow and mounting screws.
Wok Mounting Bracket: The bracket is removed by detaching its mounting screws.
Bottom Panel: The bottom panel can be removed to access internal components, requiring the movement of the wok orifice assembly and elbow.
Manifold: Instructions for removing the manifold are provided, emphasizing that gas lines and switch wiring do not need to be removed for manifold replacement.
Orifice Holder: The orifice holder, including its mounting bracket, can be removed by detaching screws and gas lines.
DSI Board Cover and DSI Board: The DSI board cover and the DSI board itself can be removed by detaching mounting screws and wire connectors.
Spark Module: The spark module, responsible for ignition, can be removed by disconnecting electrode and power wires and detaching mounting screws.
Wiring Cover: The wiring cover can be removed to access internal wiring.
Power Cord: Instructions for removing and installing the power cord, including strain relief and wire retainer, are provided.
Regulator: The gas regulator can be removed by detaching gas lines and mounting screws. A warning is included to use only pipe thread compound for gas connections, not Teflon tape.
Burner Grates, Caps, Assemblies, and Pans: These components are easily removable for cleaning and maintenance.
Island Trim: The island trim can be removed by detaching screws and lifting it from the unit.
Knobs and Bezels: Knobs pull straight off the shafts, and bezels are removed by detaching mounting screws.
Bullnose: The bullnose assembly can be removed by detaching mounting nuts and screws.
Side Panels: Side panels can be removed by detaching mounting screws.
Burner Box Support: The burner box support can be removed by detaching mounting screws.

Troubleshooting Guide: The manual includes a comprehensive troubleshooting guide that lists common problems, possible causes, and recommended test/action steps. This covers issues such as:

Constant or intermittent sparking at burners/wok ignitor
Poor ignition
Burner not igniting
Uneven wok heating
Wok being too hot
Popping noise during simmer mode
Flame appearance issues (tall, yellow, pulsing flames)
No knob or lighted knob display
No power to the unit

DSI Board Troubleshooting Flowchart: A detailed flowchart guides technicians through testing the DSI board for supply voltage, griddle thermostat (if present), DC voltage for solenoid output, continuity of J2/GND wire, and continuity of griddle/FT electrode.

Gas Pressure Testing: Instructions are provided for testing gas supply pressure, which is critical for diagnosing performance issues. This includes specifications for natural gas and liquid propane, methods for connecting a manometer to the unit manifold, and common reasons for pressure issues (e.g., undersized flex lines, shut-off valves, or supply lines). A warning is included against over-tightening burner assembly screws during testing.

Warranty Information: Product warranty is determined by the installation location and date. Information on viewing product warranties and searching for service information by serial number is available online.

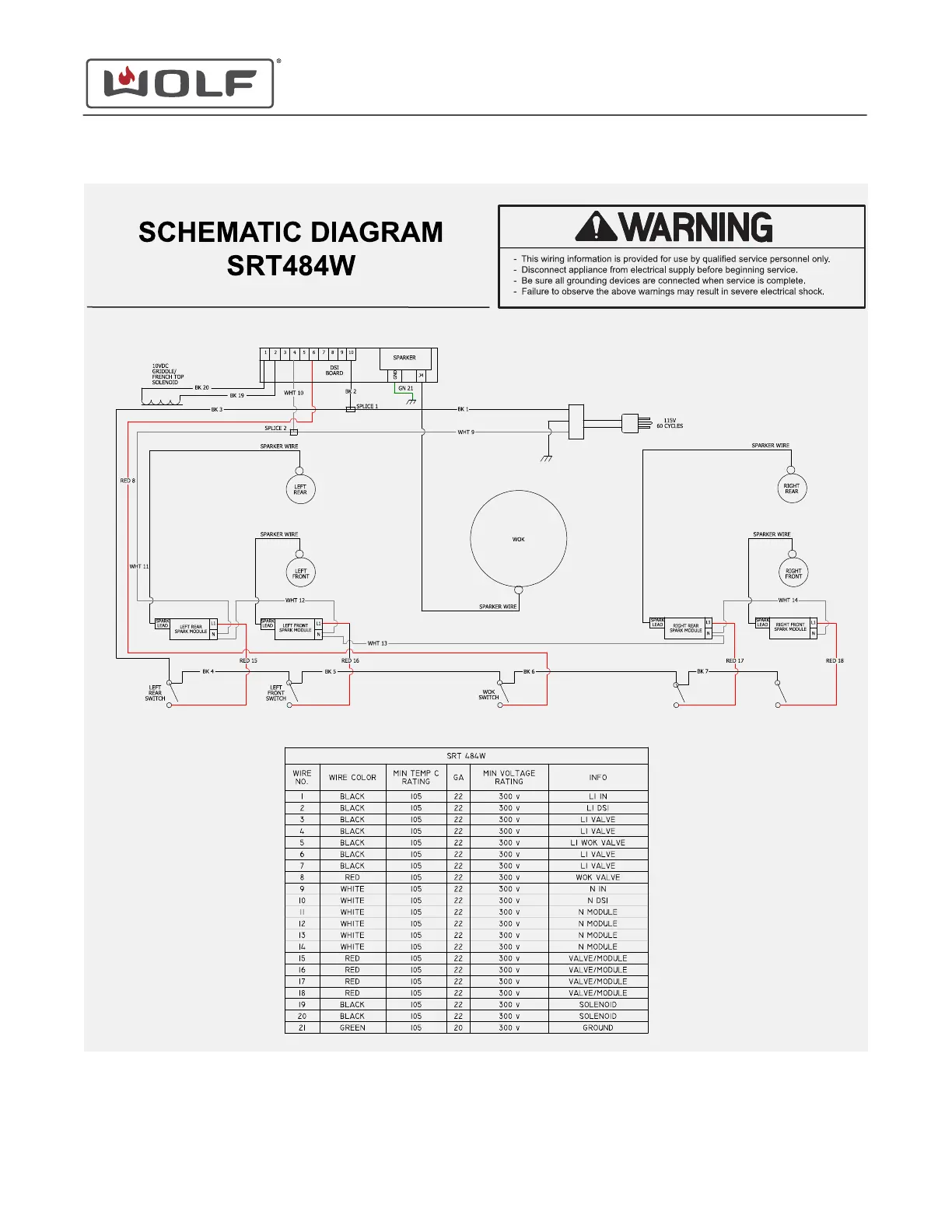

Wolf Rangetop - Wiring Diagrams; Schematic Diagram SRT484 W
