4. Functional Use
23

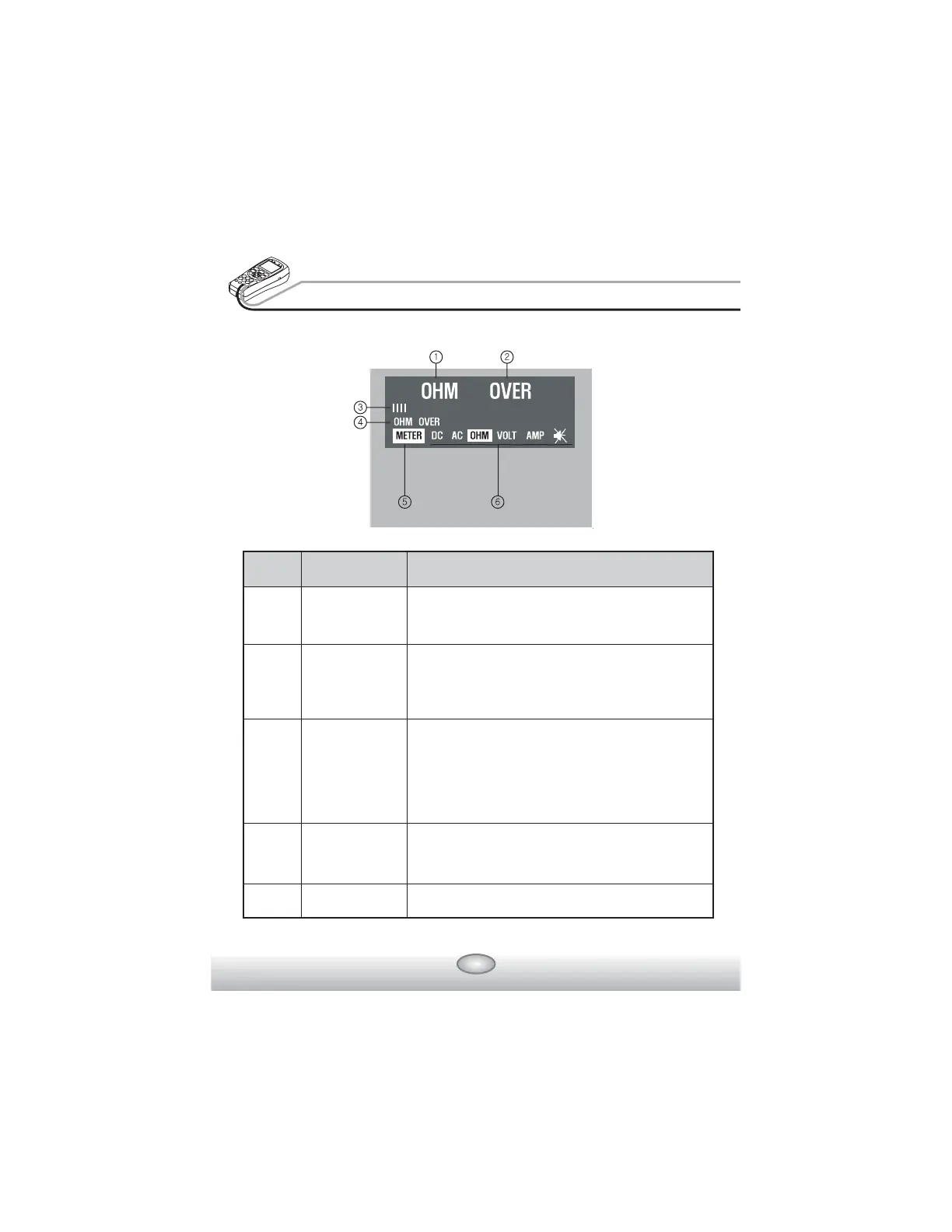

Description of METER MODE LCD WINDOW
Part
ྙ
ྚ
ྛ
ྜ
ྜྷ
Function
Kinds of test to
set up
Test value to
display
Measured value
graph
Measured value
in hold
MODE display
Description
- Resistance test
- Continuity test
- Set up tests of DC/AC voltage, current
- ˟ unit of resistance test is indicated
- Indicator of AC or DC value of voltage or current
- AC voltage & current are indicated as rms
(root mean square)
- Input measured value is indicated in the form of
graph
㯲
Graph is changed automatically equal to the
measured value in automatic mode
㯲
OVER is displayed when higher value is
measured than the setup value
The measured value is stored and indicated here,
when SET key is pressed at the moment of the
value measured
Digital Multi Meter Mode is displayed
