Determine if the PTO pump will t onto the
sha of your tractor. Occasionally because
of guarding or structural members there is
limited space around the PTO sha of some
tractors.
11.25"
5.5"
9"
PTO sha extenders
Pin on/ Slip on type
Quick release type
Assembly Instructions (continued)
ASSEMBLY INSTRUCTIONSASSEMBLY INSTRUCTIONS

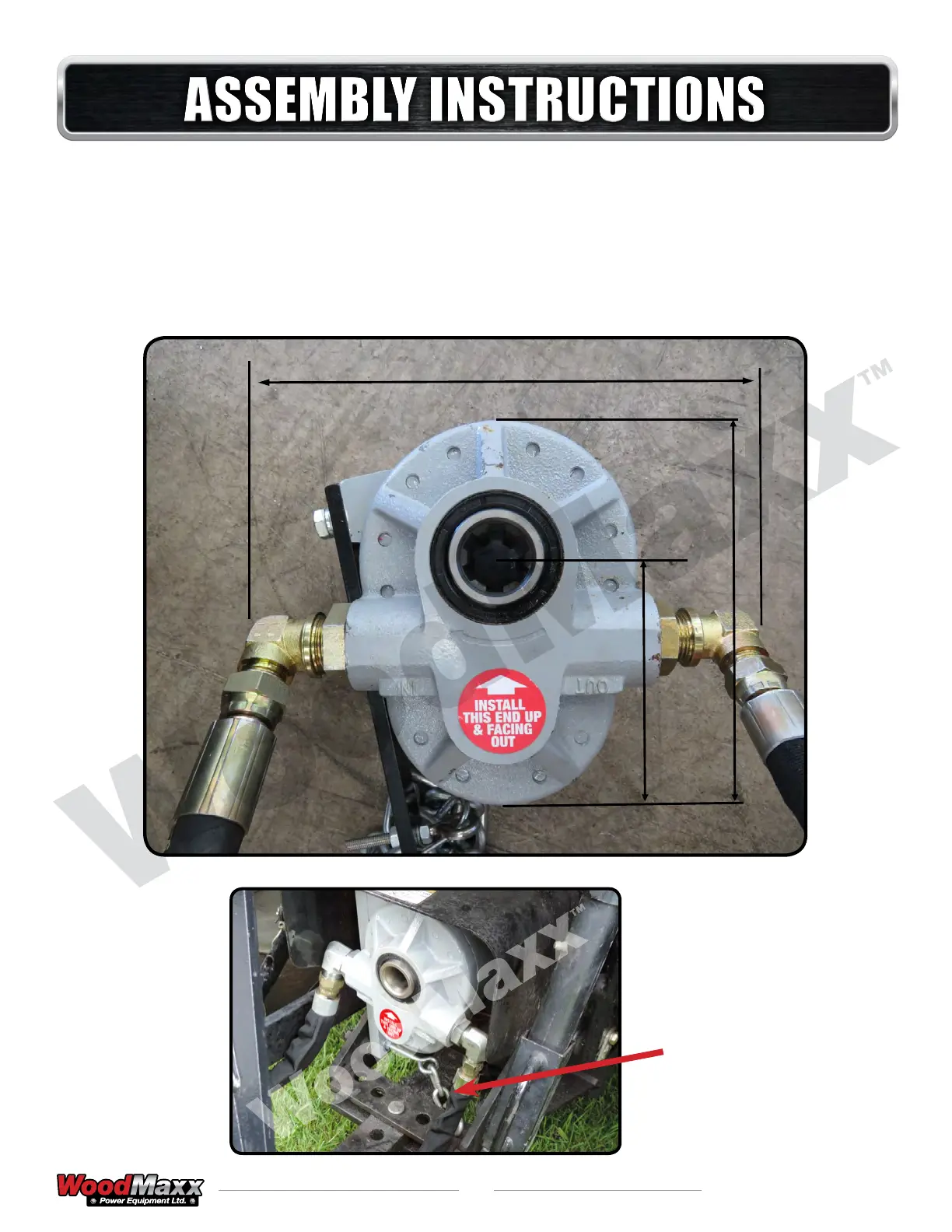

This is the NEW Woodmaxx PTO pump for all models of WM series backhoe. It
requires no gear oil and is sealed and maintenance free. Simply attach your hoses,
slide the pump over the tractor PTO output shaft and afx the chain to a place on your
tractor so that the pump cannot rotate due to the torque of the PTO or slide off.
Ax chain to your
tractor on this side
of the pump as
shown above.
