ASSEMBLY INSTRUCTIONSASSEMBLY INSTRUCTIONS

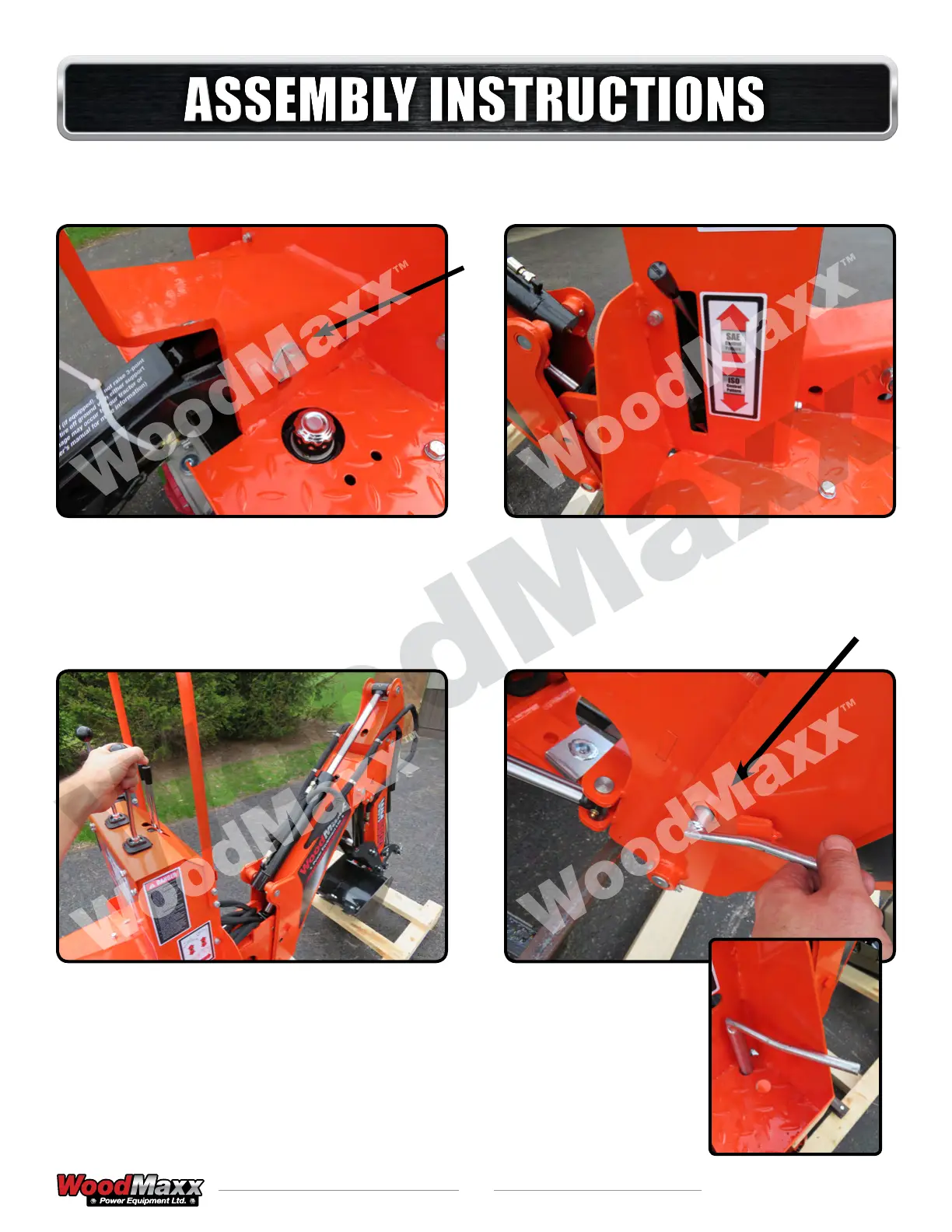

Install the M20 x 190mm bolt as shown. Be
sure to install the spacer bushing on the bolt
(30mm or 1-3/16 socket, crescent wrench)
Adjust the SAE/ISO selector lever to the SAE
setting.
Remove the boom travel pin by following
these steps.
• Start your tractor and engage the PTO at
idol.
• Pull back slightly on the right side control
lever to take the pressure off of the travel pin.
Remove the travel pin.
(Above)
Store the travel pin.
(Right)
Keep the engine
running for the next
step.
Assembly Instructions (continued)
To Next Page
