ASSEMBLY INSTRUCTIONSASSEMBLY INSTRUCTIONS

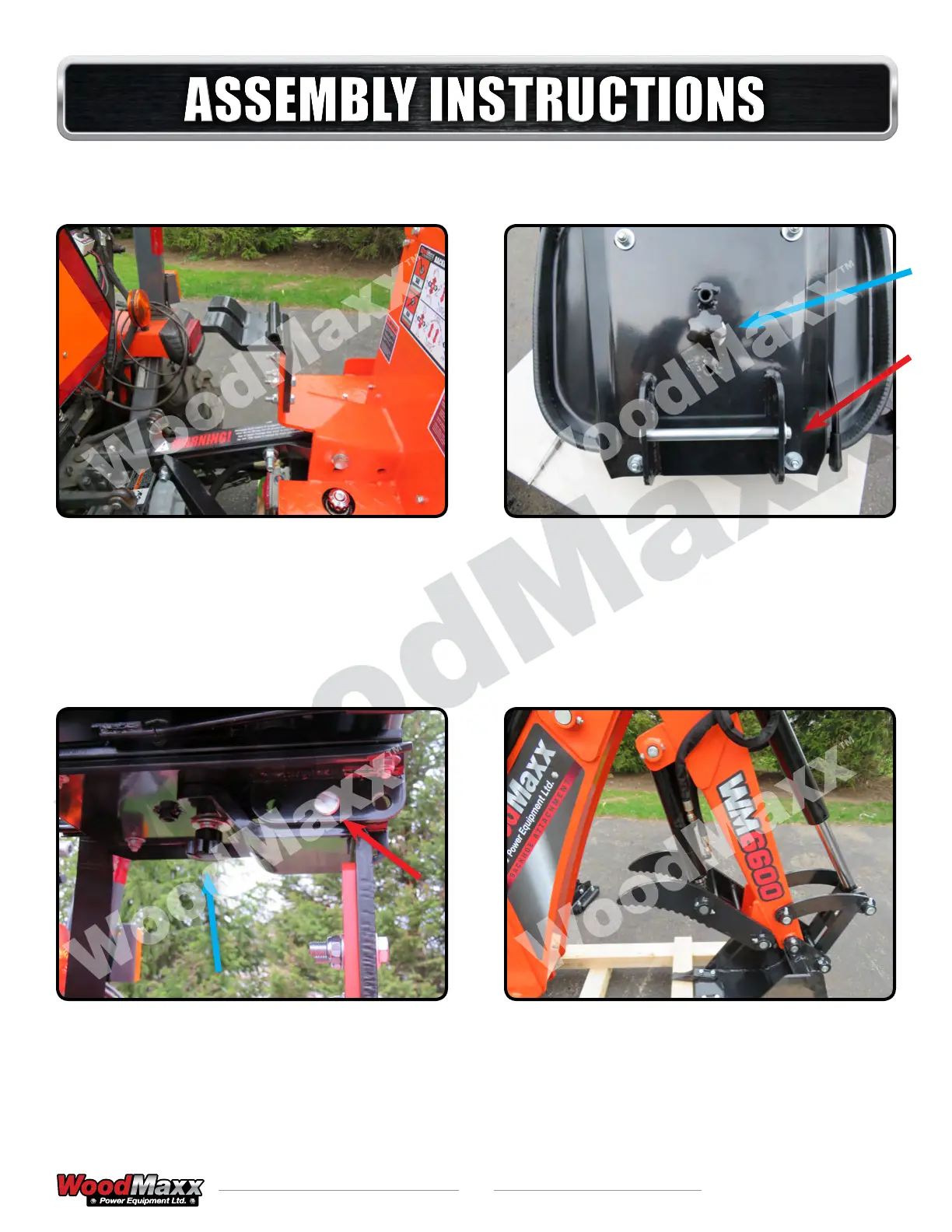

Attach the seat bracket as shown using
(4) - M12 x 50mm bolts. There are 6 holes that
allow for mounting the bracket either high or
low, this is your choice. The lower holes allow
for a 19” seat height, and the upper holes
allow for a 21” seat height. (18mm wrench,
3/4” wrench)
Remove the seat pin (red arrow) and the
thumb screw (blue arrow) from the bottom of
the seat.
Attach the seat using the seat pin (red arrow)
and the thumb screw (blue arrow)
If equipped, install the hydraulic grab thumb
as shown, or the mechanical grab thumb.
(13mm or 1/2” wrench)
