1.3.11 Operating mode: Continuous operation
1.3.12 Type of protection against electric shock: Class II equipment
1.3.13 Degree of protection against electric shock: Type BF applied part
1.3.14 Degree of protection against harmful ingress of water: Ordinary
equipment 1.3.15 Protection degree against water (used on the foot switch): IPX1
1.3.16 Applied part of the equipment: handpiece and tip
1.3.17 Degree of safety of application in the presence of a Flammable
Anaesthetic Mixture with air or with Oxygen or Nitrous Oxide: Equipment not
suitable for being used in the presence of a ammable anaesthetic mixture with
air or with oxygen or nitrous oxide.
1.4 Installation of the main components
Sketch map for installation and connectiom.

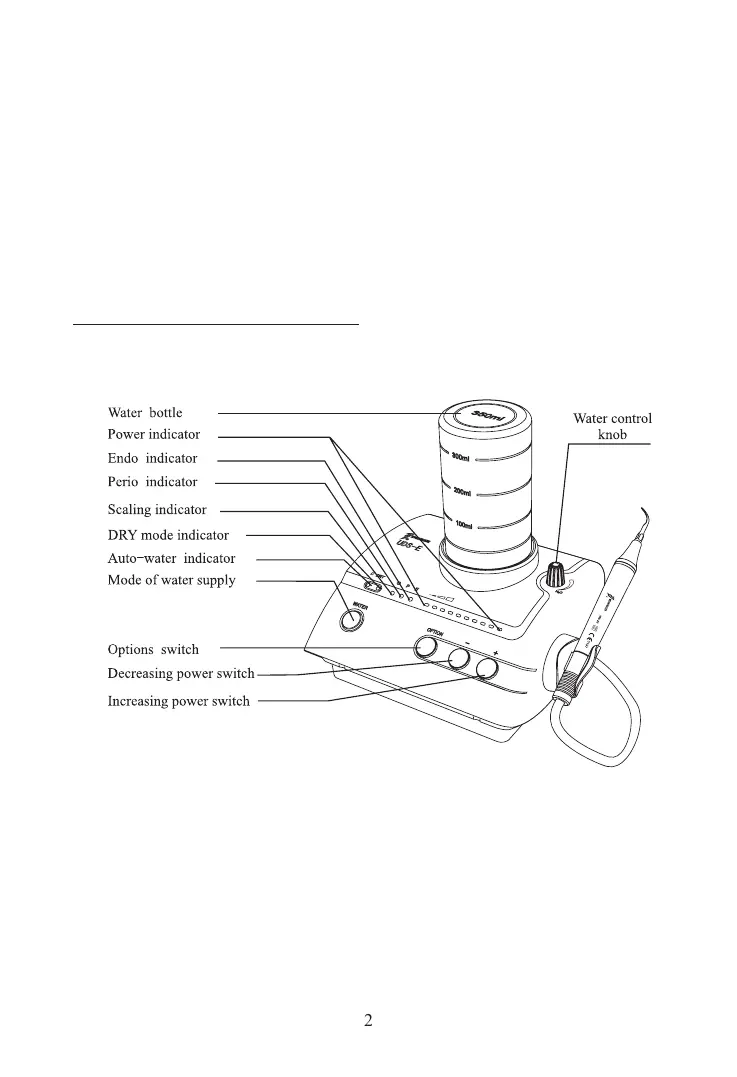

1.4.1 The front and back sketch map of the main unit
Figure 1
