10 Operation
MAN1260 (4/09/2018)
Figure 6.
Top Link Adjustment
Figure 7.
Caster Wheel Distance
FRONT CASTER ARM CONFIGURATION
For PRD6000E & PRD7200E only
The front casters can be set in two positions. Figure 8 shows the two possible
configurations for the PRD6000E and PRD7200E front caster arms.
●
The inner position allows the outside edge of the mower to be used for
trimming under shrubs or fences.
●
The outer position provides the most clearance for rear tractor tire inter-
ference.
To change configurations, remove the cap screws and nuts and move the arms
from one side of the wheel rail to the other. Secure with same hardware.
The rear caster arms should be mounted as shown.
NOTE: The PRD8400E front caster arms are fixed and cannot be changed.

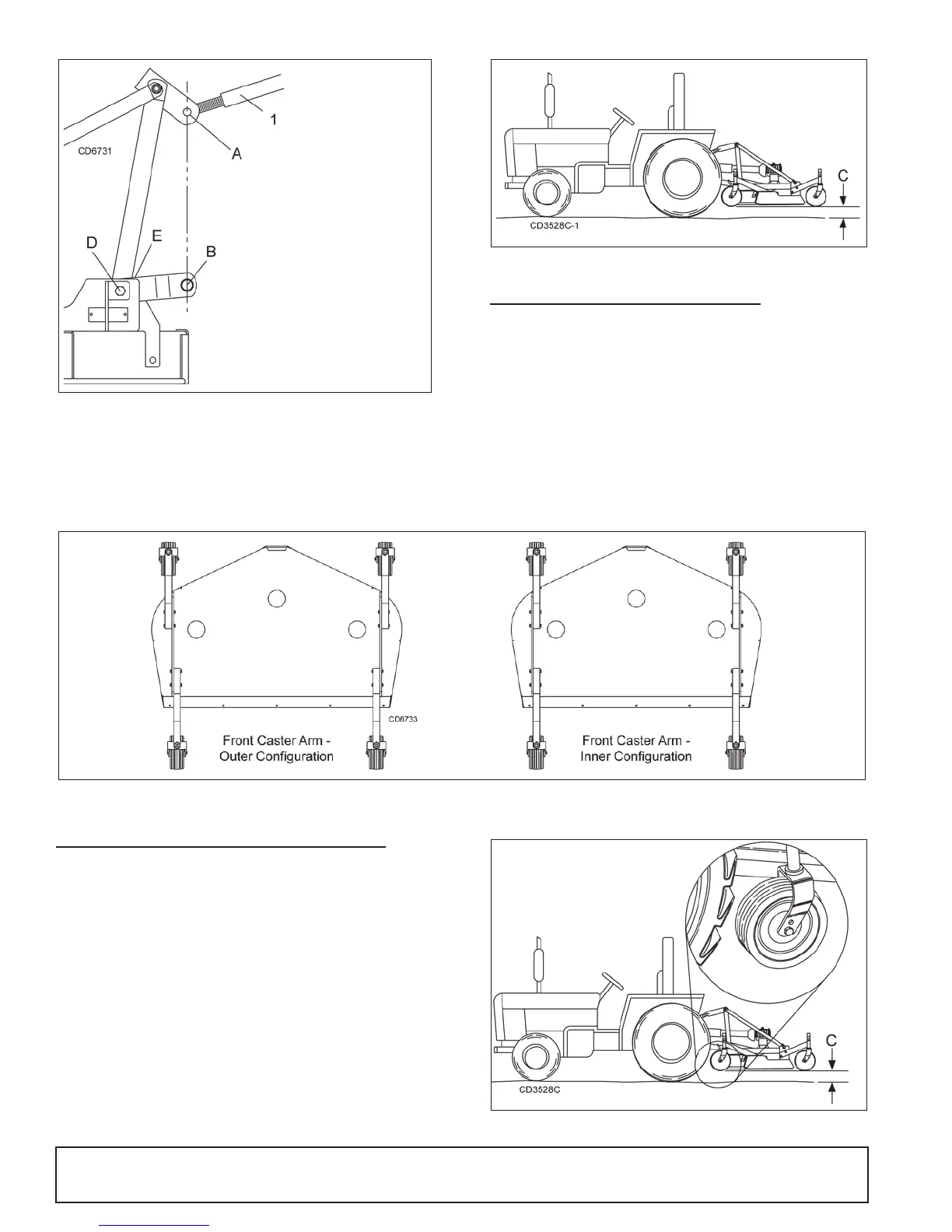

Figure 8.
Front Caster Arm Configuration for PRD6000E & PRD7200E Only
FRONT CASTER WHEEL INTERFERENCE CHECK
NOTICE
■
Do not operate tractor and mower until this interference check
has been performed. If you change tractors, you must perform the check
for that mounting.
Figure 9
. Front Caster Wheel Interference Check
1. Tractor top link
A. Mower top link
attachment
point
B. Mower hitch pin
D. Lower hitch
plate attach-
ment point
E. Mower hitch
plate
