Manual 26174 EGCP-2 Engine Generator Control Package
Woodward 191

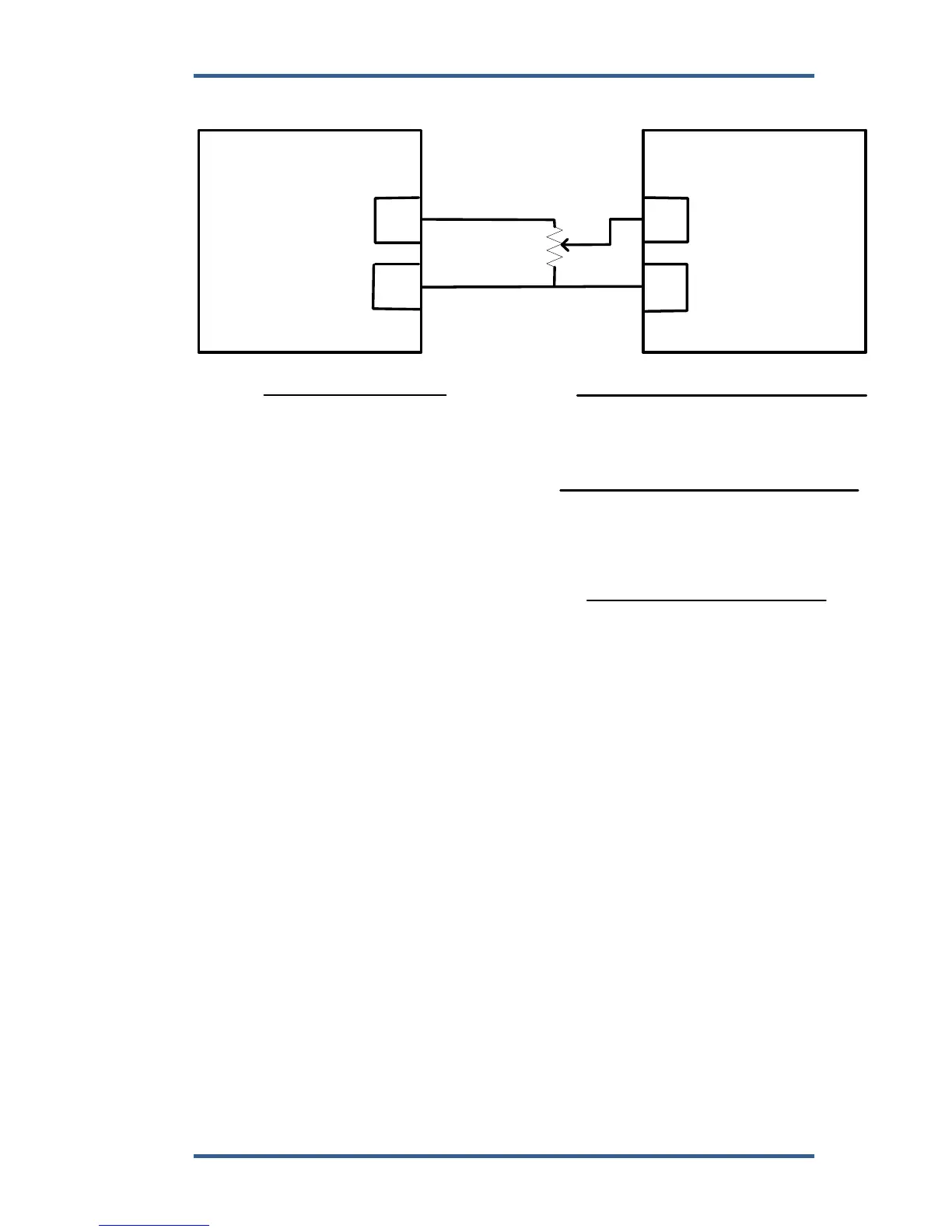

Basler SR4A or SR8A
EGCP-2
Basler
SR4A or
SR8A
Voltage
Regulator
37
38
6
7
Voltage Trim
Potentiometer
250 ohm
Voltage Regulator settings:
Droop - set for 2 to 5 %
In a multiple generator system, set
droop the same on all regulators
Clockwise
Counter Clockwise
Adjustment Procedure
Start Generator
1. Set the Voltage Adjust potentiometer
on the SR4A or SR8A for Rated Voltage
of generator set. (course adjustment)
2. Use the Voltage Trim potentiometer
to fine tune the Rated Voltage. This is
the potentiometer shown above.
3. The Voltage Trim potentiometer is
now calibrated and should not be
adjusted anymore.
4. Close the Voltage Raise discrete
input (4) and verify the EGCP-2 can
move the generator voltage in the
increase direction.
5. Close the Voltage Lower discrete
input (5) and verify the EGCP-2 can
move the generator voltage in the
decrease direction.
6. The Reactive Load Menu items may
need adjusted for stable Power Factor
control.
EGCP-2 settings:
Configuration Menu
Voltage Bias Type: +/- 3 VDC
Calibration Menu
Volts Bias Offset: -45%
Shutdown & Alarms Menu
Gen Volt Hi Lmt: * 10 above
rated
Gen Volt Lo Lmt: * 10 below
rated
Reactive Load Control Menu
VAR/ PF Gain: 1.0
Volts Ramp Time: 200
VAR/ PF Sharing Gain: 0.2
VAR/ PF Stability: 2.0
PF Deadband: 0.005
* - These are only
suggested values
Voltage Trim Potentiometer:
250 ohm, 10 Turn, 1 Watt
Set to Mid-Range
Potentiometer value can be a value
of 150 to 250 ohms.
