12

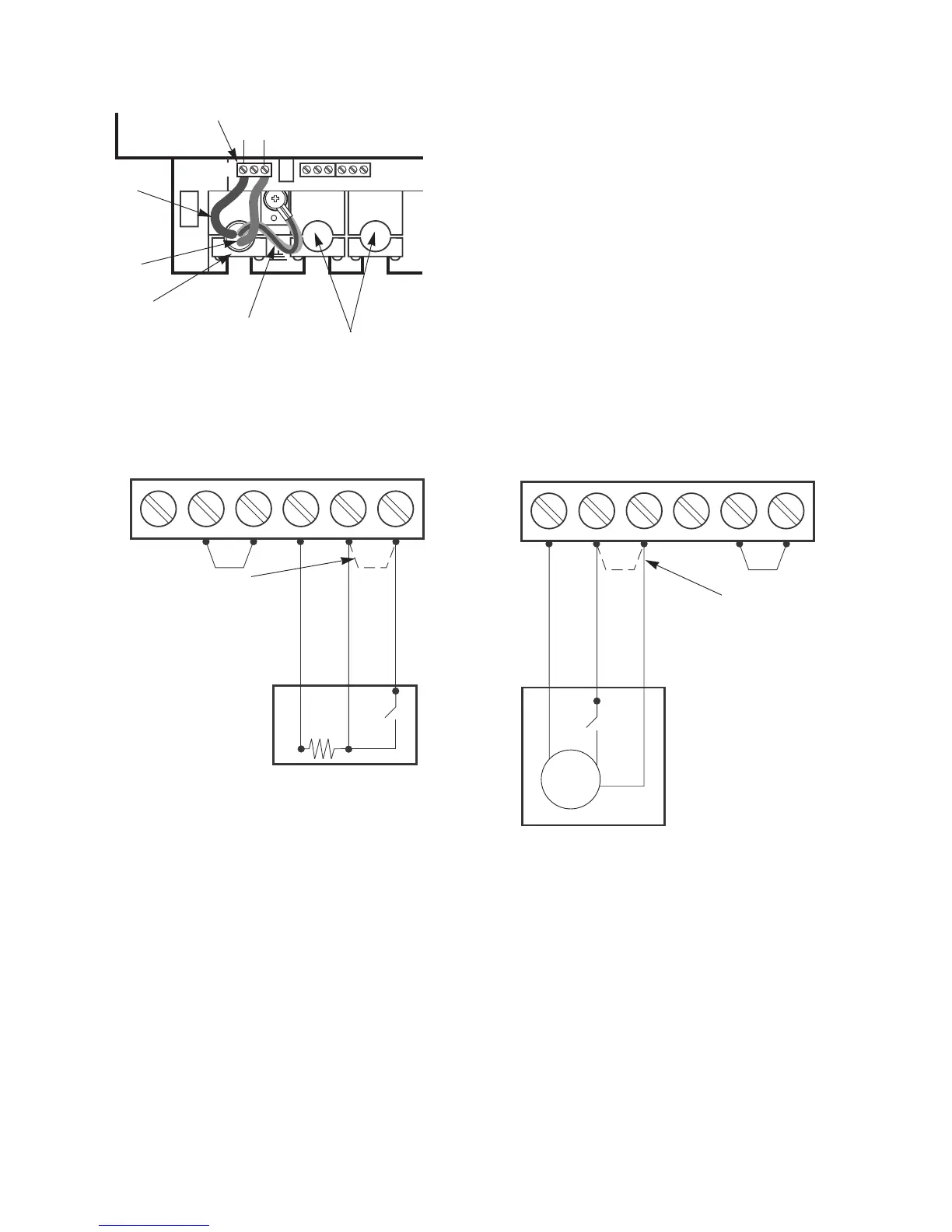

Fig. 11. Mains electricity connections.
Brown
Strain relief clamp
Blue
Brown
Green/yellow
Green/yellow
Programmer and room
thermostat
230V
X1
X2
NL
Blue
Fig. 12. 230V room thermostat connections.
Fig. 13. 230V programmer connections.
RN RI
X2
Remove link
Neutral
Switched live
Live
RL
CN
Motor
CI
X2
Neutral
Switched live
Live
CL
Remove link
