Clearances and ventilation information
11
Greenstar 8000 + – 6721890759 (2024/06)
8 Clearances and ventilation information
8.1 Appliance clearances
Your installer will have provided adequate space around the appliance
for operation, safety and servicing/maintenance access.
• The following detail the necessary clearance around the appliance for
service and maintenance.
CAUTION
Risk of damage to appliance or property
The appliance will overheat if the clearance space around the appliance
is restricted by objects.
Ā Do not restrict this space with the addition of cupboards, shelves etc.
next to or around the appliance.
Ā Do not store any combustible materials on or next to the appliance,
such as clothes, towels, paper or plastic bags.

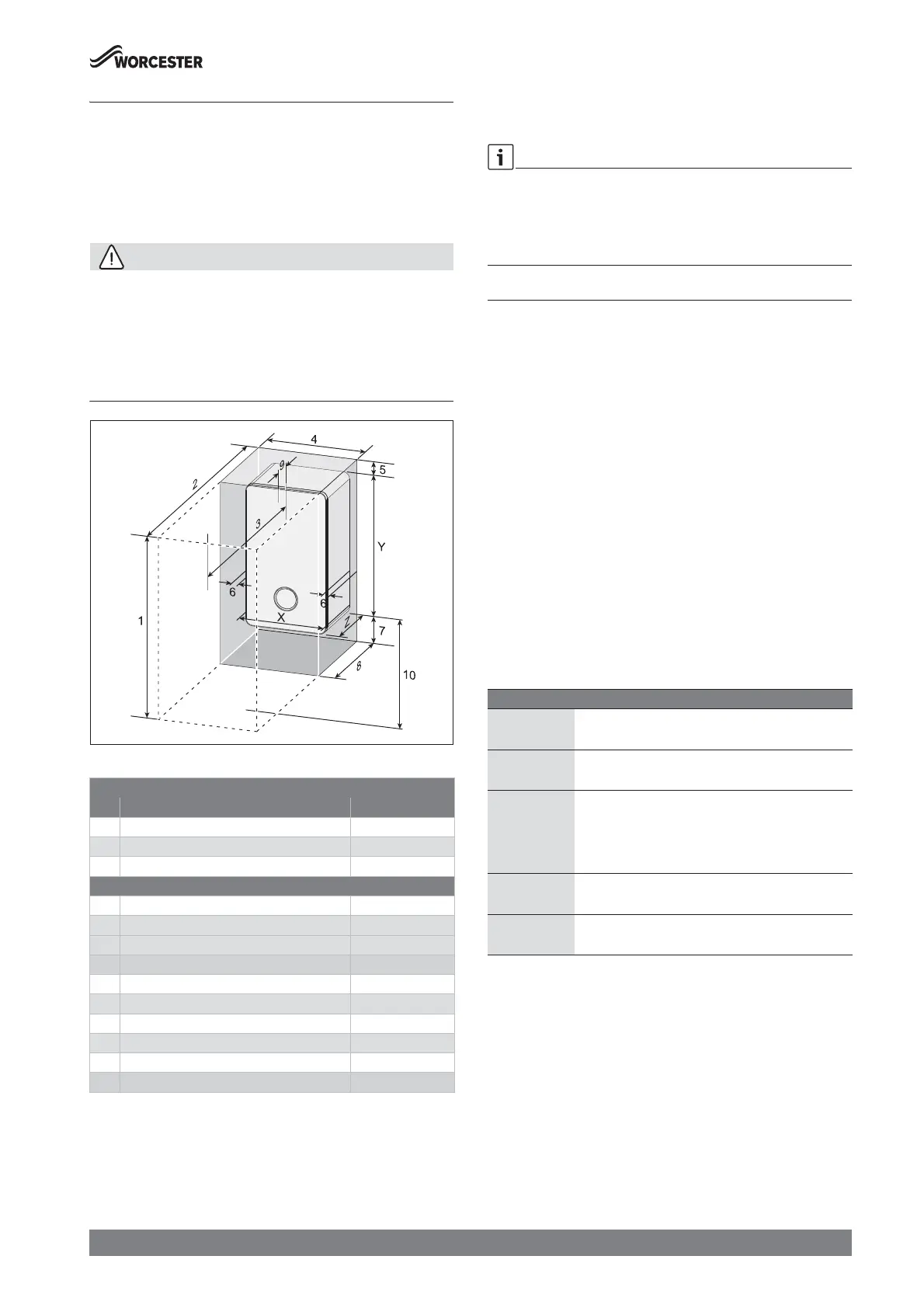

Fig. 9 Appliance minimum clearances
Table 7
[*] Height for either 60/100 flue or 80/125 flue
8.2 Ventilation information
The air supply must not be restricted or contaminated.
Ventilation considerations
Ā Do not place objects to hinder the air circulation required by the
appliance.
Ā The installation premises may require ventilation to be fitted
according to its features or use.
9 Malfunction or failure
If you believe there is a problem with your central heating or hot water
supply, before you contact your installer/maintenance engineer and
report the error and appliance type carry out the following checks.
Basic checks
Some items to check before placing a call are:
• Is the electrical power switched on to the appliance?
• Is the programmer/timer set to ON or in an ON period?
• Is the room thermostat set too low?
• Is the cylinder thermostat (if fitted) set too low?
• Is the cold water main turned on?
• Sealed heating system:
– Is the static system pressure (when appliance is cold) between
1 and 1.5 bar?
•Do you have gas?
– Are other gas appliances working, gas cooker/hob for example?
– Has your credit run out on your gas pre-payment meter?
Details of your installer should be available in the Commissioning
Checklist or can be recorded in the following section.
Installer/maintenance engineer
Table 8
Minimum clearances
Description Dimensions [mm]
X Appliance width 440
Y Appliance height 780
Z Appliance depth 365
Installation/Maintenance
1 Overall clearance height 1,150/1,190*
2 Overall clearance depth 965
3 In front of appliance 450
4 Overall clearance width 450
5 Above the appliance 170/210*
6 Either side of appliance 5
7 Below the appliance 200
8 Compartment depth 385
9 Appliance to removable door 20
10 Min clearance to the floor 400
Installer/maintenance engineer details
Engineer name:
Company
name:
Company
address:
Telephone:
Email:
