Worcester HEATSLAVE 9.24 RSF

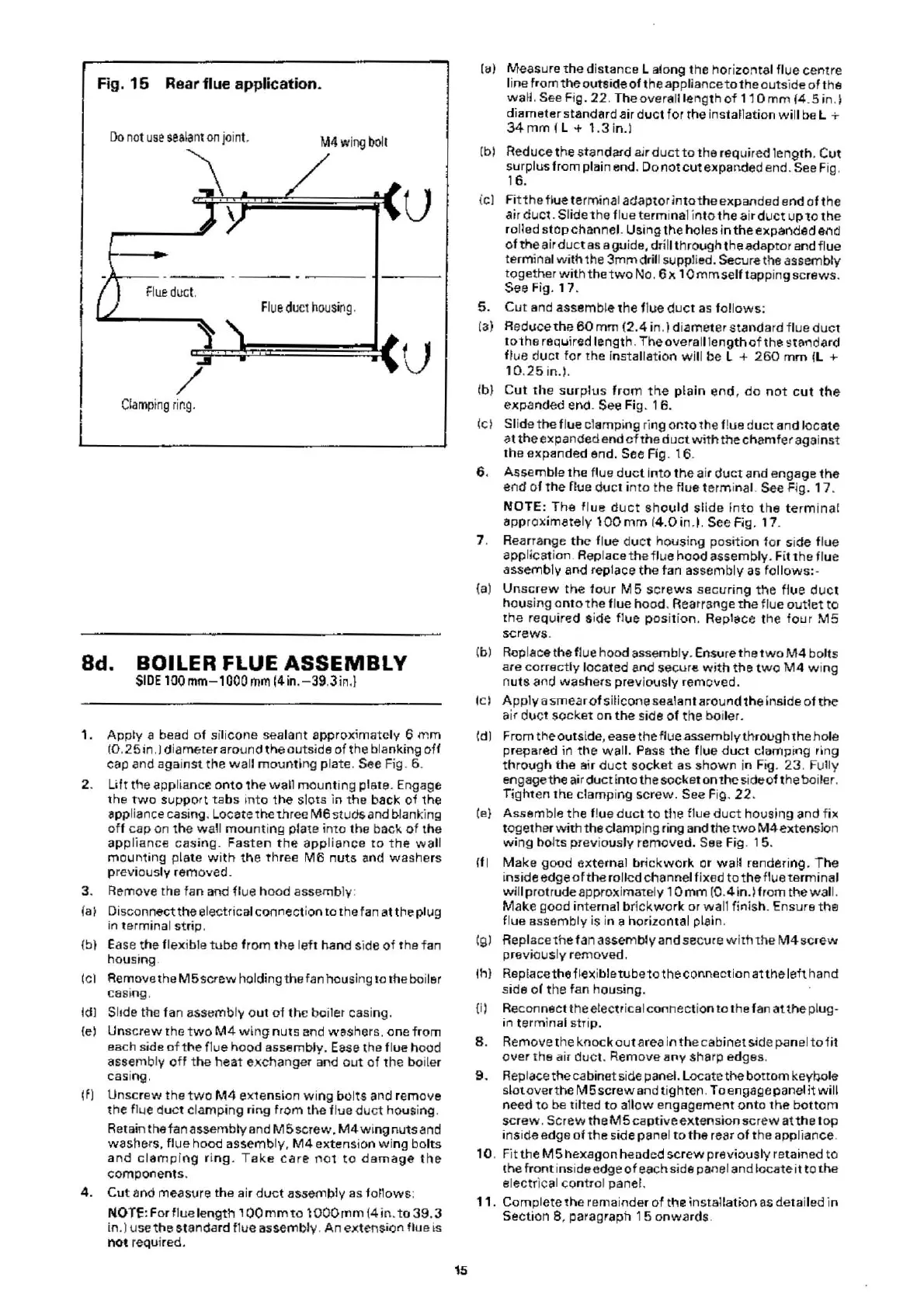

Fig . 15 Rear flue application.
M4w ing boll
v
Flue duct.
Fl ue du ct housing .
cra mp ing ring.
8d. BOILER FLUE ASSEMBLY
SIDE 100 mm - 1 000 mm 14 in. - 39 .3 in.)
1. Apply a bead of sil icone seal ant approximately 6 mm
10.25 in . l di amete r arouncHhe outside of the blanking off
cap and agai nst the wa ll mounting plat e. See Fig. 6.
2. Lift the appliance onto 1he wall m oun ting plate. Engage
the two supp ort ta bs into 1 he slots in t he back of the
appliance casi ng . Locete the three M6 studs and blanking
of f cap on the wall mount i ng plate into th e back of the
appl i ance casing. F asten t he a pp li ance to the wa ll
mounting plate with tl'le t hree M6 nuts and washers
previous ly rem oved.
3. Remove the fan and flue h ood asse mb ly:
(a~ Disconne ct the elec tr ica l connec t io n to the fan at th e plug
in t erminal st rip.
{b} Eas e the flexible tube f rom th e left hand side of the fan
ho using.
(cl Remove theM
5screw holding t he fan housing to th e boiler
casi
ng ,
ldl Slrde the fa n asse mbly o ut of th e boiler casi ng .
{e) Unsc
rew the two M4 wing nuts and w&shers. one from
each side of the flue hood assemb ly . Ease th e flue hood
assembly
off the heat ex cha nger and out of the bo iler
casi
ng .
(f) Unscr ew the t wo M4 ex tension wi ng b olts and rem ov e
the flue duc t clamping ring from the tl ue duct ho usi ng .
Retainthetanassemblyand M5 scre w. M4 w in gnutsand
washers, flue hoo d assembly , M4 extensio n wing bo lt s
and cl amping ri ng . T ake care no1 t o damage t he
c ompone n ts .
4. Cut and measure the ai r duct assem bly as fo llows :
NOH:: For flue le ngth 1 00 mm to l 000 rnm (4 in. to 39 .3
ln.) u se
ttte standa rd flue assembly . An ext ens i on flue is
not requir ed.
15
(~) Meas ure the di stance L alo ng the horizonta l flue centre
li ne from tl)e outside of the appliance to the outsid e of the
wa ll. See fig. 22 . The over all le ngth of 11 0 mm (4 . 5 in.)
diam eter standard air du ct for the instaJiation will be L +
34 mm( L + l.3i n. )
(b) Re
du ce the stan dard air duct to the req uired leng th . Cut
surplus f rom pi !lin end. Do not cut expanded end. See Fig.
16.
icl Fi t the flue te rminal adaptor i nt o the ex panded end of th e
air
duel. Sl id e the flue termi na l i nto the air d uct up to th e
ro lled s top channel. Using the holes in the ex panded en d
of the air du ct as a guide, drill thr ough the ada ptor and fl ue
te rm inal with the 3mm drill supplied. Se cure the assembly
togetherwiththetwoNo . 6 x 10 mmse lft appi ngsc re ws .
See Fig. 17 .
5. Cut and ass emb le the f lue duct as f ollows:
(a) Redu ce the 60 mm (2.4 in.} di am eter st and ard f lue d uc t
toth e required leng th . The overall l ength of the s t!lndard
ll ue duct for the installation will be L + 260 mm (L +
10 . 25 in.).
(b) Cut th e surplus fr om the p la in e nd, do n ot c ut the
expanded end. See Fig. 16.
(c) Slide the flue cl am pi ng ri ng or:to the f lue duct and l oca te
at the expanded e nd cfthe d uct w ith the ch amfer against
th e expanded end. Se e Fi g. t 6.
6 .
Ass em ble the flue duct Into t he ai r duct and engage th e
end of the flu e duct i nto the fl ue terminal. See Fig. 17.
NOTE : The fl ue d uc t sh ould slide int o the te rm ina l
approx
imate ly 100mm ( 4.0i n.) . See Fig. 17 .
7. Rearrange the fl ue duct hous i ng position for si de flue
applica tion. A ep l acethef lue hood assembly . Fit t he fl ue
assembly and rep lace th e tan as sem bly as fol lows: .
(
a) Un sc rew the four M 5 screws sec uring the flue duct
housing o nt o the flue ho od. Rearrange the flue outlet to
t he required si de flue p osi t io n. R epl a ce the four M5
screws .
(b)
Replace the flue hoo d asse mb ly. Ensure the t wo M4 bo lt s
are c or rect ly l ocated and secure with the t wo M4 w ing
n
ut s and wa shers previous ly rem c ved.
tc) A pply a srnear of siticone seal ant around the in side of the
air duc t socket on th e si de of the boiler.
(d) From the o uts ide, ease the fl ueassembly th ro vghtheho le
prepared
in the wal l. Pa ss th e flu e duct dampi119 ring
th
ro ugh the air duct socket as sho wn in Fig. 2.3 . Fully
engage
the air duc t i nt o the socket on the side of the boiler.
T
igh ten the clamp i ng scr ew . See Fig. 22.
(e} Assemble the flue duct to th e flue duct housing and fix
together w it h the clampi ng ring and th e two M4 exte nsi on
wi ng bolts previ ously rem ov ed . See Fig. 15.
lfl Ma ke go od ex ternal bric k work or wall rendering. The
i nside e dg e of the rolled chann el fixed to the flue te rmi nal
will pr ot r ud e approximately l Omm (0 . 4in. )fr om the wall .
Make good in te rn al b rick wo rk or wall fin is h. E ns ure t he
flue assem bly is in a horizo
nta l plai n.
( g) Replace th e fan as sembly and secure with t he M4 screw
prev i ous ly r emoved .
lhl Rep!acettte f lexi bl e tub eto the connection at the l eft hand
side or the fan ho using.
(i) Re
co nnect the elec tr ical co n nec tion to the fan at t he plug-
in terminal stri p.
8 . Re
mov e t he knock out area in th e c abinet side p< m el to fit
over the air duct . Remove a ny sharp ed ges .
9 . Replace
the cabin et side panel. Loc ate the bo tt om keybo le
sl ot ove r the M5screw andtighten. To e ng age pa nelit wil l
ne ed to be t il ted to allow engagement on to the b ot tom
sc r ew . Screw theM 5 ca pti ve ex t ension s cre w at t he t op
ins ide edge of the side pane l t o the rear of the appli ance .
10 . Fit theM 5 h exagon he L)ded scr ew pr evio usly retai ned to
the fr ont inside ed ge of each s id e panel a nd lo ca te it to th e
elec
tr ic al control panel.
11.
Complete the remainder of the ins ta llat ion as deta iled in
Section 8. paragraph 15 onw a rd s.
