Worcester HEATSLAVE 9.24 RSF

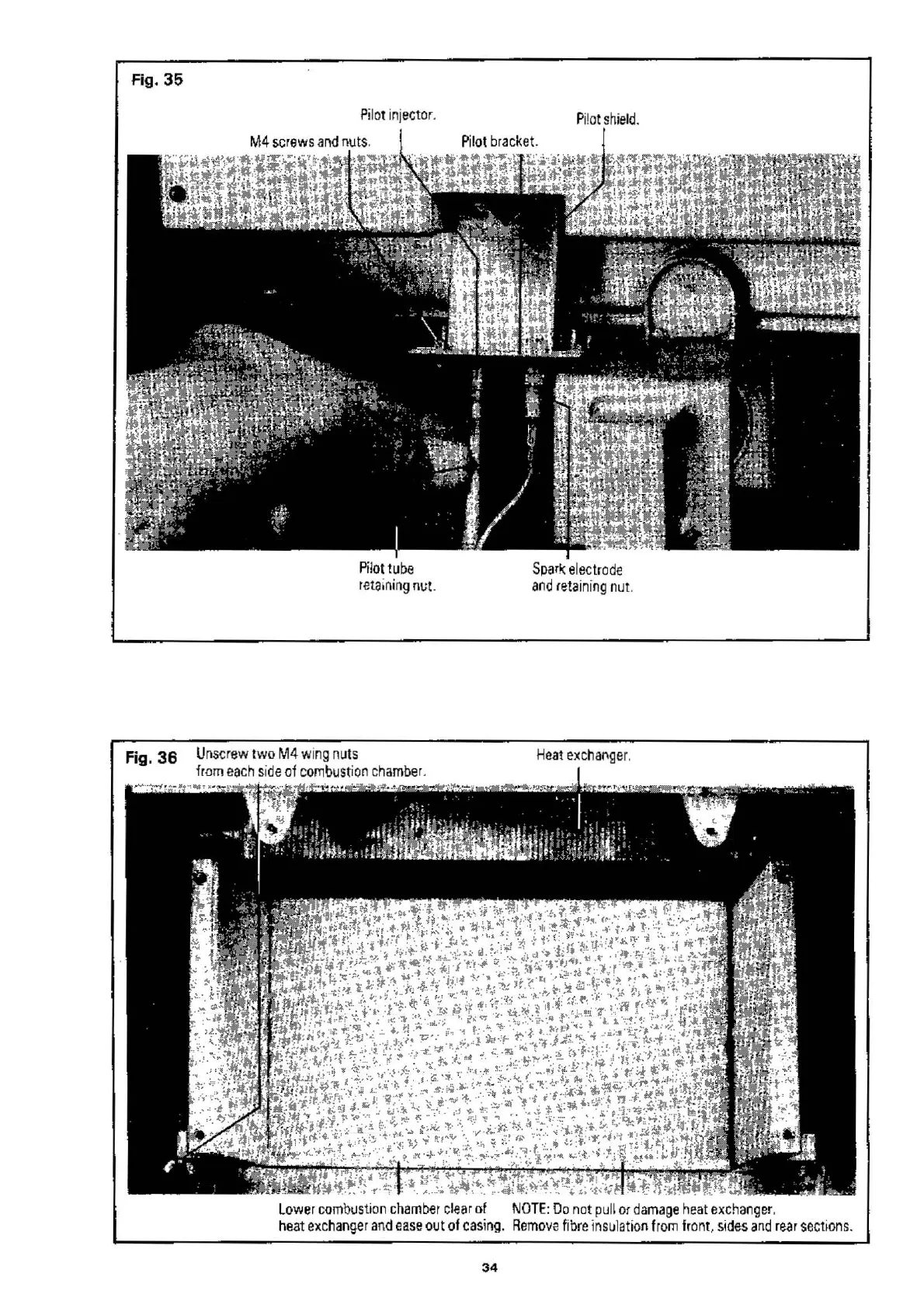

Fig. 35
Fig. 36
Pi l ot inj ector .
M4 s crews and nuts .
Unscrew two M4 wi ng n uts
Pilot tube
retaining nut.
f rom each si de oi combust i on chamber .
P
i! ot shie ld.
Pilot
bracket.
Spark electrode
and retain i ng n ut.
He at exchal'ge r.
Lowe r combustion chamber cl ear Gf NO TE: Do not pull or damage heat e xcha nger ,
hea t exchanger and ease ou t of c as in g. Remova fibre i nsu lat ion fro m f ron t, sides and rea r sections.
34
