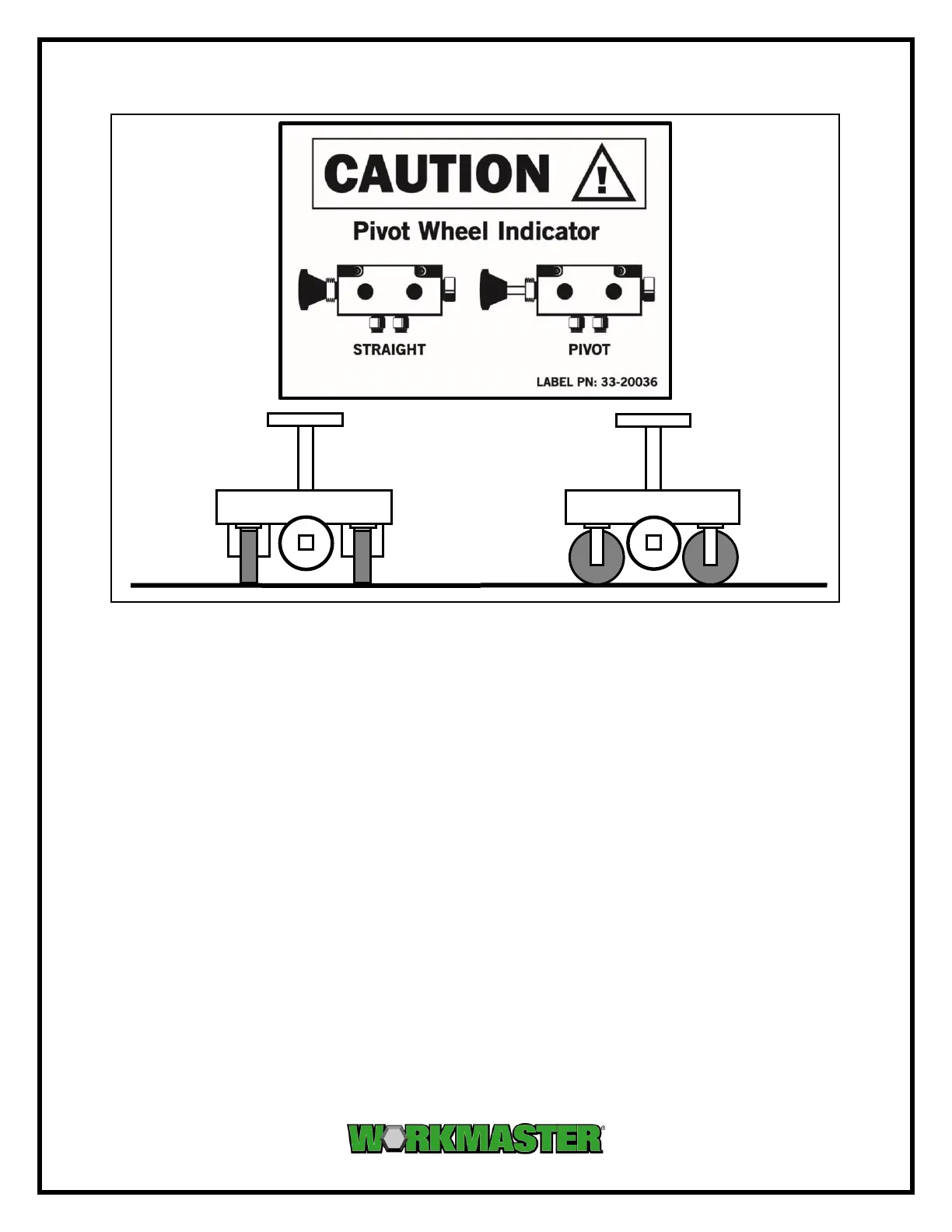

Figure 2: Pivot Pull Switch Label
6. WHEEL-AXLE ASSEMBLY
The Wheel-Axle Assembly supports the GO-A13-HA Rolling Cart on wide
stance, flat-free tires, providing excellent balance. The wheels are attached
and secured to the axle by a cotter pin. The Wheel-Axle connects the wheels
to the left and right Forks. The Forks are welded to a pivot bar which is
actuated by a cylinder via the Pivot Pull Switch (Item 3).
7. IMPACTOR
This heavy duty, reversible, pneumatic motor requires a source of clean, dry
compressed air for producing the torque output. For a breakdown showing all
the parts within the Impactor refer to the Maintenance Manual. The Impactor
can pivot approximately 15 on its trunnions. For performance ratings, See
Table 1 located in the beginning of this section.
8. TOOL BOX
The Tool Box, bolted to the front face of the Pivot Guard, provides easy
access storage for essential GO-A13-HA accessories. When not being used,
the Drive Fitting, Swage Tool and Anvil Extensions should be stored in the
Tool Box, and not on the Impactor's square drive.
