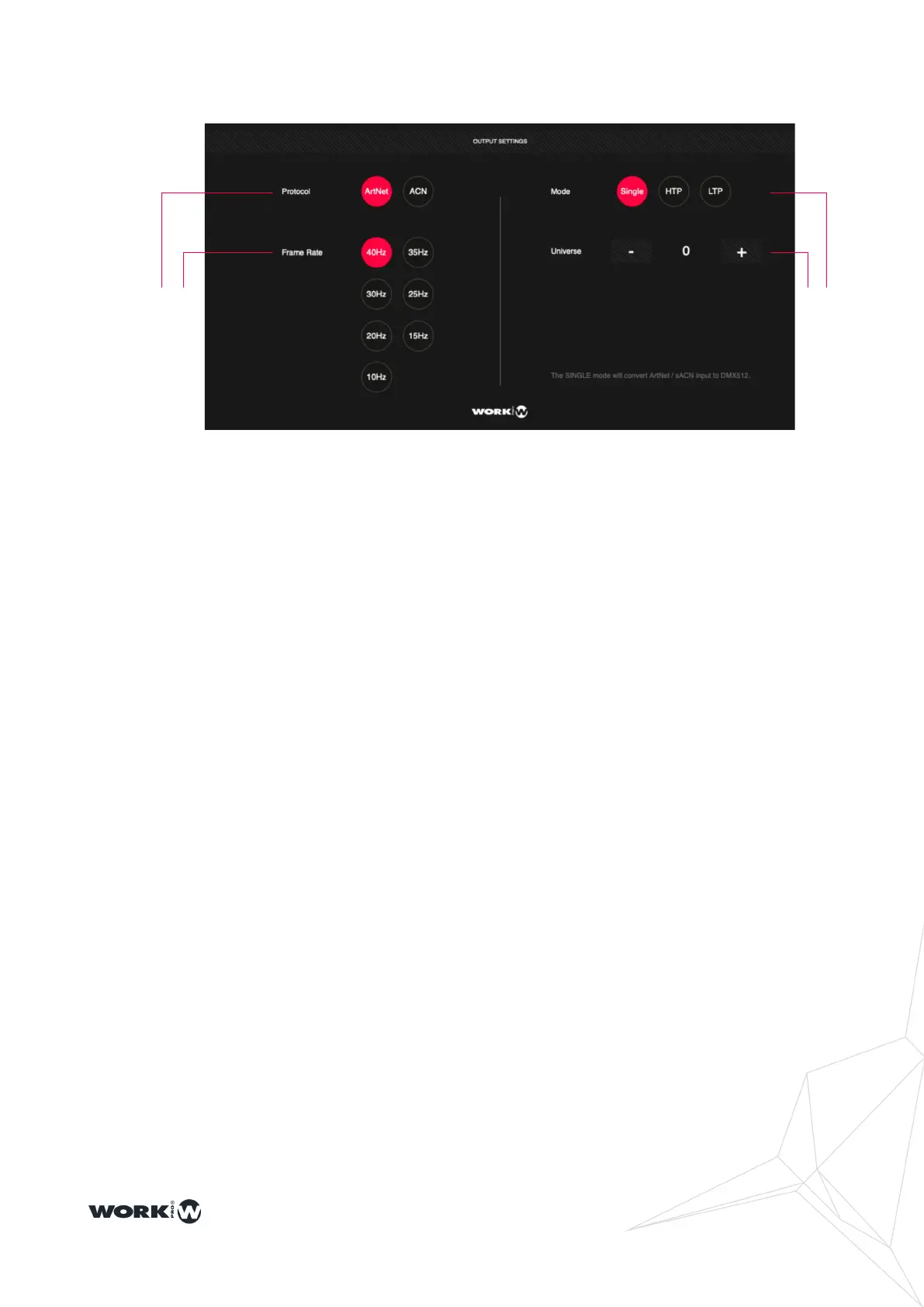

1: PROTOCOL, allows you to select between the different supported protocols.
ArtNet is a communications protocol for the transmission of the DMX512-A
lighting control protocol and the remote device management protocol (RDM)
over the user datagram protocol (UDP). It is used for communication between
"nodes" (e.g. intelligent lighting devices) and a "server" (a lighting console or
lighting control software for general-purpose computers).
ACN is a set of network protocols for the control of entertainment technology
equipment, especially when used in live performances or large-scale installations.
ACN is maintained by the Entertainment Services and Technology Association and
its rst ofcial release was ANSI Standard E1.17- 2006 - Entertainment
Technology - Architecture for Control Networks. The standard was subsequently revised
and published as ANSI E1.17-2010.
ACN was initially designed to be placed over UDP/IP and will therefore work over
most IP transports.
2: FRAME RATE, allows you to congure the DMX frame rate of the output ports.
This option is only available when the port is congured as output.
3: MODE, allows you to congure the working mode. Depending on how the port is
congured the Port Direction will be displayed. Section 2.3 and 2.4 describe each
of the possible congurations.
4: UNIVERSE, allows you to select the working universes. Depending on how it is
congured the operating mode ( MODE ) you may see different options.
Section 2.3 and 2.4 describe each of the possible congurations.
