2.4 Setting ports as input

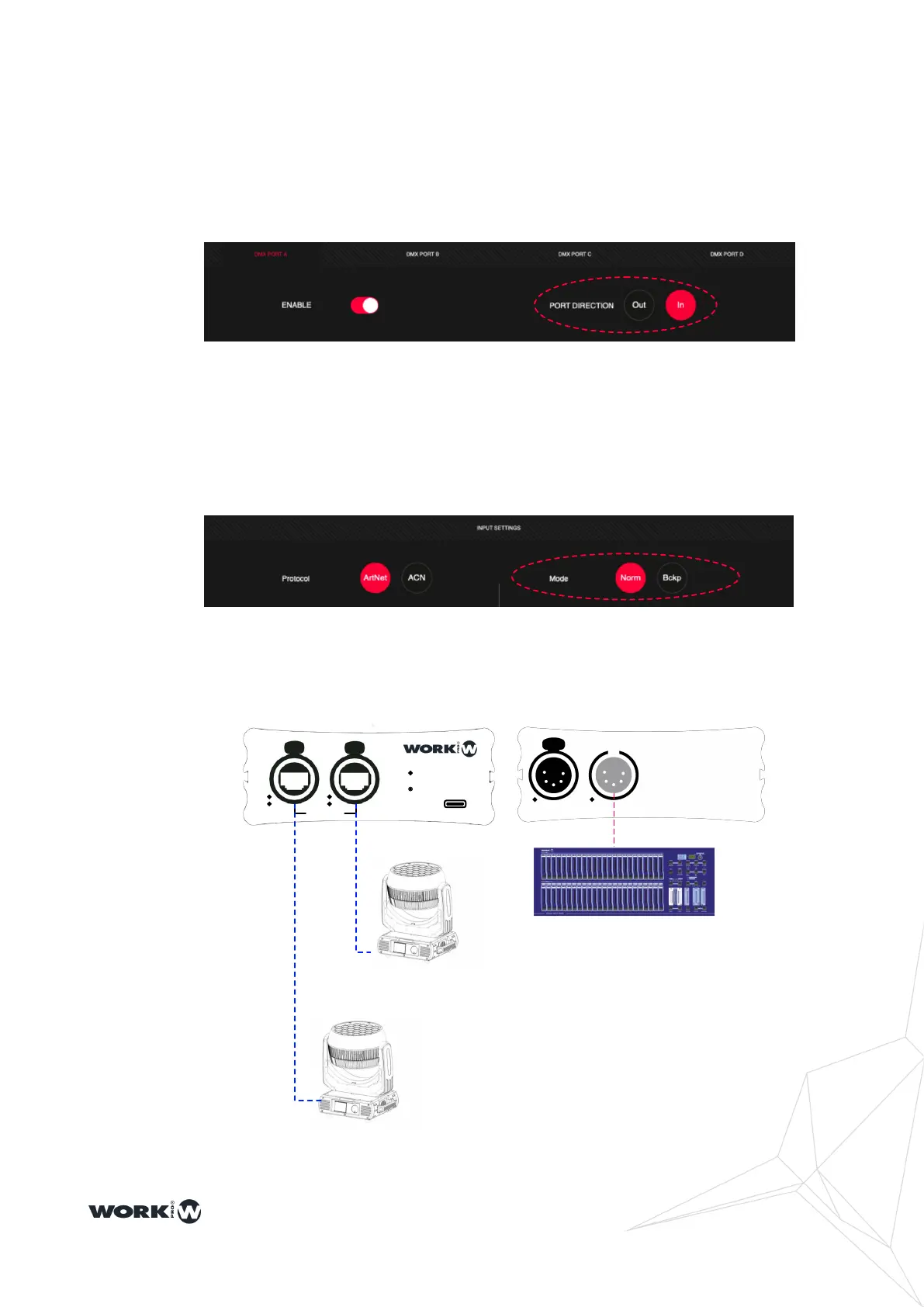

From the PORT SETUP window, select the port you wish to congure and set the "PORT
DIRECTION" property to "IN".
By conguring the port as input the LS-Node will convert DMX information received on
XLR-5 input ports to Art-Net or ACN via Ethernet ports. It is possible to congure the
output mode ( MODE ) as NORMAL or as BACKUP:
In this mode the LS-Node functions as a simple node, converting the ArtNet/ACN input to
DMX.
Normal Mode
ArtNet/sACN TYPE-C:5v,2A
POE
POWER
RESET
DMX OUT DMX IN
ArtNet/ACN Fixture
ArtNet/ACN Fixture
