LS-Node

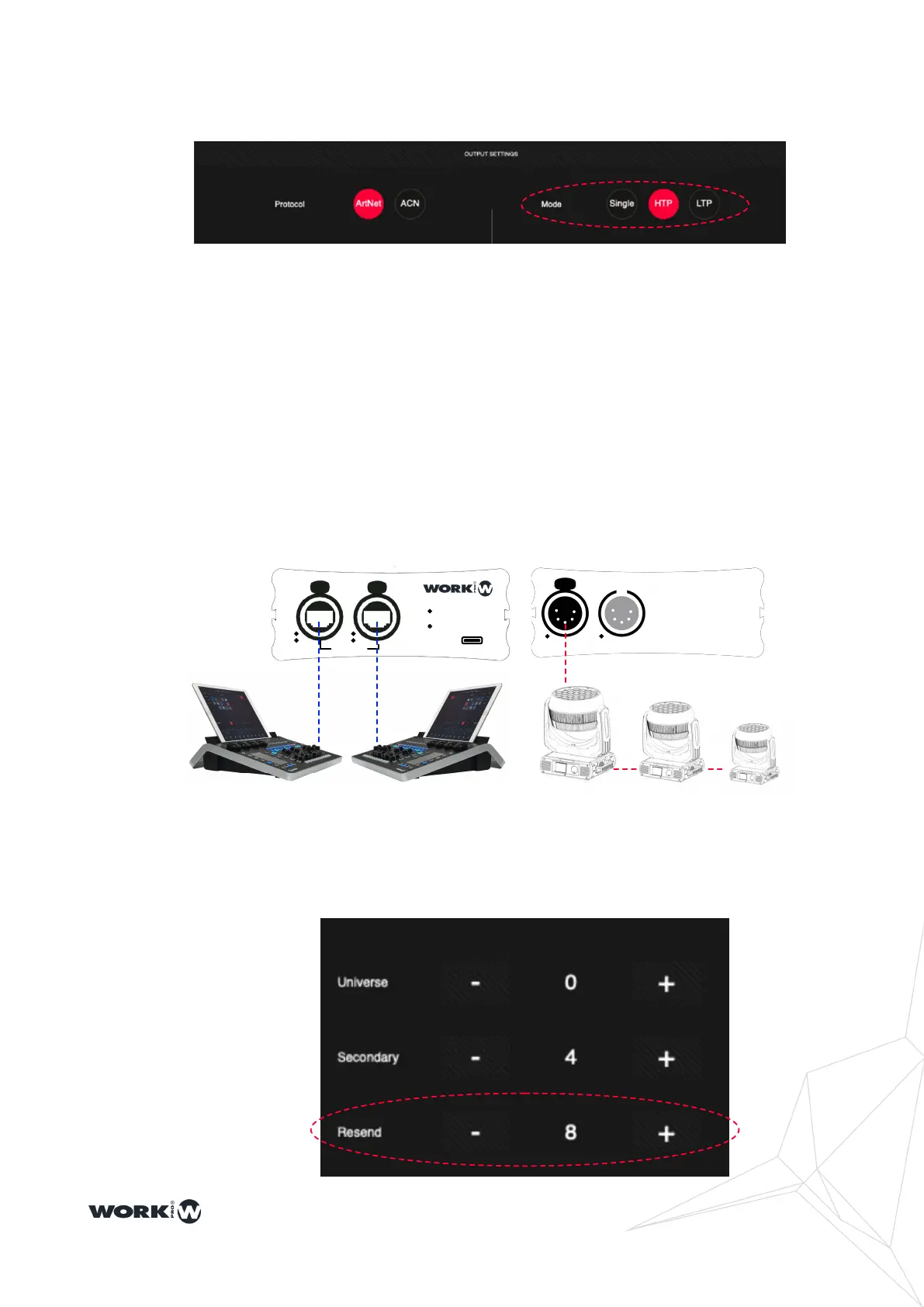

In this mode the ArtNet/ACN input of 2 universe is mixed and converted to DMX. When
merging the two universes it is possible to select the type ( HTP or LTP ):
HTP: In this mode two universes are merged in one using the priority HTP ( Highest
Takes Precedence ) processing the level of each of the channels. This mode is
useful for controlling the same equipment with two different DMX controllers.
LTP: In this mode two universes will be merged into one using the LTP ( Latest
Takes Preference ) priority forwarding universe A ( UNIVERSE ) or universe B
( SECONDARY ) to the DMX output depending on the input that had the last change
of +/- 1 value in any of the channels.
The LS-Node also allows a forwarding of the merger of Universe A (UNIVERSE) and
Universe B (SECONDARY) to a third universe through ArtNet or ACN.
Merger Mode
ArtNet/sACN TYPE-C:5v,2A
POE
POWER
RESET
DMX OUT DMX IN
