2.3 Setting ports as output

From the PORT SETUP window, select the port you wish to congure and set the "PORT

DIRECTION" to "OUT".

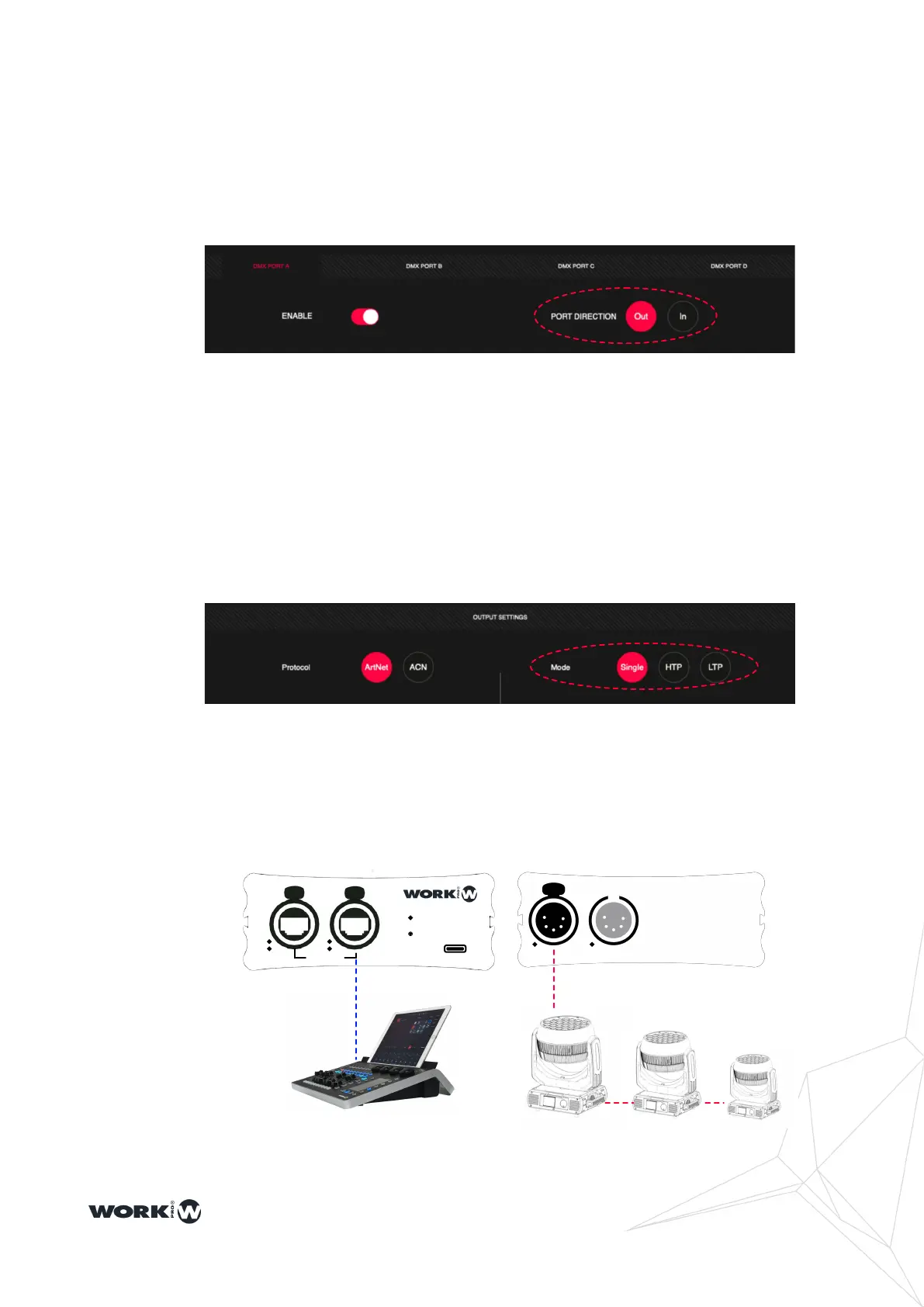

By setting the port as output the LS-Node will convert the ArtNet or ACN information

received on the network ports to DMX via the XLR-5 output ports. It is possible to

congure the output mode ( MODE ) as SINGLE or as MERGER:

In this mode the LS-Node functions as a simple node, converting the ArtNet/ACN input to

DMX.

Single Mode

ArtNet/sACN TYPE-C:5v,2A

POE

POWER

RESET

DMX OUT DMX IN
