LS-Node

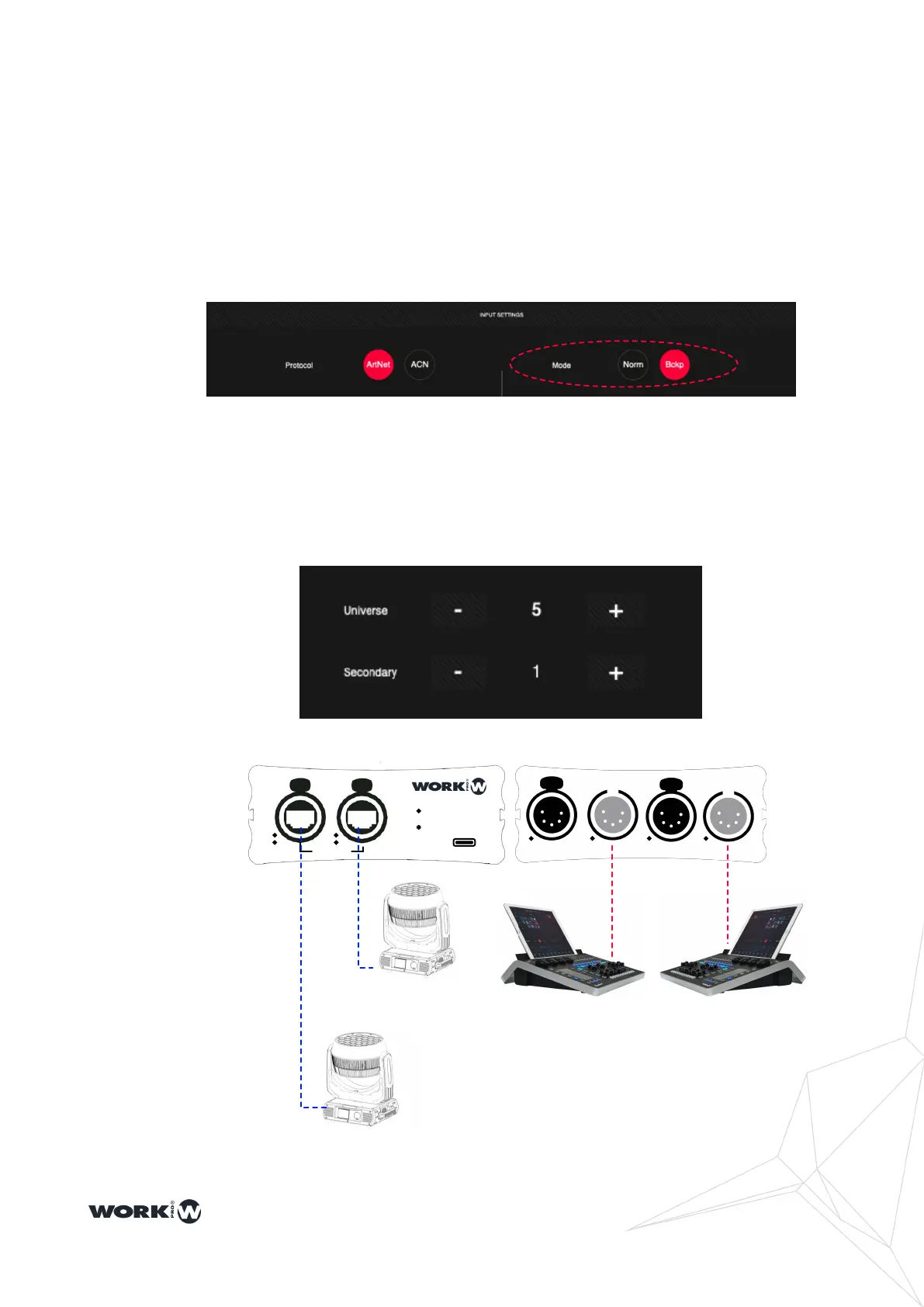

In this mode the LS-Node can be used to connect 2 consoles on the DMX input ports and
send the signal from one of them via ArtNet or ACN. If the signal from one of the DMX inputs
is lost, the LS-Node will automatically switch (after 3 seconds) to the second DMX input port.
If the signal returns the LS-Node will switch automatically again as soon as the rst DMX
frame is received.
Through UNIVERSE you can dene the ArtNet/ACN universe to which the DMX signal
received on the XLR-5 ports will be sent.
Through SECONDARY you can dene the port to which it will switch in case the input
signal of that port is lost.
Backup Mode
ArtNet/sACN TYPE-C:5v,2A
POE
POWER
RESET
DMX-1 OUT
DMX-1 IN
DMX-2 OUT
DMX-2 IN
ArtNet/ACN Fixture
ArtNet/ACN Fixture
