LS-Node
ArtNet/sACN TYPE-C:5v,2A
POE
POWER
RESET
1 2
3 4
5
6
7

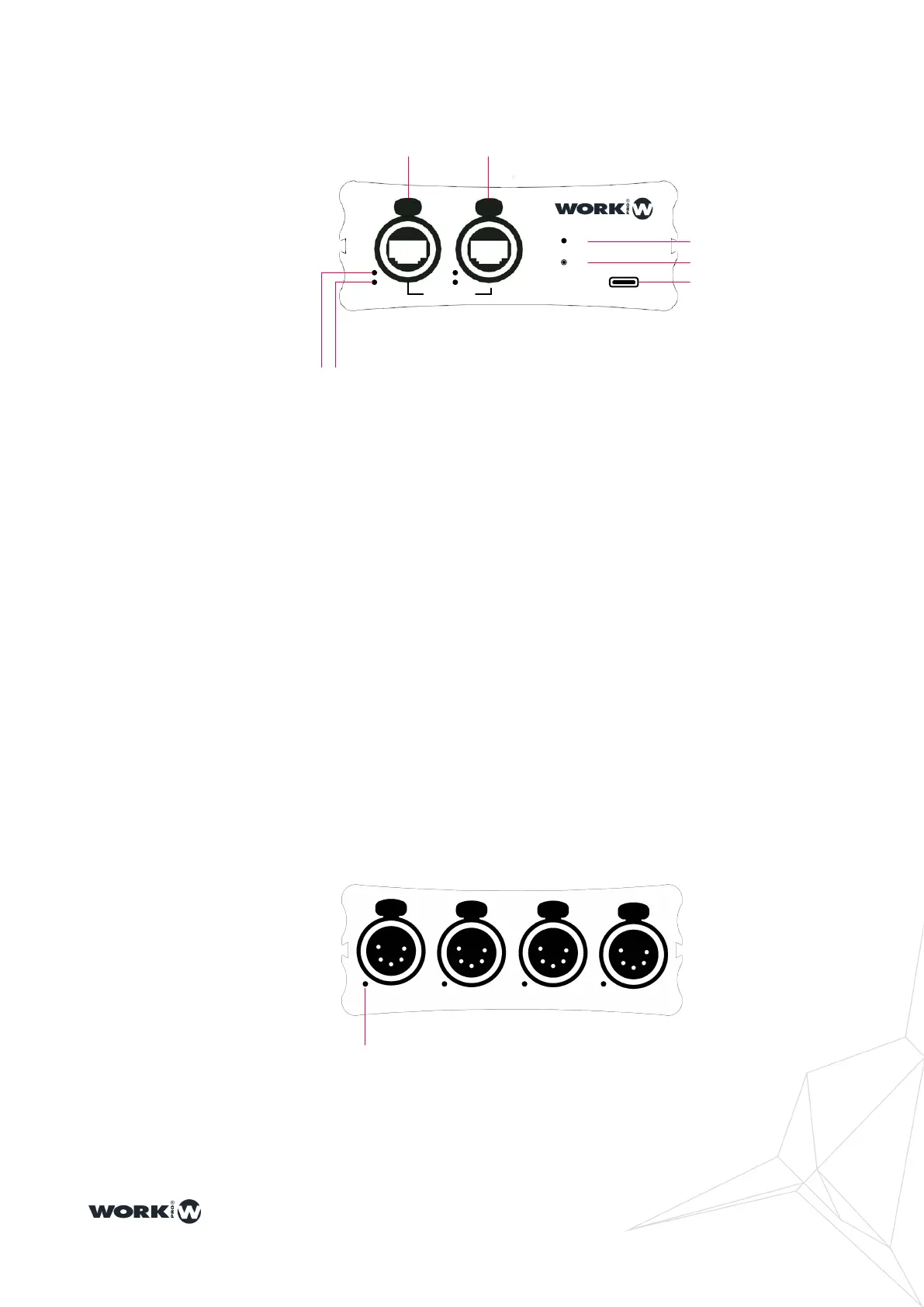

1: Activity Led, if you receive Art-Net or sACN the led will ash quickly.
2: Link Led, indicates that the ethernet port is connected to the network.
3: Ethernet port A, which is a Neutrik etherCON connector with which to connect the
node to the network.
4: Ethernet port B, which is a Neutrik etherCON connector to connect the node to
the network. The B port (unlike the A port) allows you to power the Node through
P.o.E.
5: Power LED, which is illuminated when the Node is connected to the USB-C
power or to a P.o.E switch .
6: Reset switch, allows you to return to the original factory conguration of the
device.
7: USB Type-C port, to supply power to the Node. It is possible to power it from the
USB port of any computer or laptop, or a USB-C power supply. The device is
supplied with a USB power supply and a USB Type A-C cable.
8: Activity LED, the LED will illuminate Green when it is assigned an active universe.
DMX-1 IN/OUT DMX-2 IN/OUT DMX-3 IN/OUT DMX-4 IN/OUT
