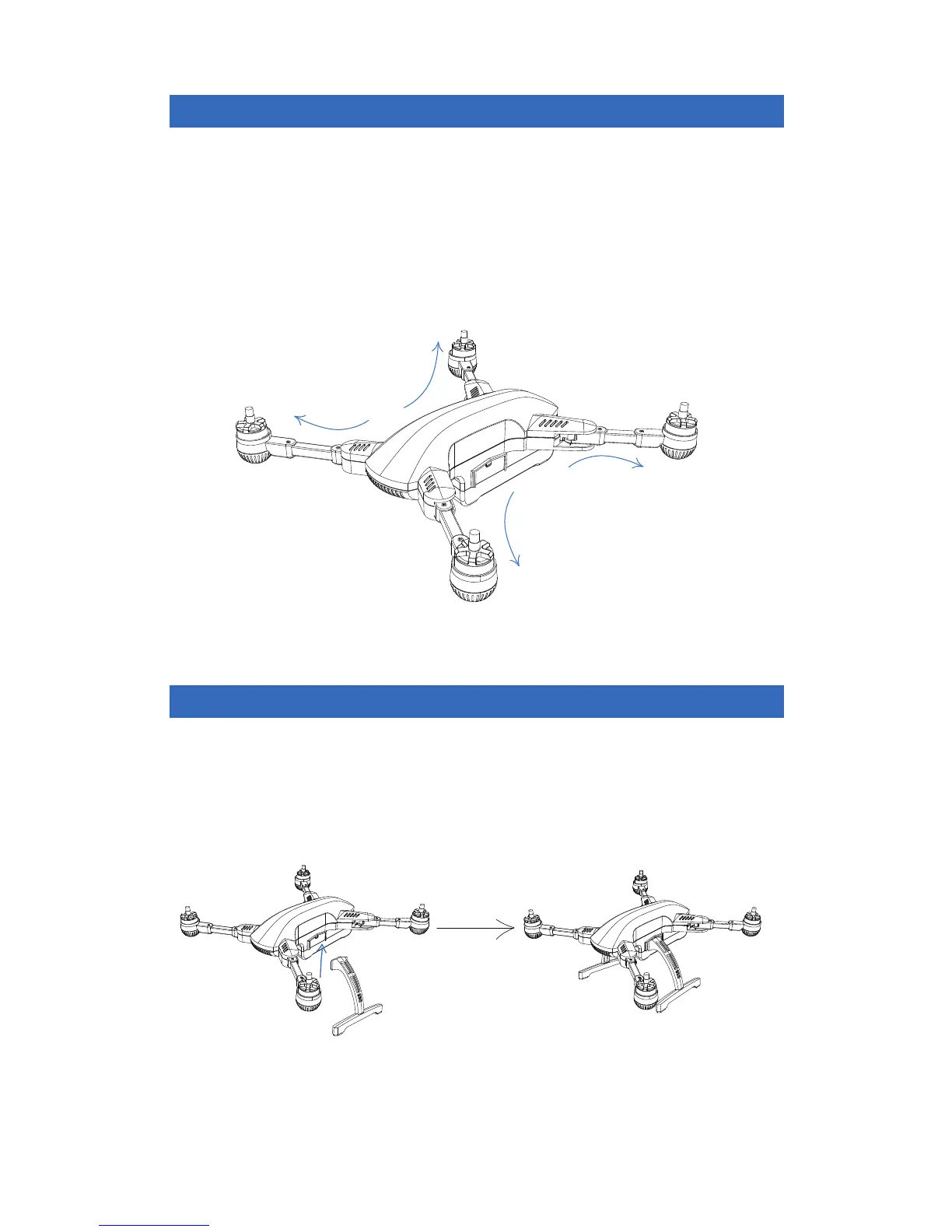

Unfolding the Recon
Landing Skid
Front Arm
Front Arm
Rear Arm
Attaching the Landing Skids
Rear Arm
Unfold the rear arms before unfolding the front arms. Each arm has a self locking
mechanism, slowly twist each arm outward till the arms are fully extended and click
into place.
To fold up Recon, firmly push the arms inward in the reverse order with the front
arms folding in first and the rear arms last. The self locking mechanism will release
each arm under pressure.
Match the landing skids with the skid mounts and push up into place.
To dismount the skids, pull them down smoothly till removed.
