• When retting the spool cap, keep all areas of the cap
and spool holder clean.
• Replace the cap, pressing rmly down towards
the spool holder to ensure cap is fully located into
position.
• Check that the cap is correctly tted by trying to
remove it without depressing the two latches.

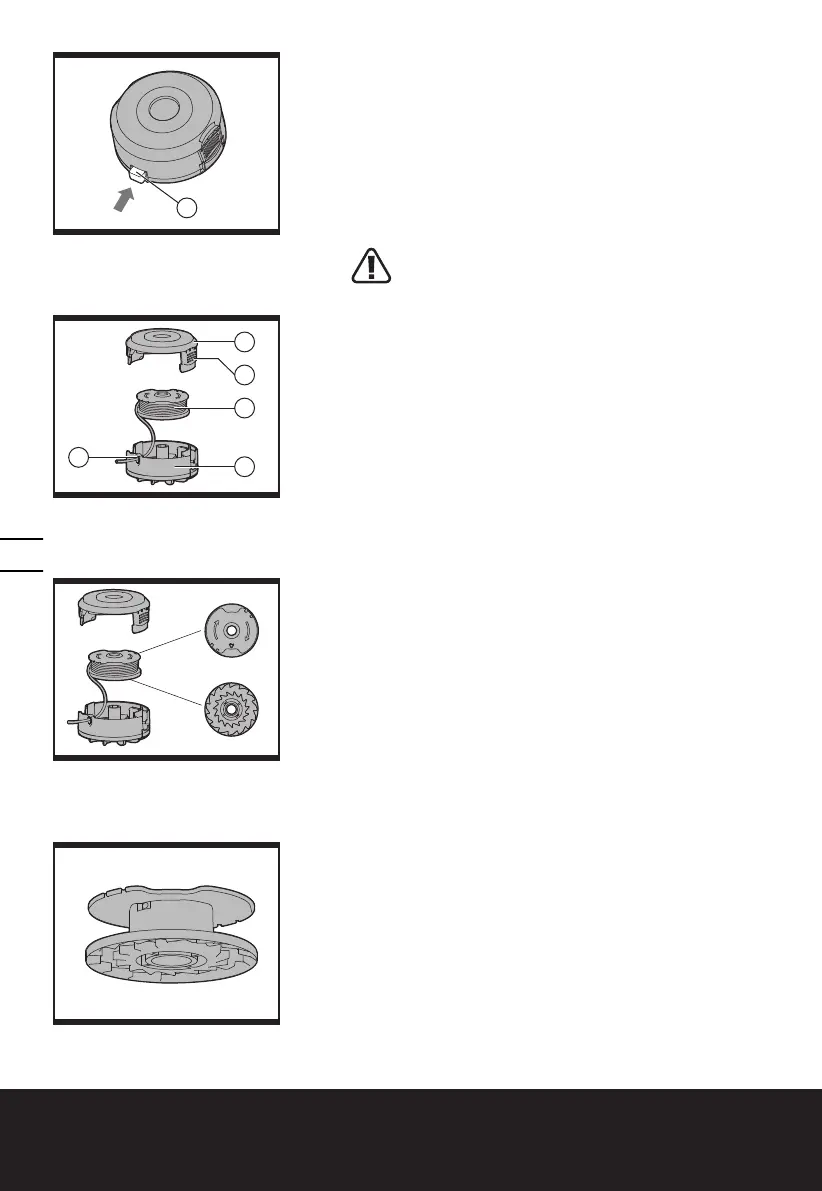

REPLACE THE TRIMMER LINE AND SPOOL (See
Fig. J).
ALWAYS REMOVE THE BATTERY PACK
BEFORE ADJUSTING THE TRIMMER HEAD
POSITION
• Remove Spool Cap Cover.
• For your convenience it is recommended you
buy replacement spools with the trimmer line
preinstalled.
• Remove the old Spool from Spool Holder. Clear any
broken line or cutting debris from the spool area.
• Pull the line from the new replacement Spool
through the eyelet of the Spool Holder.
• Place new Spool into the holder with the cut out
areas of the Spool facing inward or down.
When installed into the Spool Holder, the
smooth side of the Spool should be visible.
• Release line from cleat on the Spool.
• Ret the Spool Cap Cover.
TO MANUALLY WIND LINE
(See Fig. K1-K4)
Take approximately 6m of line. Insert 2mm of line into
the Spool holes and wind line in the direction of the
arrows on the top of the Spool.
Leave approximately 100mm of line unwound and place
into the cleat.
Ensure that the line is neatly coiled on the Spool. Failure
to do so will impair the efficiency of the automatic line
feed.
Then fit the Spool as described above in
“Replace the trimmer line and Spool”
RIGHT
WRONG
