2. GRASS COLLECTION BAG (4) ASSEMBLY

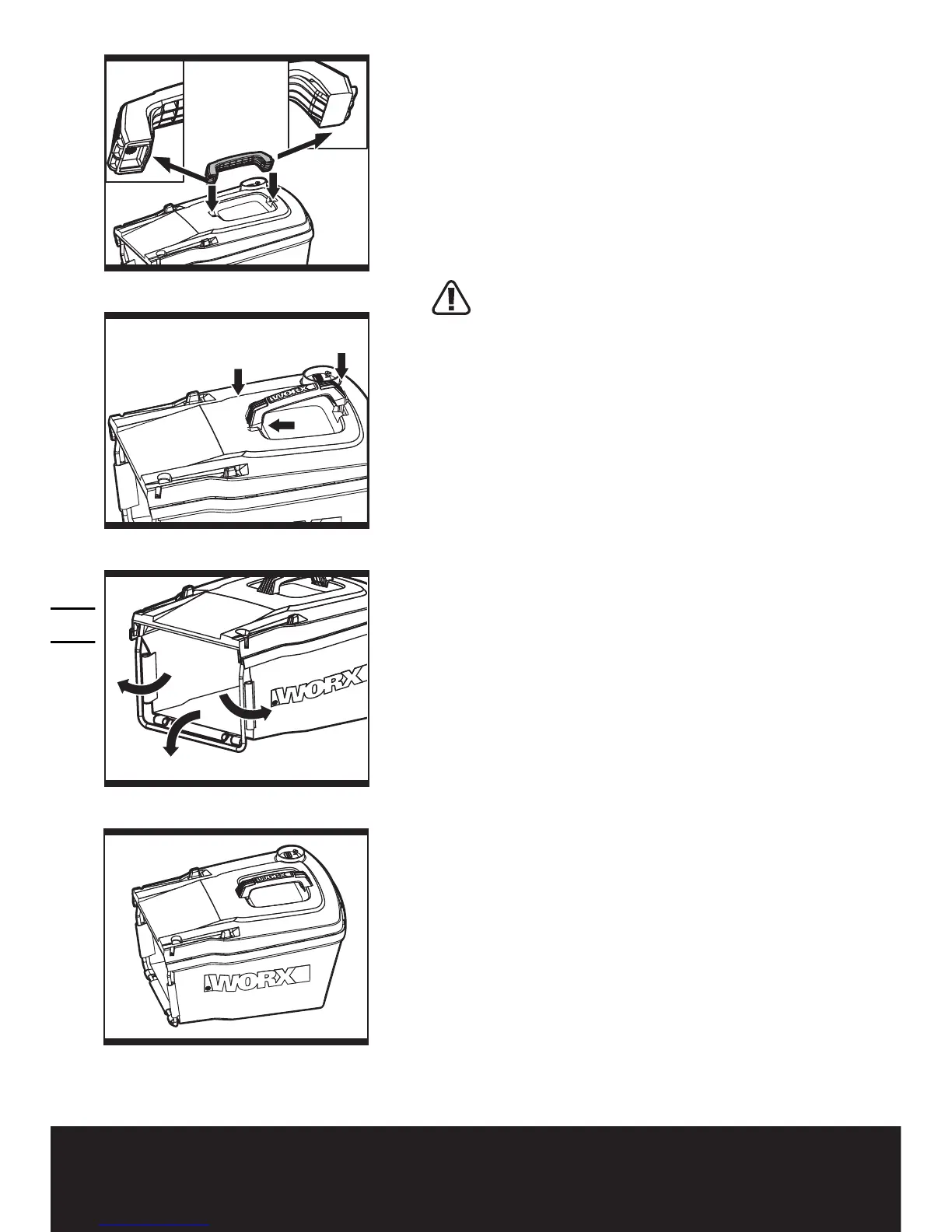

Connect the grass box handle to the box top as shown
in Fig. B1-B4.
Step 1. Press the front of the handle briefly. (See Fig.
B2)
Step 2. Then push it forward. (See Fig. B2)
Step 3. Push down the back of the handle. (See Fig.
B2)
Step 4. Finally, clip the plastic clips over the metal
frame. (See Fig. B3)
WARNING: Don’t fit the handle in reversed
direction. Fit the handle as shown in Fig
B1.
Front Part
Back Part
1
2
3
B1
B2
B3
B4
