Model 5210 Wall Box
1. Transformer
2. Spring, Yielding
3. Spring. Return
4. Spring, Cancel
5. Contact Plate Assembly
6. Coupling and Spring
7. Roll Pin
8. Motor
9. Switch, Slider
lo. Dptent Spring and Bracket
11. Switch. Key
12. Micro Switch
13. Arm, Micro Switch
4 Bracket and Pin Assembly
Page 30 Issue 1

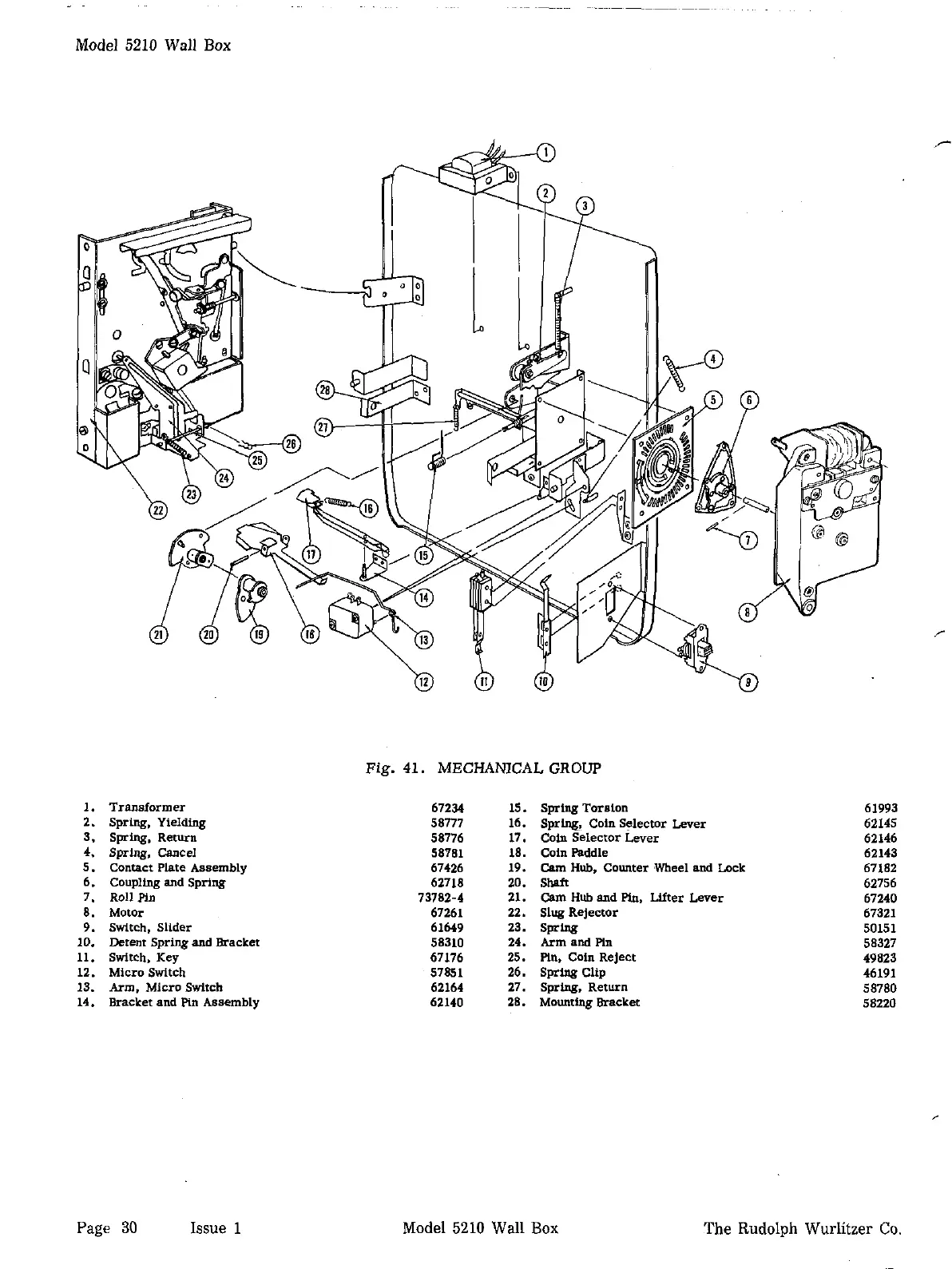

Fig. 41. MECHANICAL GROUP
15. Spring Tordon
16. Sprlng, Coin Selector Lever
17. Coin Selector Lever
18. Coin Paddle
19.
Cam Hub. Counter Wheel and Lock
20. Shaft
21. Cam Hub and Pln. Lifter Lever
22. Slug Rejector
23. Sprlng
24. Arm and Pin
25. Pin, Coin Reject
26. Spring Clip
27. Spring. Return
28. Mounting Bracket
