Model 2000 Steppe1
1. Contact Plate Assembly
2. Contact
Finger Assembly
3. Washer
4. Washer, Slotted
5. Washer, Tylon
6.
Spring, Dog
7. Dog
8. Fuatat, 3 Amp.
9. Fuse Soetet
The Rudolph Wurlitzer Co.

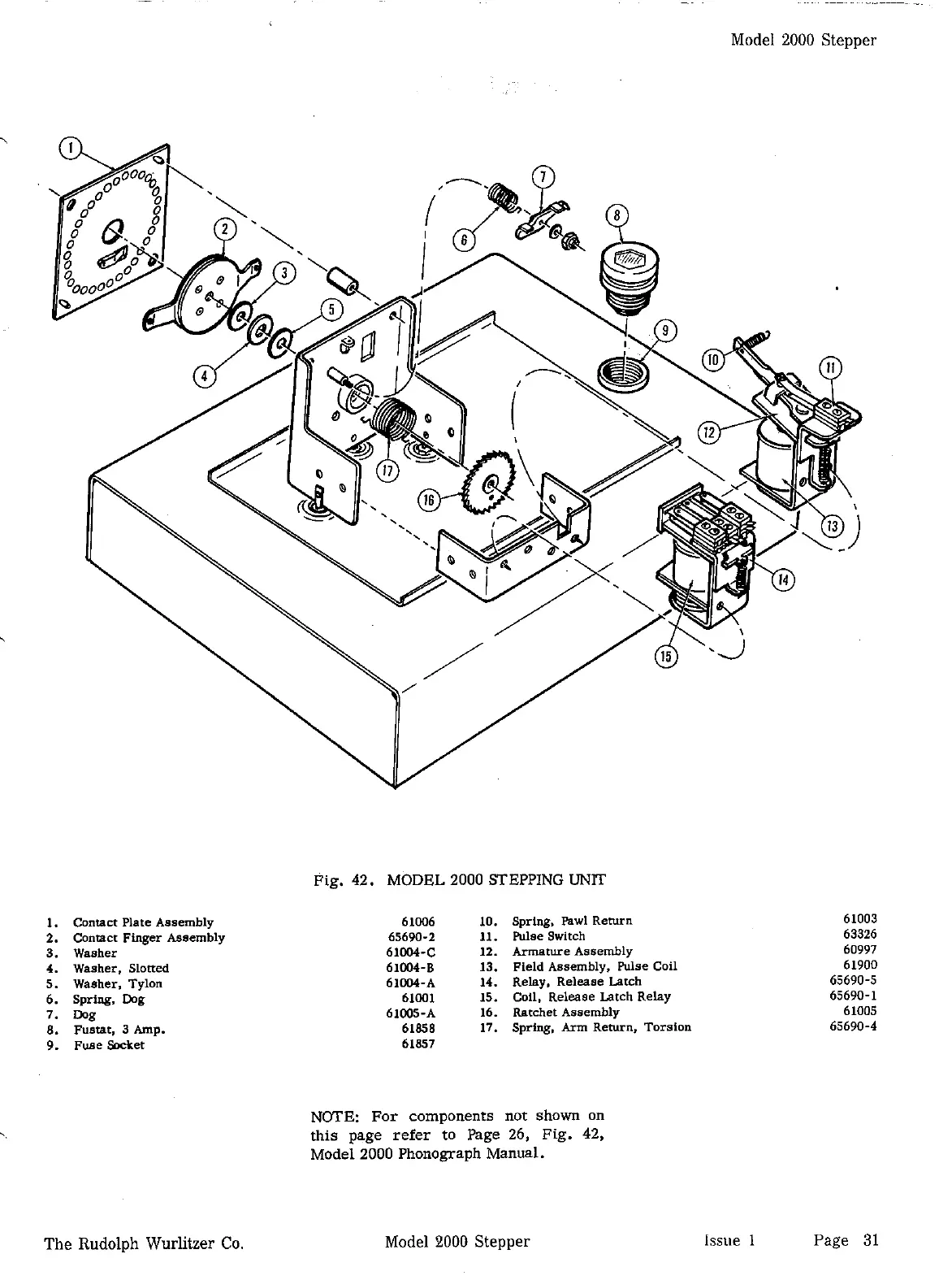

Fig. 42. MODEL 2000
STEPPING UNlT
61006 10. Sprlng, Wwl Return
65690-2
11. Pulse Switch
61W-C 12. Armature Assembly
61W-B 13. Field Assembly. Pulse Coil
61W-A 14. Relay. Release Latch
61001 15. Coll. Release Latch Relay
61005-A 16. Ratchet Assembly
61858 17.
Spring. Arm Return. Torsion
61857
NOTE: For components not shown on
this page refer to Page 26, Fig. 42,
Model 2000 Phonograph Manual.
Model
2000 Stepper
Issue
1 Page 31
