Würth 9501006290 - Circuit Diagram; Pneumatic Drawing

-
21
-
40612
JZ08001040612
Column module
4458
JZ08001021274
Lift cylinder cover
15392
JZ03001015392
Guide rail
4676
FJ04009004680
Hex socket head bolt M6×
20
22813
JZ09001022813
Slide seat casting
2799
FJ04009004744
Outer hex bolt M10*55
23132
JZ09001023132
Hexagonal cover
3249
FJ04008004444
Self-locking nut M10
4607
FJ04009004607
Pentagon handle
3276
EQ10004003262
Quick union
4458
FJ04008004458
Self-locking nut M6
22925
JZ09001023061
Complete rise-fall cylinder
20847
JZ07001020847
Tire lifting roller
5260
FJ04009004744
Outer hex bolt M10*55
4055
FJ04006004055
Hex screw M10*20
22626
FJ04008004444
Self-locking nut M10
3804
FJ04002003804
Washer Ø10*30*3
22926
JZ09001023018
Cylinder cover
21090
JZ08001021090
Straight arm assembly
4676
FJ04006004254
Cross head Screw M5X10
4458
FJ04008004458
nut M6
3601
FJ02010003601
Bearing
4685
FJ04009004685
Hex socket head bolt
M6*30
3288
FJ04002003915
Flat washer Ø8*30*3
23185
JZ09001023185
Tire pressing head
rotating shaft
3249
FJ04002003792
Spring washer Ø8
20926
JZ07001020926
Tire pressing head
(Upper)
22989
FJ04009004706
Hex socket head bolt M8x20
3920
FJ04002003920
lock washer
5120
FJ04006004197
Cross head screw M4*16
4523
FJ04008004523
round nut M27
22662
JZ02007011811
Tyre pressing roller
21141
JZ08001021141
Rotate arm rod
components 1
22886
JZ03001015661
Tyre pressing arm
21139
JZ08001021139
Rotate arm rod
components 2
2822
JZ08001021074
Column hose hood
4579
FJ04009004579
Hex socket head bolt
M10*25
4770
FJ04009004668
Hex socket head bolt M6×
10
3773
FJ04002003773
Spring washer Ø10
2788
EQ10004003254
Quick union 1/4-Ø6
3800
FJ04002003800
Flat washer Ø10*20*2
20299
FJ04006004200
cross head screw M4*30
20927
JZ07001020927
Tire pressing
head(bottom)
15354
FJ04008004455
Nut M4
21051
JZ08001021051
Controller sets
15353
EQ02011002888
Handle valve
4706
FJ04009004706
Hex socket head bolt
M8x20
4458
EQ04002002955
Muffler 1/8"
20904
JZ07001020904
Plastic friction disc
4676
JZ07001020877
Control valve protection
cover
3249
JZ07001020911
Adjust handle
-
22
-

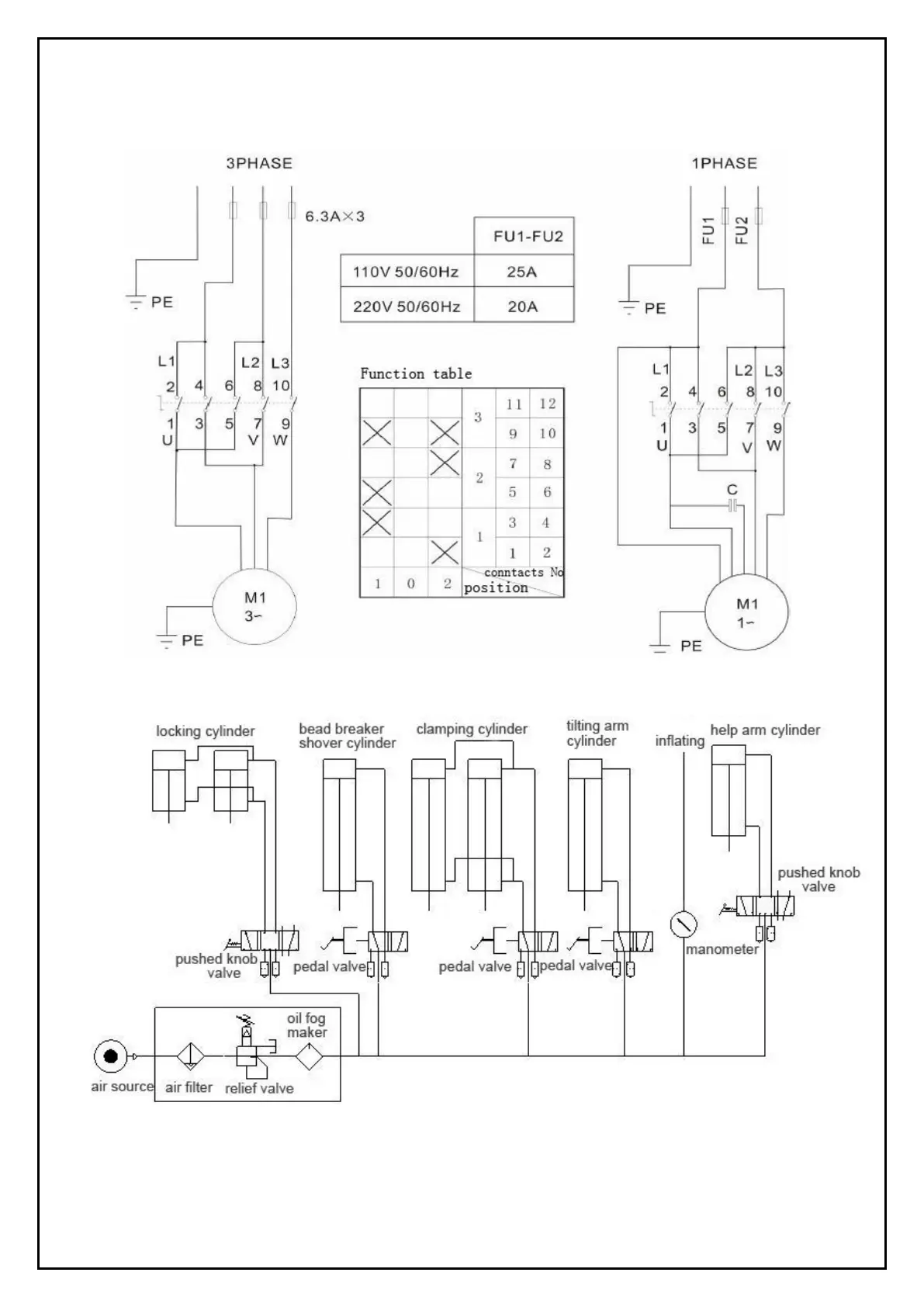

16. Circuit diagram:
17. Pneumatic drawing:
