3. Technical data
External locking rim dimensions
＂
(+Jaw's protector for 12”)
Internal locking rim dimensions
＂
（
＂
＂
110V (1ph)/ 220V (1ph)/ 380V (3ph)
Max. Rotating Torque (Turntable)
Noise Level <75dB
Remark:
Rim dimensions defined at above table are based on the iron wheel rims. Aluminum rims are thicker than the iron wheel rims, so here
above rim dimensions are just for the reference
.
Here
above machine versions can be equipped with Rapid Tire Inflation Device (client optional device), IT-suffix version,
accessory
details
can be found at
the
IT-suffix version
diagram
.
4. Transport:
When transporting, the machine should be with original package and placed according
to the mark on the package. For the
already packaged machine should be handled with a
corresponding tonnage forklift for loading and unloading. The location to
insert the fork feet shown as

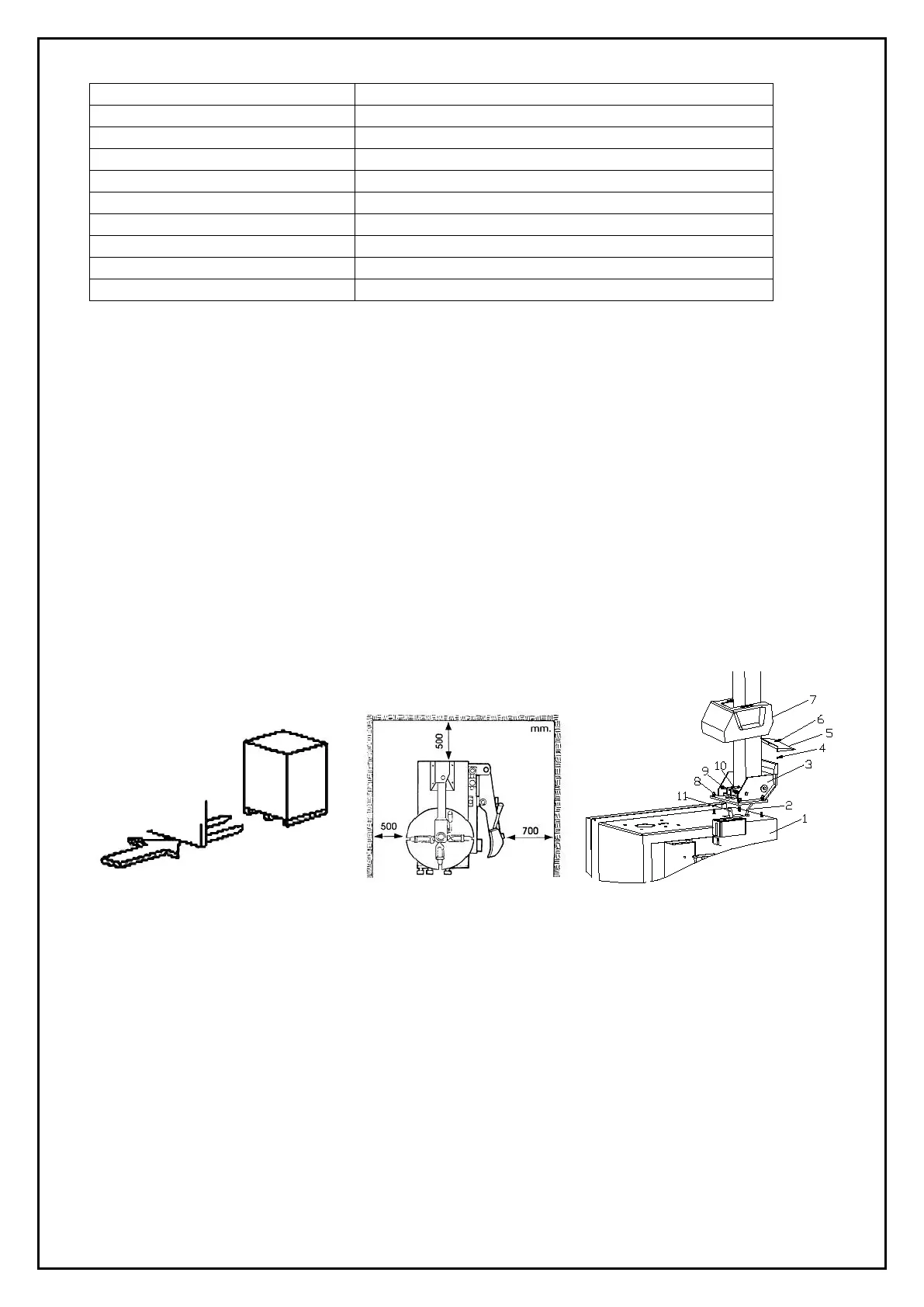

Fig 1
5. Unpacking & Inspection:
Pull out the nail which is nailed on the plate with tip jaw; unpack the carton and plastic cover. Check and make sure all parts
shown on the spare parts list are included. If any parts are missing or broken, please do not use the machine and contact the
manufactur
er or dealer ASAP.
6. Workplace requirements:
Choose workplace in compliance with safety regulations. Connect power supply and air source according to manual and
workplace must have good air condition; in order to make the machine run well, its workplace requires at least clear space
from each wall shown as Fig 2. If installing it outdoor, it must be protected by roof against rain and sunshine.
Warning: the machine with motor must not be operated in explosive atmosphere.
Fig 2
Fig 3
Fig 1
